CSD87381P: Package size

Kuramochi Tadahiko

Guru 28715 points

Part Number: CSD87381P

Hi,

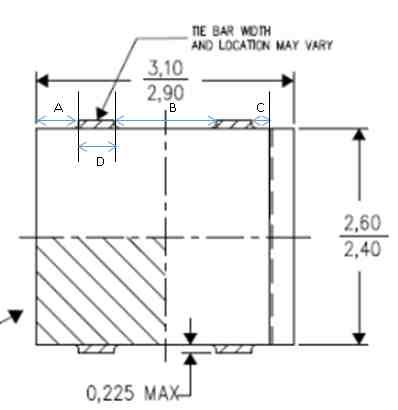

Could you tell me how long is length of following A, B, C, D for our reference?

Best Regards,

Kuramochi

over 7 years ago

0 Brett Barr1 over 7 years ago

TI__Mastermind 18200 points

Kuramochi-san,

I have reached out to our packaging engineers. I will get back to you soon.

0 Brett Barr1 over 7 years ago in reply to Brett Barr1

TI__Mastermind 18200 points

A=0.494 mm
D=0.412 mm
B=1.188 mm
C=0.219 mm

Nominal dimensions

0 Kuramochi Tadahiko over 7 years ago in reply to Brett Barr1

Guru 28715 points

Hi Barr-san,

The sum of these length is 2.725mm such as following.
→0.494mm+0.412mmx2+1.188mm+0.219mm=2.725mm
I think that this value should be over minimum length(=2.90mm).
Are these value correct?

Best Regards,
Kuramochi

0 Brett Barr1 over 7 years ago in reply to Kuramochi Tadahiko

TI__Mastermind 18200 points

Kuramochi-san,
No because the 2.9 to 3.1 length also includes the extended clip, which was not included in the A, B, C, and D dimensions you requested.
