TPS82084 PG pin got 20mA sink current during 2ms

Thomas Chang15933

Expert 4770 points

Other Parts Discussed in Thread: TPS82084, TUSB7320

Dear Team:

Our customer used TPS82840, and PG pin got 20mA sink current during 2ms.

Does it damage the chip?

Could you analyzer the condition?

over 7 years ago

0 Chris Glaser over 7 years ago

TI__Guru*** 142710 points

Please fix the typo in the part number. TPS82840 does not exist.

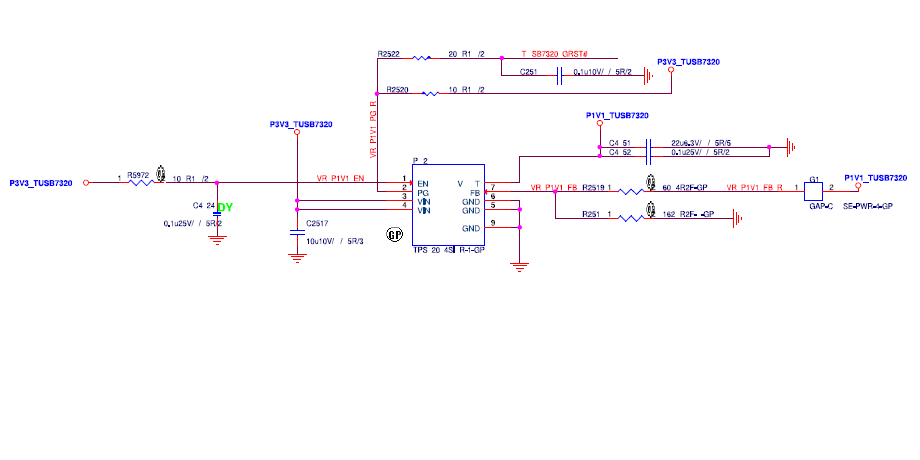

The schematic is a little blurry. Do you have a better one?

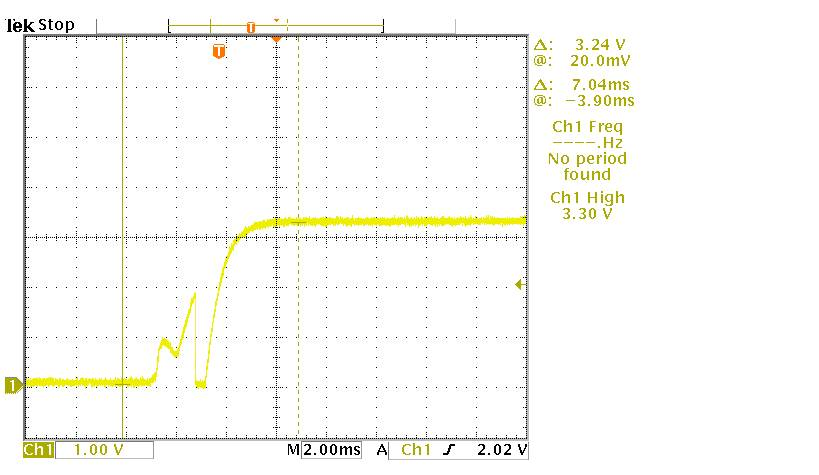

What does the waveform show?

0 Thomas Chang15933 over 7 years ago

TI__Expert 4770 points

Sorry about My trpo.
The correct P/N is TPS82084.

0 Chris Glaser over 7 years ago in reply to Thomas Chang15933

TI__Guru*** 142710 points

Thanks for clarifying the part number. Please edit the title of your post and reply to my other questions.

Yes, 20 mA is well-beyond the 1 mA abs max rating, so this cannot be recommended. Since the PG pin is an open drain output, you must limit the current into it. Typically, this means increasing the pull-up resistor value.

0 Thomas Chang15933 over 7 years ago in reply to Chris Glaser

TI__Expert 4770 points

Dear Chris:
OK, we know the limitation by datasheet.
But I think 1mA sink current is for continue operated, if it only 3mA sink current during 2ms , whether it damage the chip?
Because right now it is work around solution for TUSB7320 FA issue, that PG pin glitch is around 3 mA during 2ms.
So, could you help us to analyze this condition?

0 Chris Glaser over 7 years ago in reply to Thomas Chang15933

TI__Guru*** 142710 points

The abs max limits are for DC signals. 2 msec is DC. It's still not clear why you have this condition in your system. Can you share the proprietary details via email?

Power management

Power management forum

TPS82084 PG pin got 20mA sink current during 2ms
