FDC2212: Sensor configuration and shielding for non-conductive particle sensing

Gino Plantamura

Part Number: FDC2212

Which of the following configurations will work best at detecting non-conductive particles while also providing shielding from external interference? Is there a better configuration than either of these three for this application?

Thank you.

over 7 years ago

0 Yibo Yu over 7 years ago

TI__Expert 8050 points

Hi Gino,

Active shielding can maintain the sensitivity of the sensor. Grounding shielding is easier to implement, but usually reduces sensitivity.

Regards,

Yibo

0 Gino Plantamura over 7 years ago in reply to Yibo Yu

Prodigy 30 points

Is active shielding effective with the differential configuration as shown in the last of the three circuit diagrams in my original post?

0 Yibo Yu over 7 years ago in reply to Gino Plantamura

TI__Expert 8050 points

Hi Gino,

The two inputs are out of phase. If you use active shielding, the two sensors will need separate shields.

Regards,
Yibo

0 Gino Plantamura over 7 years ago in reply to Yibo Yu

Prodigy 30 points

Hi Yibo,

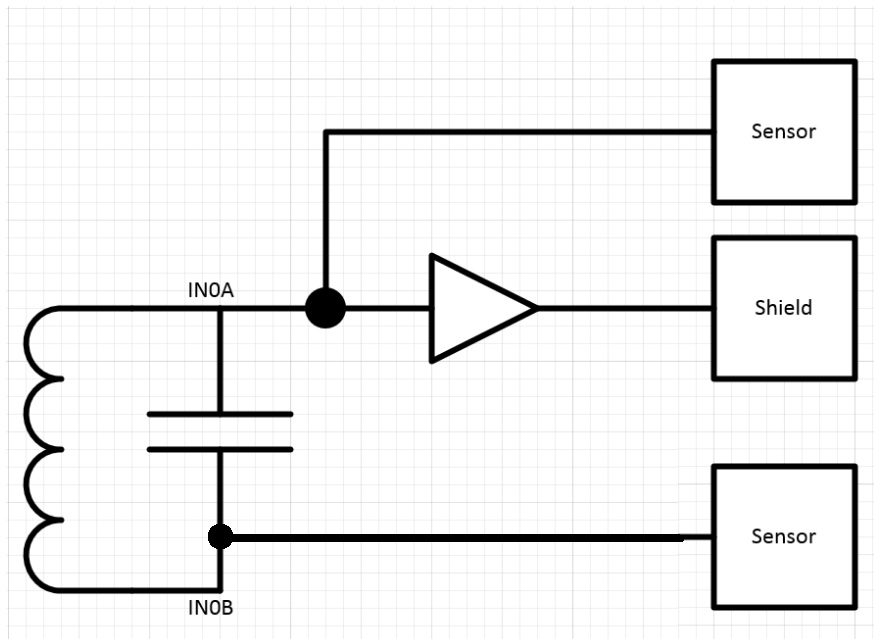

Please confirm that the diagram shown below is correct for active shielding of the differential configuration.

Thanks

Gino
