LDC1312: simulation for Angular Position Sensing

K.Yaita

Part Number: LDC1312
Other Parts Discussed in Thread: LDC1314,

Hi Team,

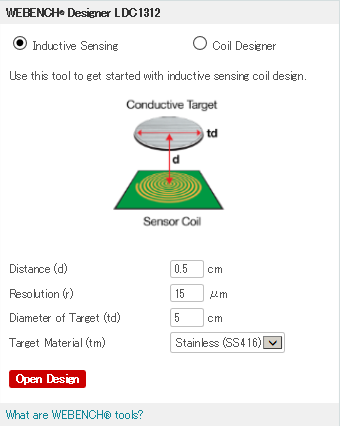

I think WEBENCH (Inductive sensing) is useful if the application is proximity sensing.

Is there any simulation tool or design guide for the following Angular Position Sensing?

I understood there is a reference design for the application but would like to know above.
http://www.tij.co.jp/jp/lit/ug/tidu953/tidu953.pdf

Best Regards,
Yaita / Japan disty

over 7 years ago

0 Chris Oberhauser66 over 7 years ago

TI__Genius 14270 points

Hello Yaita,

At this time we do not have lateral target movement simulation tools. This is much more difficult than axial sensing, as the target profile can be very different.

Regards,

ChrisO

0 K.Yaita over 7 years ago in reply to Chris Oberhauser66

Guru 29690 points

Hi Chris-san,

Thank you for your support.
I understood there isn't simulation tool for the solution.

Is there any design guide except the following reference design?
http://www.tij.co.jp/jp/lit/ug/tidu953/tidu953.pdf

Best Regards,
Yaita

0 Chris Oberhauser66 over 7 years ago in reply to K.Yaita

TI__Genius 14270 points

Hello Yaita-san,

The link you have is the most detailed and relevant material to use for a rotation sensor based on the LDC1314.

Regards,

ChrisO

0 K.Yaita over 6 years ago in reply to Chris Oberhauser66

Guru 29690 points

Hi Chris-san,

Thank you for your reply.

I got the system structure that my customer is considering to use LDC1312 for angular position sensing .
I would like to send it in offline and have your comment.

Could you please send e-mail to the following address?
yaita-k@clv.macnica.co.jp

Your support would be appreciated.

Best Regards,
Yaita

0 K.Yaita over 6 years ago in reply to K.Yaita

Guru 29690 points

Hi Chris-san,

I got e-mail from your team in the following thread.
https://e2e.ti.com/support/sensor/inductive-sensing/f/938/p/591003/2172484#2172484
So, please ignore this requirement.
Thank you for your cooperation.

Best Regards,
Yaita
