AWR1642BOOST: AWR1642BOOST+DEVPACK SPI CONNECTION ERROR

naz alpaslan

Part Number: AWR1642BOOST
Other Parts Discussed in Thread: UNIFLASH

Hi,

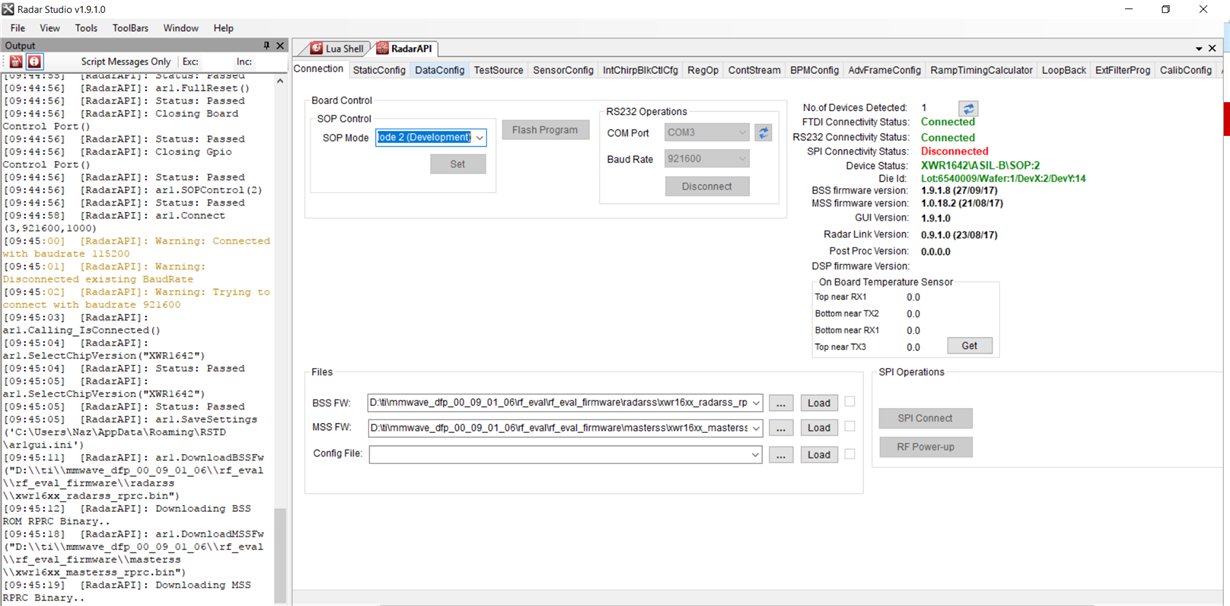

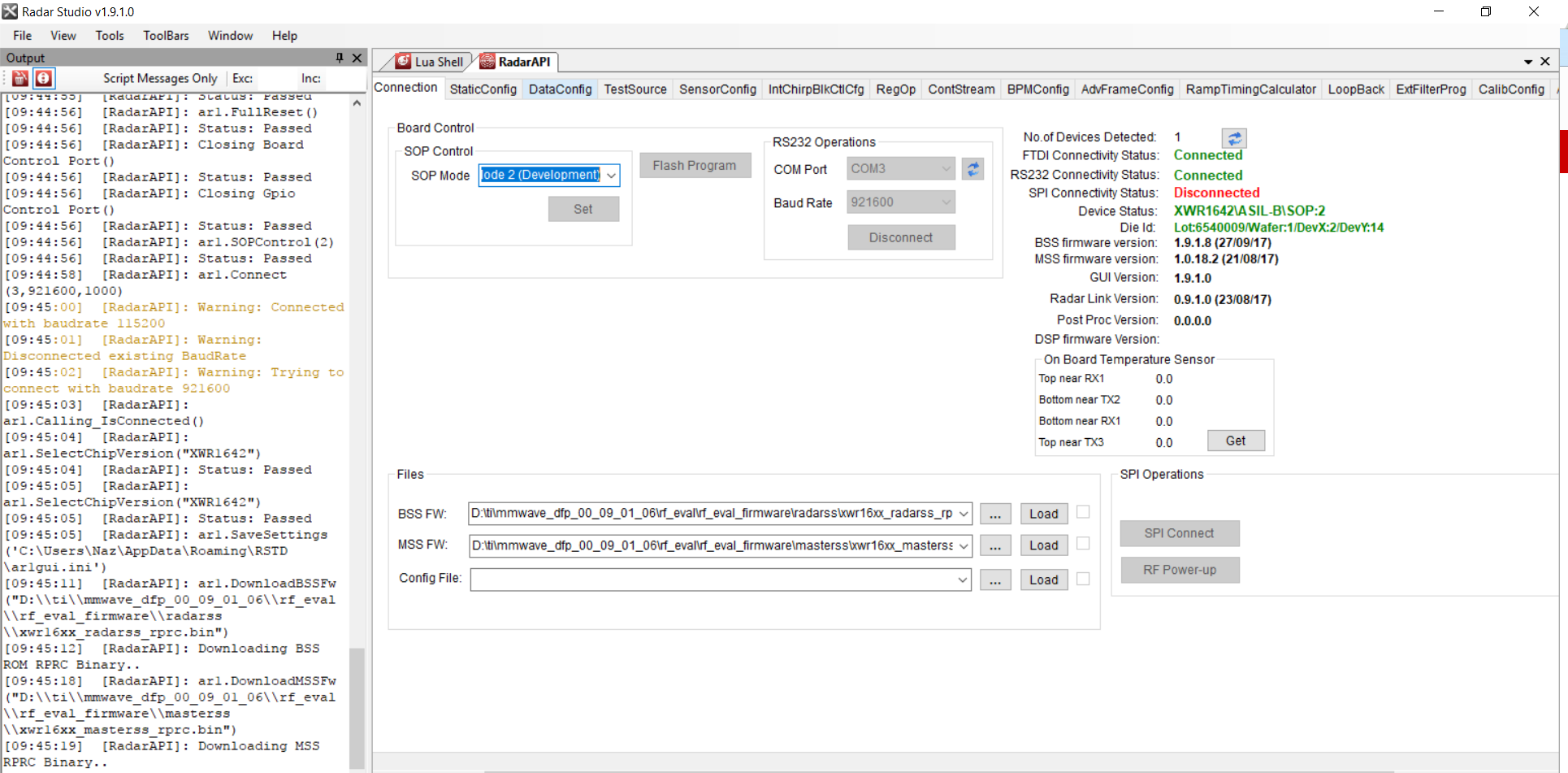

I have AWR1642BOOST + MMWAVE_DEVPACK. I am using Radar Studio application. But i could not be SPI connection between the PC and AWR1642BOOST + MMWAVE_DEVPACK. FTDI and RS232 connection are successfully. Radar Studio application image is below. How can i connect SPI?

Best Regards

Nazct SPI?

over 6 years ago

0 Raghunandan Kamath over 6 years ago

TI__Mastermind 22155 points

Hello Naz,
It looks like your FW download is also not successful. Also looks like you are working in SOP2 mode.

When working in SOP 2(Development mode), there should be no functional firmware in the device. Please erase the flash using UNIFLASH before using the device in SOP2 mode.

Once this is done , follow the procedure as mentioned in the RadarStudio User Guide to download the firmware and configure the device.

Thanks,
Raghu

0 naz alpaslan over 6 years ago in reply to Raghunandan Kamath

Intellectual 270 points

Hi Raghu,
I did the following in order:

1- I have erased the flash using the Uniflash application.
2- I opened the radar studio and connected the RS232 and FTDI status.
3- I tried the SPI connection.But it didn't happen again.

What is the mistake?

Thank you for your help.

0 naz alpaslan over 6 years ago in reply to naz alpaslan

Intellectual 270 points

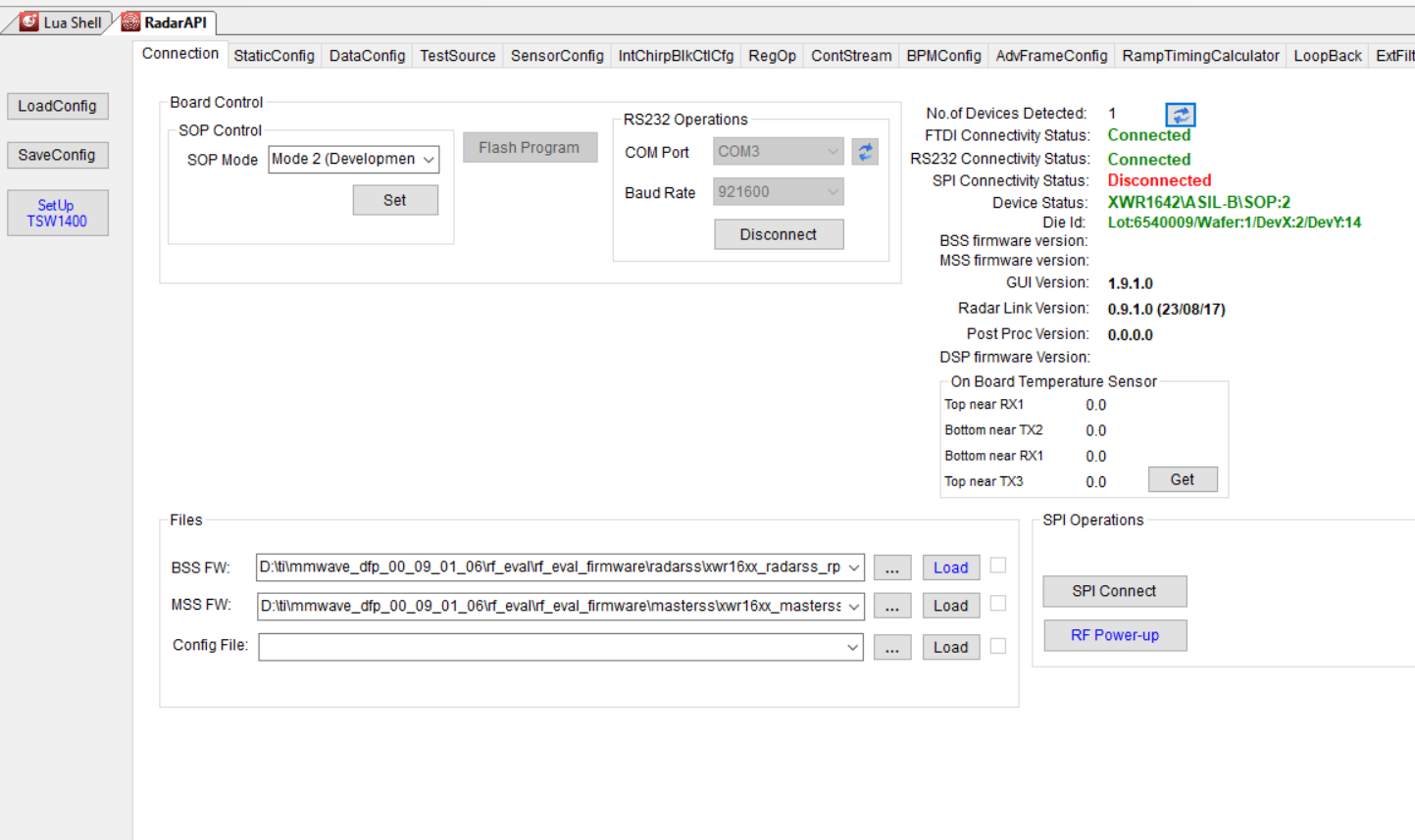

I saw this screenshot when i had pressed the SPI Connect.

0 naz alpaslan over 6 years ago in reply to naz alpaslan

Intellectual 270 points

This problem stil not solve!!

0 Raghunandan Kamath over 6 years ago in reply to naz alpaslan

TI__Mastermind 22155 points

Hello Naz,

In the RadarStudio log that you sent , we do not see the command for SPI connect sent out.
Was your log shared after doing the "SPI Connect" ?

-Raghu
