FDC2214: Sensor Plate

Janine Lin

Expert 2190 points

Part Number: FDC2214

Dear Bala,

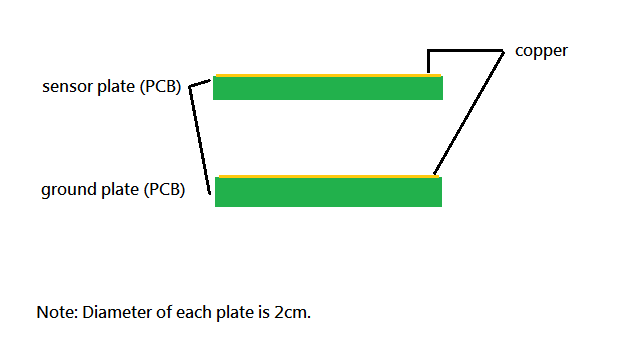

Does each electrode are two sided? This figure from design tool.

over 5 years ago

0 Bala Ravi over 5 years ago

TI__Expert 6625 points

Hi Janine,
The sensor above is one sided, it can sense stuff from the sides and top but nothing should be picked up from the ground plane side.

Best Regards,
Bala Ravi

Please click "This resolved my issue" button if this post answers your question

0 Janine Lin over 5 years ago in reply to Bala Ravi

Expert 2190 points

Thank you Bala.

Do you think our sensor head design is correct? Figure shown from my post "FDC2214: Proximity Sensing".

0 Bala Ravi over 5 years ago in reply to Janine Lin

TI__Expert 6625 points

Hi Janine,
Your sensor design looks good to me.

Best Regards,
Bala Ravi

0 Janine Lin over 5 years ago in reply to Bala Ravi

Expert 2190 points

Thank you Bala.

We come up with this design, has 2 touch buttons on each side and proximity sensor at the center. The problem is, when i touch the buttons, the proximity sensor can detect also (vice-versa).

Is there a solution for this problem?

0 Bala Ravi over 5 years ago in reply to Janine Lin

TI__Expert 6625 points

Hi Janine,
As mentioned earlier the sensor is going to detect all the activities on the sensor plate side (top). One solution that I can think of is to have sensor plates on both sides (top and bottom), instead of sensor plate on top and ground plate on bottom. This can also help improve your sensor sensitivity. This way you can isolate the sensor head and the touch buttons (top and bottom).

Best Regards,
Bala Ravi

Please click "This resolved my issue" button if this post answers your question

0 Janine Lin over 5 years ago in reply to Bala Ravi

Expert 2190 points

Dear Bala

We can't put the sensor at the bottom side of the PCB. Bottom side where components are placed. The pink one is our sensor head and yellow one is copper ring (no connection). Sorry for the confusion.

0 Bala Ravi over 5 years ago in reply to Janine Lin

TI__Expert 6625 points

Hi Janine,
In that case, you can either move the red touch buttons further away from the sensor head or you can decrease the sensor head's size which will decrease its sensitivity. I believe we also have a private message with related questions going on, so I will go ahead and close this thread.

Best Regards,
Bala Ravi

0 Janine Lin over 5 years ago in reply to Bala Ravi

Expert 2190 points

Ok Bala. Thank u.
