Hi Team,
There is a confusing explanation about the ONOFF logic in its datasheet, so please check it just in case.
Is "NO to COM" path shorted when high logic is applied to IN pin? Or Open？

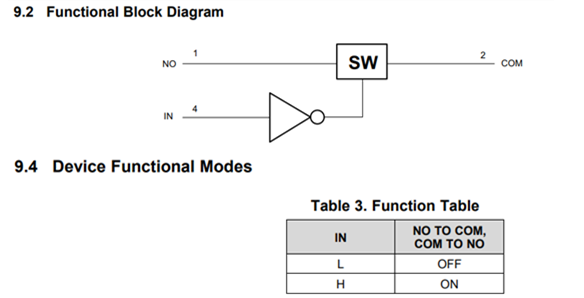

I can find following table on the datasheet but I didn't make sure what ON/OFF mean. Which is Open mean?
Also, Let me know if you have more recommended device than TS5A3166-Q1 for now(Q1 grate is must requirement).
Regards,
Takashi Onawa
Hi Takashi,
As Clemen's mentioned, In the TS5A3166-Q1 function table:
When logic pin "IN" is at "L" (Low), NO to COM or COM to NO path is OFF - referring to "switch OFF state" - it means the path from Input to Output is not connected/open.
When logic pin "IN" is at "H" (High), NO to COM or COM to NO path is ON, referring to "switch ON state" , Signal path is connected/closed.
The device search link shows the following Q1 parts in similar configuration - please feel free to reach out if you have any questions on these.
regards,
Saminah
Hi Clemen and Saminah,
Thanks for your prompt response and I understood how it works.
->Saminah,
In particular, the NOT logic in this block diagram is misleading.
Please improve it in next rev of datasheet to make it easier to understand.
Regards,
Takashi Onawa
