CCS/PGA900: Why there is no same setting column like in the PGA900 software guide?

hao Su

Intellectual 520 points

Part Number: PGA900

Tool/software: Code Composer Studio

Hi :

In PGA900 software guide, it said that should setting JTAG like before

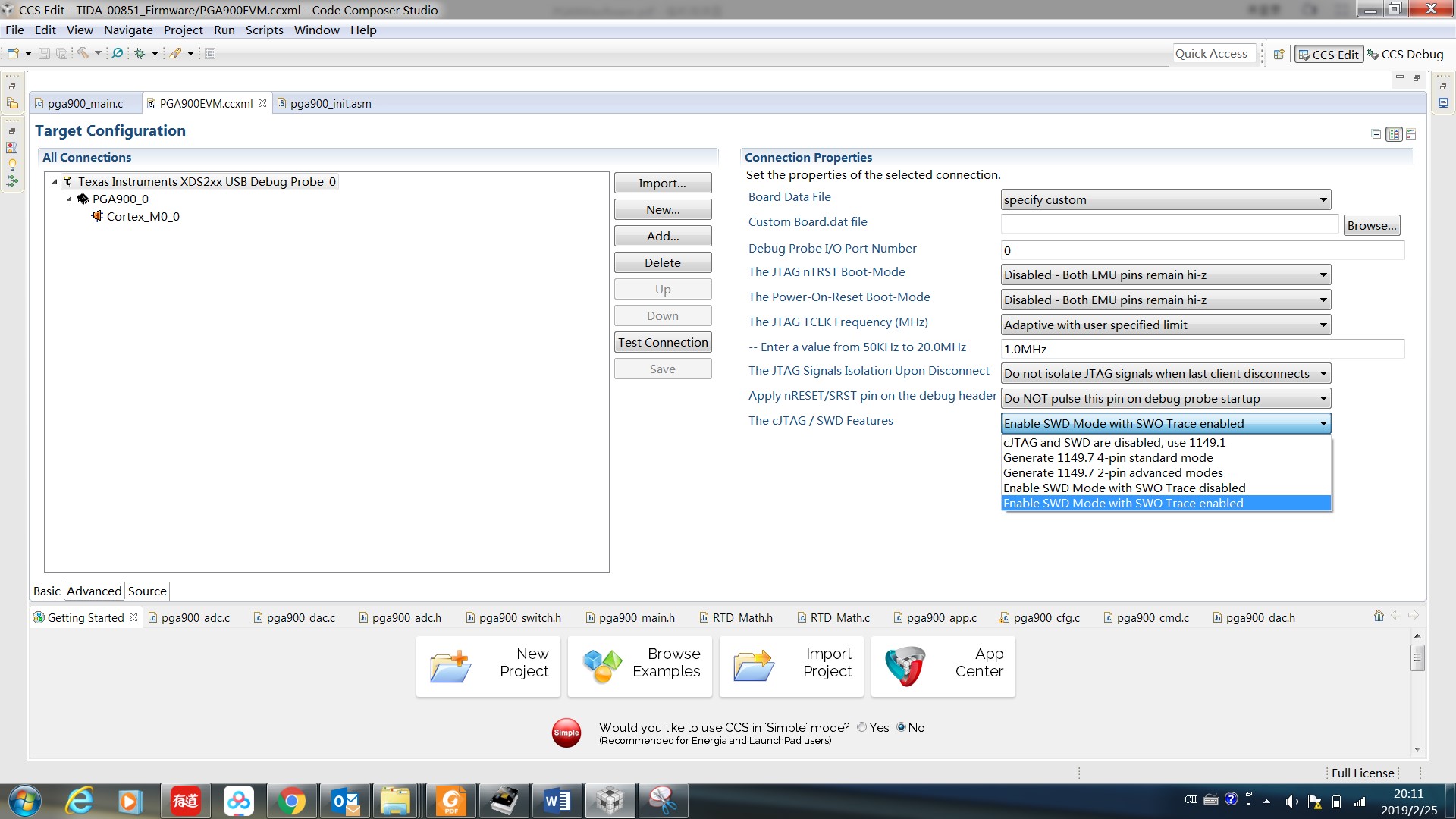

But in ccs ,there is no that iteam, so choose "enable SWD mode with swo trace enable" and test connection pass.

But it cannot debug now, How can i solve this issue？

over 5 years ago

0 desouza over 5 years ago

TI__Guru**** 168367 points

Hi,

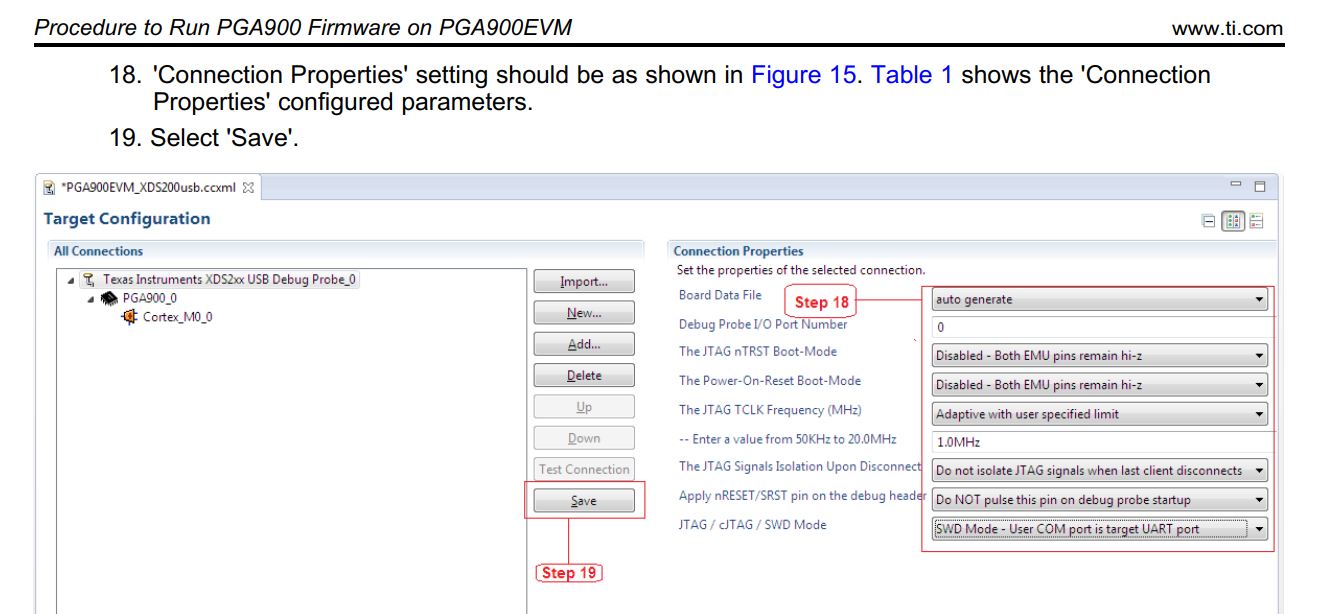

In your second screenshot, the setting "Board Data File" is incorrect. It should be set to "auto generate".

However, since you were able to connect, I imagine these changes were not saved and the connection steps shown in the third screenshot wouldn't happen..

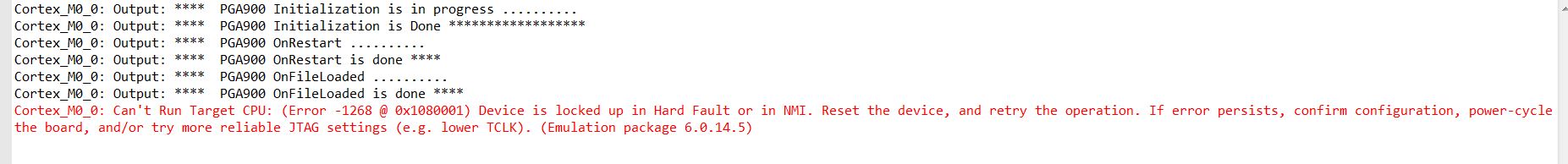

The sequence of messages shown indicate the file was loaded to flash and, after started running, it caused the core to halt. The root causes can certainly vary greatly, and a few references can be helpful.

http://infocenter.arm.com/help/index.jsp?topic=/com.arm.doc.faqs/ka12545.html

There is also a document mentioned in the e2e thread below (it discusses a different device, but some options are valid).

https://e2e.ti.com/support/microcontrollers/other/f/908/p/767898/2839048#2839048

In this particular case, please double-check your own code and see if you can overcome this issue.

Hope this helps,

Rafael
