WEBENCH® Tools: Time axis labels misleading during simulation

Richard Price

Intellectual 280 points

Tool/software: WEBENCH® Design Tools

I'm using the HTML version of WEBENCH on this shared design:

webench.ti.com/.../SDP.cgi

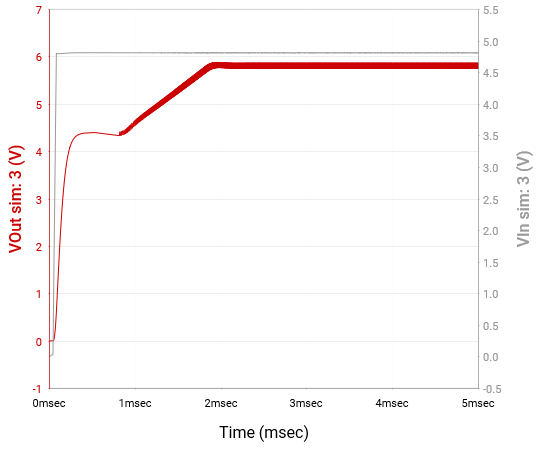

The regulator starts up in just under 2ms, as shown by this finished result from the Startup job:

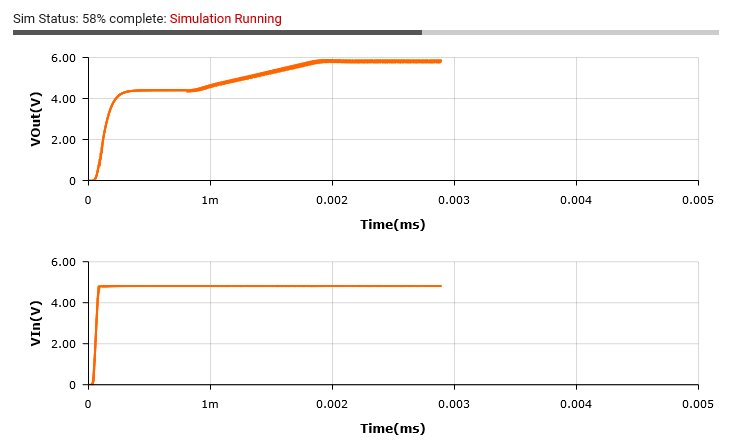

However, during the simulation the time axis is shown differently:

This is misleading because it suggests that the regulator starts up in just under 0.002ms i.e. 2µs.

over 5 years ago

0 Amod Vaze over 5 years ago

TI__Mastermind 21755 points

Thanks again Richard. The streaming waveform issue you are pointing out is a bug. I will share the timeline for this fix with you soon.

Regards,
Amod

0 Harish K R over 5 years ago in reply to Amod Vaze

TI__Intellectual 2320 points

Hi Richard,

We are working on fixing streaming waveform issue. We will keep you updated on the same. Thanks for your patience.

Best Regards,
Harish

0 Harish K R over 5 years ago in reply to Harish K R

TI__Intellectual 2320 points

Hi Richard,

You can expect the fix for time axis to be available on ti.com by 17th April. I shall update you once it is available on ti.com.

Thanks & Regards,
Harish

0 Harish K R over 5 years ago in reply to Harish K R

TI__Intellectual 2320 points

Hi Richard,

Thanks for your feedback.

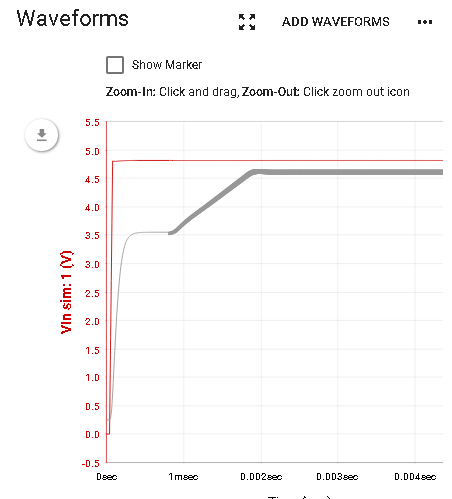

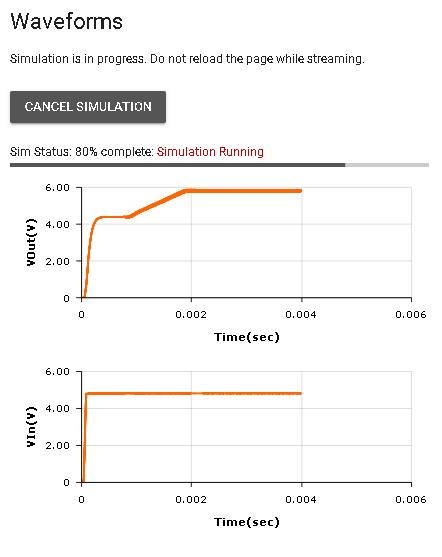

The streaming waveform time axis issue is fixed.

However there seems to be issue w.r.t formatting of time axis once the simulation is complete. This has been reported to concerned team.

Thanks & Regards,

Harish
