Part Number: LM5117
Tool/software: WEBENCH® Design Tools
Hello,I am trying to open this PCB layout in Eagle that was made in webbench. However, when I go to open either the board or schematic I receive an error in eagle. Upon opening the sch and brd files in a text editor, it seems they are not separated by rows and every command is placed on the first row in one large column. WBDesign2_CadSoftEAGLE.zip

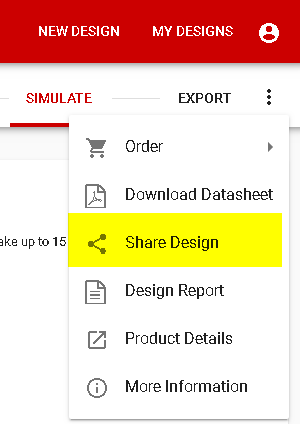

Could you please share the WEBENCH design using 'Share Design' Option.
Thanks & Regards,Praveen B
We are glad that we were able to resolve this issue, and will now proceed to close this thread.
If you have further questions related to this thread, you may click "Ask a related question" below. The newly created question will be automatically linked to this question.
In reply to Praveen Badiger:
Here it is webench.ti.com/.../SDP.cgi
In reply to Jason Galtieri:
We are able to reproduce the issue and the EAGLE export is failing because of two reasons :
We will let you know once the issue is fixed on ti.com
This fixed the issue and I was able to load the board and schematic. The schematic was full was "This net has fallen apart" errors, which seem to be from some outdated copy/paste Eagle method, so I had to redraw all the nets on the schematic Alot of the parts were copied as well so instead of having "GND" I had "GND1", "GND2" etc which eagle interprets as different things.
