Using two SPI simultaneously in CC2640

Hello Stanislav,

It is possible to use both simultaneously but there is currently a bug in the driver wrt power management. If one transaction finishes at the same time as the other one is ongoing, the device might enter Standby mode causing the ongoing transaction to stop.
This will be fixed in the TI RTOS version coming out next week.

Regards,
Svend

Hello Svend,

I want just to get more accurate information.

Is it possible for DMA (two independent channels)  to get information from two SPI-buffers (SPI0 and SPI1) and to put it into memory (in two different memory location) simultaneously?

I can't get this mode.

Yes this should be fully possible, they are using two different DMA channels.

Dear Svend!

Could you give me an code example (or link to it), that showing correct implementation two independent DMA-channels for copy data from SPI-buffers to memory?

You set up the second one just like you set up the first one except you run SPI_open with a different argument.

Please see the SPI DMA driver documentation. (tirtos_installation_path\docs\docs_overview.html -> TI-RTOS Driver Runtime APIs (doxygen) -> SPIDMACC26XX.h

I've made changes in my project to add new version of TI RTOS (2.15.00.17 spi bug should be fixed?).

Unfortunately, the two SPIs are still not working.

In following code all works fine only if one of SPI is disabled. With both of them four zero bytes included in first AUX spi reading data in each transfer.

What is wrong in my code?

board.h

	#define Board_FLASH_MISO                     IOID_2
	#define Board_FLASH_MOSI                     IOID_10
	#define Board_FLASH_CLK                      IOID_12
	#define Board_Flash_CSN                     IOID_3
	#define Board_CS_MOTOR                      IOID_11

	#define Board_DSP_MISO                     IOID_13
	#define Board_DSP_MOSI                     IOID_5
	#define Board_DSP_CLK                      IOID_8

#define Board_SPI0                  CC2650_DSP_SPI
#define Board_SPI1                  CC2650_FLASH_SPI

typedef enum CC2650_SPIName {
    CC2650_DSP_SPI = 0,
    CC2650_FLASH_SPI,
    CC2650_SPICOUNT
} CC2650_SPIName;


typedef enum CC2650_UdmaName {
    CC2650_UDMA0 = 0,
    CC2650_UDMACOUNT
} CC2650_UdmaName;



board.c

/* Include drivers */
#include <ti/drivers/dma/UDMACC26XX.h>

/* UDMA objects */
UDMACC26XX_Object udmaObjects[CC2650_UDMACOUNT];

/* UDMA configuration structure */
const UDMACC26XX_HWAttrs udmaHWAttrs[CC2650_UDMACOUNT] = {
    {
        .baseAddr    = UDMA0_BASE,
        .powerMngrId = PowerCC26XX_PERIPH_UDMA,
        .intNum      = INT_DMA_ERR,
        .intPriority = ~0
    }
};

/* UDMA configuration structure */
const UDMACC26XX_Config UDMACC26XX_config[] = {
    {
         .object  = &udmaObjects[0],
         .hwAttrs = &udmaHWAttrs[0]
    },
    {NULL, NULL}
};

#include <ti/drivers/spi/SPICC26XXDMA.h>

/* SPI objects */
SPICC26XXDMA_Object spiCC26XXDMAObjects[CC2650_SPICOUNT];

/* SPI configuration structure, describing which pins are to be used */
const SPICC26XXDMA_HWAttrsV1 spiCC26XXDMAHWAttrs[CC2650_SPICOUNT] = {
    {
        .baseAddr           = SSI0_BASE,
        .intNum             = INT_SSI0_COMB,
        .intPriority        = ~0,
        .swiPriority        = 0,
        .powerMngrId        = PowerCC26XX_PERIPH_SSI0,
        .defaultTxBufValue  = 0,
        .rxChannelBitMask   = 1<<UDMA_CHAN_SSI0_RX,
        .txChannelBitMask   = 1<<UDMA_CHAN_SSI0_TX,
        .mosiPin 						= Board_DSP_MOSI,
        .misoPin 						= Board_DSP_MISO,
        .clkPin 						= Board_DSP_CLK,
        .csnPin 						= PIN_UNASSIGNED
		},
#if BOARD_VER > 1
    {
        .baseAddr           = SSI1_BASE,
        .intNum             = INT_SSI1_COMB,
        .intPriority        = ~0,
        .swiPriority        = 0,
        .powerMngrId        = PowerCC26XX_PERIPH_SSI1,
        .defaultTxBufValue  = 0,
        .rxChannelBitMask   = 1<<UDMA_CHAN_SSI1_RX,
        .txChannelBitMask   = 1<<UDMA_CHAN_SSI1_TX,
        .mosiPin 						= Board_FLASH_MOSI,
        .misoPin 						= Board_FLASH_MISO,
        .clkPin 						= Board_FLASH_CLK,
        .csnPin 						= PIN_UNASSIGNED
    }
#endif
};

/* SPI configuration structure */
const SPI_Config SPI_config[] = {
    {
         .fxnTablePtr = &SPICC26XXDMA_fxnTable,
         .object      = &spiCC26XXDMAObjects[0],
         .hwAttrs     = &spiCC26XXDMAHWAttrs[0]
    },
    {
         .fxnTablePtr = &SPICC26XXDMA_fxnTable,
         .object      = &spiCC26XXDMAObjects[1],
         .hwAttrs     = &spiCC26XXDMAHWAttrs[1]
    },
    {NULL, NULL, NULL}
};


maintask.c

static SPI_Handle DspSpiHandle, AuxSpiHandle;
static SPI_Params DspSpiParams, AuxSpiParams;
static SPI_Transaction DspSpiTransaction, AuxSpiTransaction;

static void MainTaskFxn(UArg a0, UArg a1) // main task function in new app task
{
	// other code
	// .....................
	SPI_init();
	// once SPI for outgoing data
	SPI_Params_init(&DspSpiParams);
	DspSpiParams.bitRate = SPI_BAUDRATE; // 16 Mhz
	DspSpiParams.transferMode = SPI_MODE_CALLBACK;
	DspSpiParams.transferCallbackFxn = &display_spi_callback;
	DspSpiHandle = SPI_open(CC2650_DSP_SPI, &DspSpiParams);
	// and onother one - for M25P16 flash reading and external shift register
	SPI_Params_init(&AuxSpiParams);
	AuxSpiParams.bitRate = SPI_BAUDRATE;
	AuxSpiParams.transferMode = SPI_MODE_CALLBACK;
	AuxSpiParams.transferCallbackFxn = &aux_spi_callback;
	AuxSpiHandle = SPI_open(CC2650_FLASH_SPI, &AuxSpiParams);

	AuxSpiTransaction.count = 16;
	AuxSpiTransaction.txBuf = RGB_Array;
	AuxSpiTransaction.rxBuf = 0;
	SPI_transfer(AuxSpiHandle, &AuxSpiTransaction);
	//................
	 // start GTP3 timer for PWM and accurate time interval measuring
	 // when sound is on, the GTP3B interrupt calls StartMusicBuf() for loading of next sond chunck from ext. flash
	SoundInit();
	// other code

	// main task cycle
}

static void aux_spi_callback(SPI_Handle handle, SPI_Transaction *transaction) // SWI context
{
	switch (FlashSpiStep)
	{
	case 1:
		FlashSpiStep++;
		AuxSpiTransaction.rxBuf = (void*)SoundBuffPtr;
		AuxSpiTransaction.txBuf = 0;
		AuxSpiTransaction.count = SOUND_BUFF_LENGTH; // 128 bytes
		SPI_transfer(AuxSpiHandle, &AuxSpiTransaction);
		break;
	case 2:
		FLASH_CS_OFF();
		FlashSpiStep = 0;
		SoundBuffPtr = 0;
		break;
	case 3:
		// trig latch
		GPIOPinWrite(Board_CS_MOTOR, 1);
		FlashSpiStep = 0;
		GPIOPinWrite(Board_CS_MOTOR, 0);
		if (!CurStepCombination) DCDC36Off(PWR_MOTOR);
	}
}

void StartMusicBuf(void) // SPI out 4 bytes - flash reading address
{
	while (AuxSpiTransaction.status == SPI_TRANSFER_STARTED);

//	SPI_transferCancel(AuxSpiHandle);
	FlashSpiStep = 1;
	uint32_t addr = FlashAddr;
	static uint8_t read_req[4];
	uint8_t* d = (void*)&addr;
	read_req[0] = 3; //cm_READ
	read_req[1] = *(d+2);
	read_req[2] = *(d+1);
	read_req[3] = *(d);

	AuxSpiTransaction.count = 4;
	AuxSpiTransaction.txBuf = read_req;
	AuxSpiTransaction.rxBuf = 0;
	FLASH_CS_ON();
	SPI_transfer(AuxSpiHandle, &AuxSpiTransaction);

	FlashAddr += SOUND_BUFF_LENGTH;
	FlashAddr &= 0x001fffff;
}

void MotorEIOWrite(void) // called from TI TROS clock function
{
	while (AuxSpiTransaction.status == SPI_TRANSFER_STARTED);

	FlashSpiStep = 3;
	AuxSpiTransaction.count = 1;
	AuxSpiTransaction.txBuf = &CurStepCombination;
	AuxSpiTransaction.rxBuf = 0;
	SPI_transfer(AuxSpiHandle, &AuxSpiTransaction);
}

static void display_spi_callback (SPI_Handle handle, SPI_Transaction *transaction)
{
	switch (spi_step)
	{
	case 1:
		GPIOPinWrite(Board_MSEL, 0); // strobe MSEL, calib data has been transfered
		// now prepare main data
		display_send_pack((void*)&RGB_Array[line], NULL, RGB_DRIVERS_COUNT*RGB_BYTES_PER_LINE+1);
		spi_step++;
		break;
	case 2:
		// the main data has been sent
		display_send_pack(Text_Array[line], NULL, 5); // start sending last text data
		spi_step = 0;
		break;
	}
}

static bool display_send_pack(uint8_t* pSrc, uint8_t* pDest, uint16_t length)
{
   while (DspSpiTransaction.status != SPI_TRANSFER_COMPLETED);
  // if spi is ready to transmit
  // spi config
  DspSpiTransaction.arg = NULL;
  DspSpiTransaction.rxBuf = pDest;
  DspSpiTransaction.count = length;
  DspSpiTransaction.txBuf = pSrc;
  // send pack
  return (SPI_transfer(DspSpiHandle, &DspSpiTransaction));
}

void StartRGBFlood(void)
{
  // send first pack of data, residuals will be sent from spi callback
  GPIOPinWrite(Board_MSEL, 1);
  display_send_pack((void*)&calibration_Array[line], NULL, 24*3+6); // the last 6 is dummy bytes
  spi_step = 1;
}

static void display_timer_spi(UArg arg) // TI RTOS clock function // interval is 10 ms, full SPI transfer time is about 600 us
{
// if respective clock is turned off (so this func. is not invoked) all works fine!
	GPIOPinWrite(Board_LAT, 1);
	line = (++line) & 0x07;
	GPIOPinWrite(Board_LAT, 0);
	StartRGBFlood();
	GPIOPinWrite(Board_EN, 0);	// enable output section
}


sound.c

void SoundInit(void)
{
	// power on the timer first
	Power_setDependency(PowerCC26XX_PERIPH_GPT3);
	TimerStallControl(GPT_BASE, TIMER_BOTH, true);

	// p. 1086
	//1
	HWREG(GPT_BASE + GPT_O_CTL) &= ~(GPT_CTL_TAEN|GPT_CTL_TBEN);
	//2
	HWREG(GPT_BASE + GPT_O_CFG) = GPT_CFG_CFG_16BIT_TIMER;
	//3 // add: p1091: TCACT = 6h = Set CCP output pin immediately and clear on Time-Out
	HWREG(GPT_BASE + GPT_O_TAMR) = GPT_TAMR_TAMR_PERIODIC + GPT_TAMR_TAMRSU_TOUPDATE + GPT_TAMR_TCACT_CLRSET_ON_TO + GPT_TAMR_TAAMS_PWM;
	HWREG(GPT_BASE + GPT_O_TBMR) |= GPT_TBMR_TBMR_PERIODIC;
	//4
	HWREG(GPT_BASE + GPT_O_CTL) |= GPT_CTL_TAPWML_INVERTED; // pwm control
	//5
	//HWREG(GPT_BASE + GPT_O_TBPR) = 0x10; // prescaler
	//6 no interrupts
	//7
	HWREG(GPT_BASE + GPT_O_TAILR) = PWM_DAC_PERIOD;
	HWREG(GPT_BASE + GPT_O_TBILR) = DAC_SAMPLE_RATE;
	//8
	HWREG(GPT_BASE + GPT_O_TAMATCHR) = 0x50; // PWM value
	// reg int on timer3b overflow
	HWREG(GPT_BASE + GPT_O_IMR) |= TIMER_TIMB_TIMEOUT;

	 // start and stop timer to avoid high-pin state during timer off
	HWREG(GPT_BASE + GPT_O_TAMATCHR) = 1;
	HWREG(GPT_BASE + GPT_O_CTL) |= GPT_CTL_TAEN;
	HWREG(GPT_BASE + GPT_O_CTL) &= ~(GPT_CTL_TAEN|GPT_CTL_TBEN);

	PIN_State  pinState;
	PIN_Config pinCfg[] = { Board_AUDIO | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MAX, PIN_TERMINATE };
	PIN_Handle PinAudio = PIN_open(&pinState, pinCfg);
		// pp.873 tech ref man
	PIN_Status p = PINCC26XX_setMux(PinAudio, PIN_ID(Board_AUDIO), 29);

	IntRegister(INT_GPT3B, &SoundIRQ); // 22050 Hz PWM
	IntEnable(INT_GPT3B);
}

void SoundIRQ(void) // hwi or swi context // calls StartMusicBuf() - aux spi transfer
{
	TimerIntClear(GPT_BASE, TIMER_TIMB_TIMEOUT);


	SetDACLevel(*(int16_t*)CurSoundBuffPtr);

	if (CurSoundBuffPtr == SoundBuff[1])
	{
		SoundBuffPtr = SoundBuff[0]; // initiate starting of download of next chunk of sound
		StartMusicBuf();
	}
	else if (CurSoundBuffPtr == &SoundBuff[0][0]+sizeof(SoundBuff)-2)
	{
		SoundBuffPtr = SoundBuff[1];
		StartMusicBuf();
		CurSoundBuffPtr = SoundBuff[0];
		return;
	}
	CurSoundBuffPtr += 2;
}

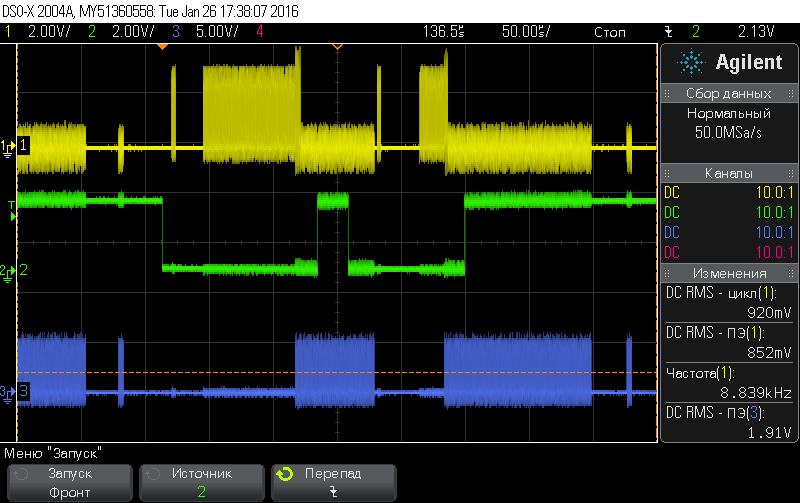

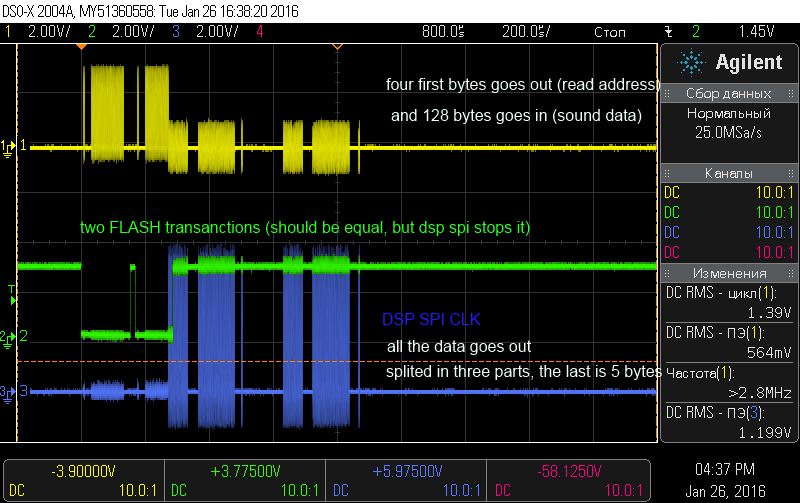

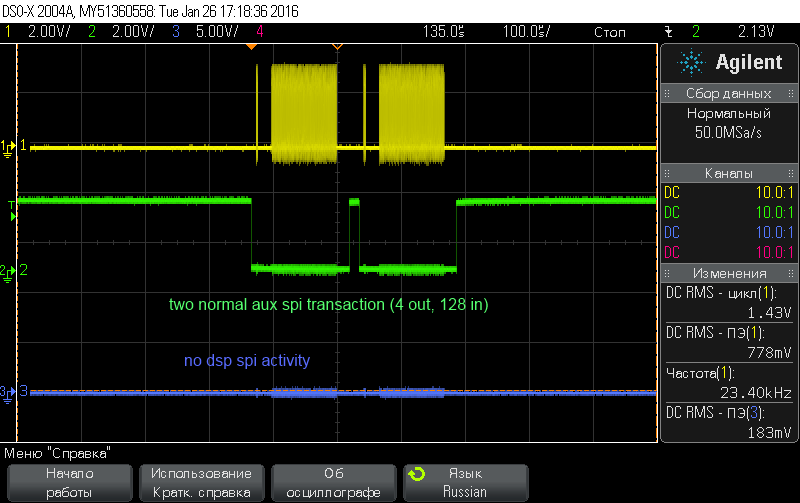

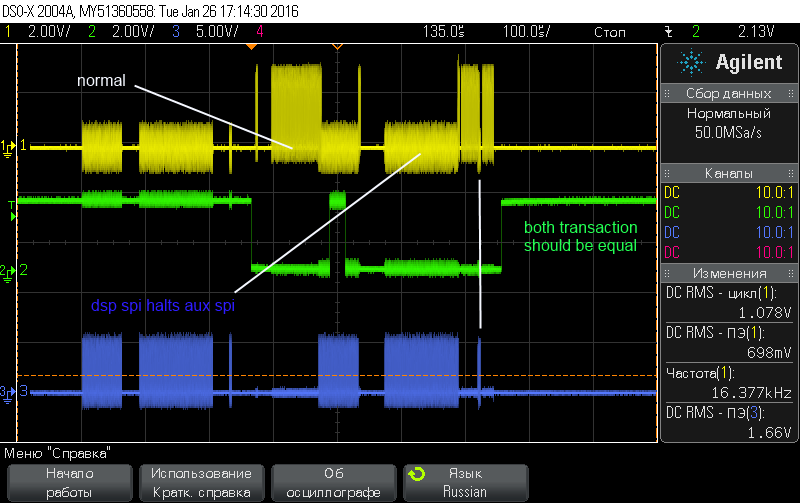

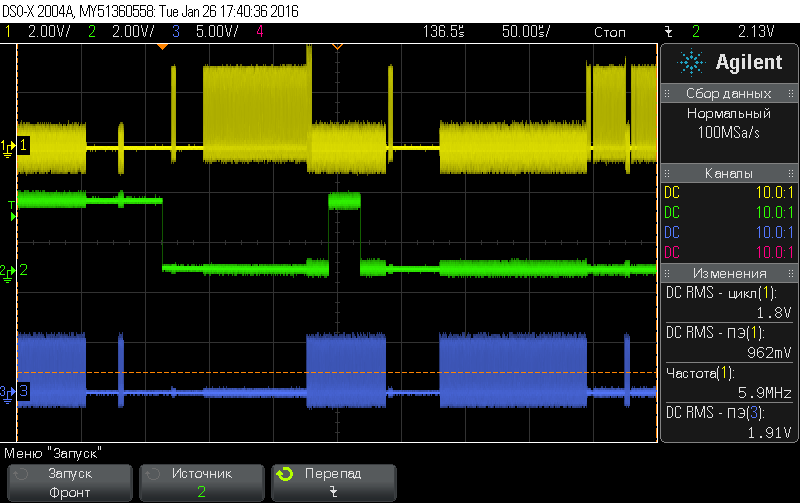

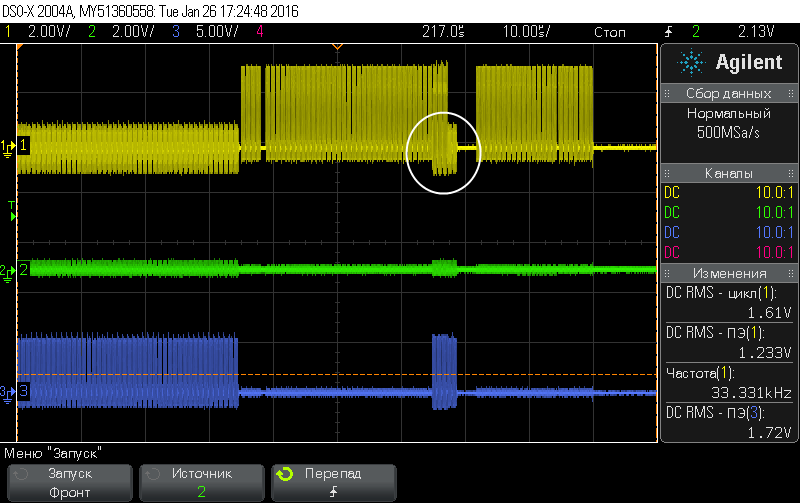

Oscilloscopes screenshots

The problem rises again: most data transactions on both SPI channels are successfull but after short time of running with rate of transfer if about 2400 transfers per second on both channels the program falls in ExceptionHandler() with registers stamp:

Expression	Value
e	0x20002FA8
_r4	0x00000018
_r5	0x00000001
_r6	0xFFFFFFFF
_r7	0xFFFFFFFF
_r8	0xFFFFFFFF
_r9	0xFFFFFFFF
_r10	0xFFFFFFFF
_r11	0xFFFFFFFF
_r0	0x1001C941
_r1	0x00000000
_r2	0x00000001
_r3	0x0000000A
_r12	0x0000000A
_lr	0x20000E78
_pc	0xFFD80000
_xpsr	0x00006F05
execLr	0xFFFFFFFD
CFSR	0x00040000

After reset from IAR PC starts from main() and failed in

SPICC26XXDMA.c\SPICC26XXDMA_open() line 700

Hwi_construct(&(object->hwi), (int) hwAttrs->intNum, SPICC26XXDMA_hwiFxn, &paramsUnion.hwiParams, NULL);

with registers stamp:

Expression	Value
e	0x20004360
_r4	0x200030B8
_r5	0x00006F8C
_r6	0x20003030
_r7	0x00006F54
_r8	0x00000002
_r9	0xFFFFFFFF
_r10	0xFFFFFFFF
_r11	0xFFFFFFFF
_r0	0xC230E0F2
_r1	0x00000010
_r2	0x200001A4
_r3	0x2000304C
_r12	0x0000000C
_lr	0x00002F49
_pc	0x00002CEC
_xpsr	0x41000017
execLr	0xFFFFFFF1
CFSR	0x00008200

It occurs every Reset in IAR and Program starts in normal flow only if it will be donwloaded again.

What does it mean? Any suggestions?
