Other Parts Discussed in Thread: CC1310,
Hi,
My customer is using 2.4GHz proprietary mode in their application. Fixed length mode(pktConf.bVarLen = 1) is used to compatible with legacy devices. And customer wants to get RSSI value of each received packet.
When the packet length fields in TX and RX side are set to the same value, RF_cmdPropTx.pktLen = 10 and RF_cmdPropRx.maxPktLen = 10, the valid RSSI value is appended into the 11th byte(packet[10]=0xE5) of rx buffer.
In customer's application, two types of packet with different length are sent by the TX side, and fixed length mode should be used to compatible with legacy devices. So packet length fields in TX and RX side are set to different value, RF_cmdPropTx.pktLen = 10 and RF_cmdPropRx.maxPktLen = 16. Then, the payload can be received correctly, but the appended RSSI(the 17th byte in rx buffer, packet[16]=0xB6) seems invalid.
This issue can be reproduces based on example project rfPacketRx/rfPacketTx, attached are .c files I used in reproducing the issue.
I also did the same test with CC1310 launchpads, the appended RSSI is valid in both conditions(with same or different value in length field in TX and RX side).
In the TRM document, it says that "If pktConf.bVarLen is 0, the length is fixed, and the receiver assumes maxPktLen bytes after the sync word and before the CRC". So, it should work correctly even the TX and RX sides use different length value with fixed length mode.
Please help to answer below questions:

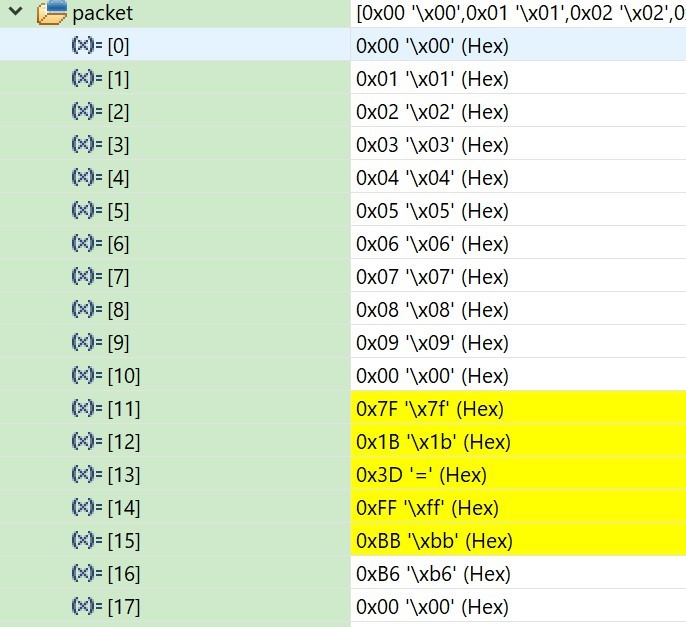

1. how to get valid appended RSSI in fixed length mode, while length field is different in TX and RX side?
2. if it is not possible to get valid RSSI appended, what the work around?
3. why CC26xx has this issue, while CC13xx does not?
7776.rfPacketTx.c
/*
* Copyright (c) 2015-2016, Texas Instruments Incorporated
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* * Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* * Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
*
* * Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
* THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
* EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/***** Includes *****/
#include <stdlib.h>
#include <xdc/std.h>
#include <xdc/runtime/System.h>
#include <ti/sysbios/BIOS.h>
#include <ti/sysbios/knl/Task.h>
/* Drivers */
#include <ti/drivers/rf/RF.h>
#include <ti/drivers/PIN.h>
/* Board Header files */
#include "Board.h"
#include "smartrf_settings/smartrf_settings.h"
/* Pin driver handle */
static PIN_Handle ledPinHandle;
static PIN_State ledPinState;
/*
* Application LED pin configuration table:
* - All LEDs board LEDs are off.
*/
PIN_Config pinTable[] =
{
Board_LED1 | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MAX,
PIN_TERMINATE
};
/***** Defines *****/
#define TX_TASK_STACK_SIZE 1024
#define TX_TASK_PRIORITY 2
/* Packet TX Configuration */
#define PAYLOAD_LENGTH 10//30
#define PACKET_INTERVAL (uint32_t)(4000000*0.5f) /* Set packet interval to 500ms */
/***** Prototypes *****/
static void txTaskFunction(UArg arg0, UArg arg1);
/***** Variable declarations *****/
static Task_Params txTaskParams;
Task_Struct txTask; /* not static so you can see in ROV */
static uint8_t txTaskStack[TX_TASK_STACK_SIZE];
static RF_Object rfObject;
static RF_Handle rfHandle;
uint32_t time;
static uint8_t packet[PAYLOAD_LENGTH];
static uint16_t seqNumber;
static PIN_Handle pinHandle;
/***** Function definitions *****/
void TxTask_init(PIN_Handle inPinHandle)
{
pinHandle = inPinHandle;
Task_Params_init(&txTaskParams);
txTaskParams.stackSize = TX_TASK_STACK_SIZE;
txTaskParams.priority = TX_TASK_PRIORITY;
txTaskParams.stack = &txTaskStack;
txTaskParams.arg0 = (UInt)1000000;
Task_construct(&txTask, txTaskFunction, &txTaskParams, NULL);
}
static void txTaskFunction(UArg arg0, UArg arg1)
{
uint32_t time;
RF_Params rfParams;
RF_Params_init(&rfParams);
RF_cmdPropTx.pktLen = PAYLOAD_LENGTH;
RF_cmdPropTx.pPkt = packet;
RF_cmdPropTx.startTrigger.triggerType = TRIG_ABSTIME;
RF_cmdPropTx.startTrigger.pastTrig = 1;
RF_cmdPropTx.startTime = 0;
RF_cmdPropTx.pktConf.bUseCrc = 0;
RF_cmdPropTx.pktConf.bVarLen = 0;
/* Request access to the radio */
rfHandle = RF_open(&rfObject, &RF_prop, (RF_RadioSetup*)&RF_cmdPropRadioDivSetup, &rfParams);
/* Set the frequency */
RF_postCmd(rfHandle, (RF_Op*)&RF_cmdFs, RF_PriorityNormal, NULL, 0);
/* Get current time */
time = RF_getCurrentTime();
while(1)
{
/* Create packet with incrementing sequence number and random payload */
// packet[0] = (uint8_t)(seqNumber >> 8);
// packet[1] = (uint8_t)(seqNumber++);
uint8_t i;
for (i = 0; i < PAYLOAD_LENGTH; i++)
{
packet[i] = i;//rand();
}
/* Set absolute TX time to utilize automatic power management */
time += PACKET_INTERVAL;
RF_cmdPropTx.startTime = time;
/* Send packet */
RF_EventMask result = RF_runCmd(rfHandle, (RF_Op*)&RF_cmdPropTx, RF_PriorityNormal, NULL, 0);
if (!(result & RF_EventLastCmdDone))
{
/* Error */
while(1);
}
PIN_setOutputValue(pinHandle, Board_LED1,!PIN_getOutputValue(Board_LED1));
}
}
/*
* ======== main ========
*/
int main(void)
{
/* Call board init functions. */
Board_initGeneral();
/* Open LED pins */
ledPinHandle = PIN_open(&ledPinState, pinTable);
if(!ledPinHandle)
{
System_abort("Error initializing board LED pins\n");
}
/* Initialize task */
TxTask_init(ledPinHandle);
/* Start BIOS */
BIOS_start();
return (0);
}
rfPacketRx.c
/*
* Copyright (c) 2015-2016, Texas Instruments Incorporated
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without
* modification, are permitted provided that the following conditions
* are met:
*
* * Redistributions of source code must retain the above copyright
* notice, this list of conditions and the following disclaimer.
*
* * Redistributions in binary form must reproduce the above copyright
* notice, this list of conditions and the following disclaimer in the
* documentation and/or other materials provided with the distribution.
*
* * Neither the name of Texas Instruments Incorporated nor the names of
* its contributors may be used to endorse or promote products derived
* from this software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS"
* AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO,
* THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
* PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR
* CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS;
* OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY,
* WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR
* OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
* EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/
/***** Includes *****/
#include <stdlib.h>
#include <xdc/std.h>
#include <xdc/cfg/global.h>
#include <xdc/runtime/System.h>
#include <ti/sysbios/BIOS.h>
#include <ti/sysbios/knl/Task.h>
/* Drivers */
#include <ti/drivers/rf/RF.h>
#include <ti/drivers/PIN.h>
#include <driverlib/rf_prop_mailbox.h>
/* Board Header files */
#include "Board.h"
#include "RFQueue.h"
#include "smartrf_settings/smartrf_settings.h"
#include <stdlib.h>
/* Pin driver handle */
static PIN_Handle ledPinHandle;
static PIN_State ledPinState;
/*
* Application LED pin configuration table:
* - All LEDs board LEDs are off.
*/
PIN_Config pinTable[] =
{
Board_LED2 | PIN_GPIO_OUTPUT_EN | PIN_GPIO_LOW | PIN_PUSHPULL | PIN_DRVSTR_MAX,
PIN_TERMINATE
};
/***** Defines *****/
#define RX_TASK_STACK_SIZE 1024
#define RX_TASK_PRIORITY 2
/* Packet RX Configuration */
#define DATA_ENTRY_HEADER_SIZE 8 /* Constant header size of a Generic Data Entry */
#define MAX_LENGTH 16//30 /* Max length byte the radio will accept */
#define NUM_DATA_ENTRIES 2 /* NOTE: Only two data entries supported at the moment */
#define NUM_APPENDED_BYTES 2 /* The Data Entries data field will contain:
* 1 Header byte (RF_cmdPropRx.rxConf.bIncludeHdr = 0x1)
* Max 30 payload bytes
* 1 status byte (RF_cmdPropRx.rxConf.bAppendStatus = 0x1) */
/***** Prototypes *****/
static void rxTaskFunction(UArg arg0, UArg arg1);
static void callback(RF_Handle h, RF_CmdHandle ch, RF_EventMask e);
/***** Variable declarations *****/
static Task_Params rxTaskParams;
Task_Struct rxTask; /* not static so you can see in ROV */
static uint8_t rxTaskStack[RX_TASK_STACK_SIZE];
static RF_Object rfObject;
static RF_Handle rfHandle;
/* Buffer which contains all Data Entries for receiving data.
* Pragmas are needed to make sure this buffer is 4 byte aligned (requirement from the RF Core) */
#if defined(__TI_COMPILER_VERSION__)
#pragma DATA_ALIGN (rxDataEntryBuffer, 4);
static uint8_t rxDataEntryBuffer[RF_QUEUE_DATA_ENTRY_BUFFER_SIZE(NUM_DATA_ENTRIES,
MAX_LENGTH,
NUM_APPENDED_BYTES)];
#elif defined(__IAR_SYSTEMS_ICC__)
#pragma data_alignment = 4
static uint8_t rxDataEntryBuffer[RF_QUEUE_DATA_ENTRY_BUFFER_SIZE(NUM_DATA_ENTRIES,
MAX_LENGTH,
NUM_APPENDED_BYTES)];
#elif defined(__GNUC__)
static uint8_t rxDataEntryBuffer [RF_QUEUE_DATA_ENTRY_BUFFER_SIZE(NUM_DATA_ENTRIES,
MAX_LENGTH, NUM_APPENDED_BYTES)] __attribute__ ((aligned (4)));
#else
#error This compiler is not supported.
#endif
/* Receive dataQueue for RF Core to fill in data */
static dataQueue_t dataQueue;
static rfc_dataEntryGeneral_t* currentDataEntry;
static uint8_t packetLength;
static uint8_t* packetDataPointer;
static PIN_Handle pinHandle;
static uint8_t packet[MAX_LENGTH + NUM_APPENDED_BYTES]; /* The length byte is stored in a separate variable */
/***** Function definitions *****/
void RxTask_init(PIN_Handle ledPinHandle) {
pinHandle = ledPinHandle;
Task_Params_init(&rxTaskParams);
rxTaskParams.stackSize = RX_TASK_STACK_SIZE;
rxTaskParams.priority = RX_TASK_PRIORITY;
rxTaskParams.stack = &rxTaskStack;
rxTaskParams.arg0 = (UInt)1000000;
Task_construct(&rxTask, rxTaskFunction, &rxTaskParams, NULL);
}
static void rxTaskFunction(UArg arg0, UArg arg1)
{
RF_Params rfParams;
RF_Params_init(&rfParams);
if( RFQueue_defineQueue(&dataQueue,
rxDataEntryBuffer,
sizeof(rxDataEntryBuffer),
NUM_DATA_ENTRIES,
MAX_LENGTH + NUM_APPENDED_BYTES))
{
/* Failed to allocate space for all data entries */
while(1);
}
/* Modify CMD_PROP_RX command for application needs */
RF_cmdPropRx.pQueue = &dataQueue; /* Set the Data Entity queue for received data */
RF_cmdPropRx.rxConf.bAutoFlushIgnored = 0; /* Discard ignored packets from Rx queue */
RF_cmdPropRx.rxConf.bAutoFlushCrcErr = 0; /* Discard packets with CRC error from Rx queue */
RF_cmdPropRx.maxPktLen = MAX_LENGTH; /* Implement packet length filtering to avoid PROP_ERROR_RXBUF */
RF_cmdPropRx.pktConf.bRepeatOk = 1;
RF_cmdPropRx.pktConf.bRepeatNok = 1;
RF_cmdPropRx.pktConf.bUseCrc = 0;
RF_cmdPropRx.pktConf.bVarLen = 0;
RF_cmdPropRx.rxConf.bAppendRssi = 1;
RF_cmdPropRx.rxConf.bAppendStatus = 1;
RF_cmdPropRx.rxConf.bIncludeCrc = 0;
/* Request access to the radio */
rfHandle = RF_open(&rfObject, &RF_prop, (RF_RadioSetup*)&RF_cmdPropRadioDivSetup, &rfParams);
/* Set the frequency */
RF_postCmd(rfHandle, (RF_Op*)&RF_cmdFs, RF_PriorityNormal, NULL, 0);
/* Enter RX mode and stay forever in RX */
RF_runCmd(rfHandle, (RF_Op*)&RF_cmdPropRx, RF_PriorityNormal, &callback, IRQ_RX_ENTRY_DONE);
while(1);
}
void callback(RF_Handle h, RF_CmdHandle ch, RF_EventMask e)
{
if (e & RF_EventRxEntryDone)
{
/* Toggle pin to indicate RX */
PIN_setOutputValue(pinHandle, Board_LED2,!PIN_getOutputValue(Board_LED2));
/* Get current unhandled data entry */
currentDataEntry = RFQueue_getDataEntry();
/* Handle the packet data, located at ¤tDataEntry->data:
* - Length is the first byte with the current configuration
* - Data starts from the second byte */
packetLength = MAX_LENGTH;
packetDataPointer = (uint8_t*)(¤tDataEntry->data);
/* Copy the payload + the status byte to the packet variable */
memcpy(packet, packetDataPointer, (packetLength + NUM_APPENDED_BYTES));
RFQueue_nextEntry();
}
}
/*
* ======== main ========
*/
int main(void)
{
/* Call board init functions. */
Board_initGeneral();
/* Open LED pins */
ledPinHandle = PIN_open(&ledPinState, pinTable);
if(!ledPinHandle)
{
System_abort("Error initializing board LED pins\n");
}
/* Initialize task */
RxTask_init(ledPinHandle);
/* Start BIOS */
BIOS_start();
return (0);
}
