DRV8871: Using case of DAC to ILIM pin

masahiko shimizu

Part Number: DRV8871
Other Parts Discussed in Thread: DRV8885, , DRV8884

Hi,

We wants to adjust the current limit by DAC.

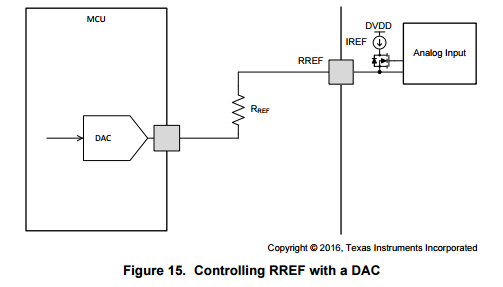

I think this circuit is like Figure 15 in datasheet of DRV8885.
Can we use to adjust the current limit as below?

Best regards,
Shimizu

over 8 years ago

0 Rick Duncan over 8 years ago

TI__Guru** 114905 points

Hi Shimizu-san,

Yes, the circuit shown can be used. Please note that there is only slow decay mode is available for this device.

0 masahiko shimizu over 8 years ago in reply to Rick Duncan

Guru 11235 points

Hi Rick-san,

Thank you for your support.

Could you let me know the formula to calculate chopping current in this case, please?

Best regards,
Shimizu

0 Rick Duncan over 8 years ago in reply to masahiko shimizu

TI__Guru** 114905 points

Hi Shimizu-san,

The application report for the DRV8884/85/86/86AT can be used for the DRV8871 also.
Please refer to the application report: www.ti.com/.../slva872.pdf

Replace ARREF with VILIM, VRREF remains the same at 1.232, and RREF with RILIM.
