IWR1443BOOST: S11 of Antenna

Jason Jantzi

Part Number: IWR1443BOOST
Other Parts Discussed in Thread: IWR1443, IWR6843ISK, IWR6843

Can you provide simulation and measured data for S11 of the Tx and Rx antennas on the IWR1443 BOOST? Can you also provide the polar farfield directivity azimuth and elevation data?

What simulation tool are you using for simulation? Is it possible to share the simulation file?

Thanks,
Jason

over 6 years ago

0 Akash Gondalia over 6 years ago

TI__Guru 50240 points

Hi Jason,

I've asked an mmWave Team member to look into this and someone should have an answer for you in the next few days.

Cheers,

Akash

0 CHETHAN KUMAR Y.B. over 6 years ago in reply to Akash Gondalia

TI__Mastermind 25835 points

Hello,

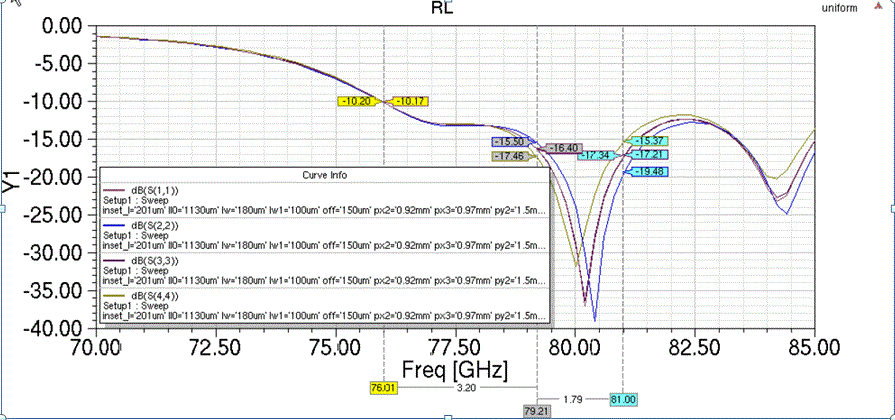

You could refer to below graph for the S11 for the Antennas.

For Antenna Radiation patterns you could refer to the below user guide link under Antenna section:

http://www.ti.com/lit/ug/swru518c/swru518c.pdf

We use HFSS tool from Ansoft use for the simulation. These simulation files are for TI internal Antenna development only.

Thanks and regards,

CHETHAN KUMAR Y.B.

0 user5310849 over 6 years ago in reply to CHETHAN KUMAR Y.B.

Intellectual 730 points

Hi TI,

Do you have the same graphs for 60GHz antennas? I mean ISK, ODS and AoP.

Thank you, Lukas

0 CHETHAN KUMAR Y.B. over 6 years ago in reply to user5310849

TI__Mastermind 25835 points

Hello,

It would be helpful, If you raise a new thread for new questions, so that title of thread matches with the answers and it would be useful for others who are seeking similar information.

You could refer to the below link for IWR6843ISK Antenna S11 from the below E2E post.

https://e2e.ti.com/support/sensors/f/1023/p/749295/2775143#2775143

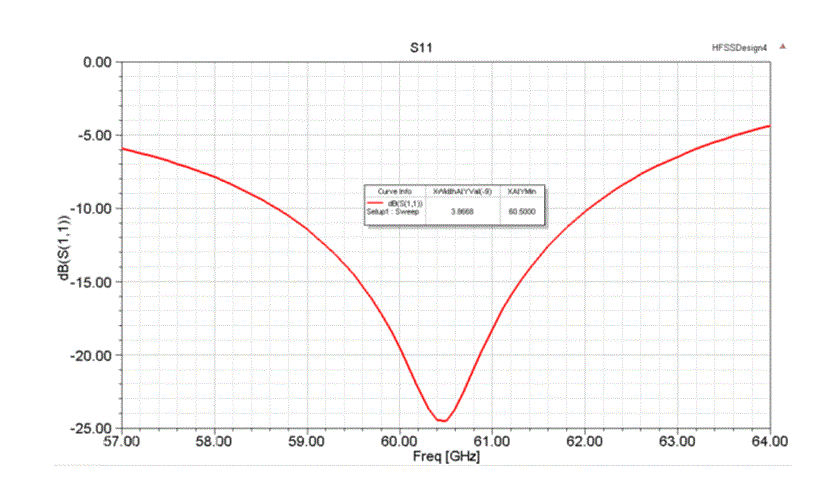

And IWR6843 AOP Antennas S11 is provided below.

Thanks and regards,

CHETHAN KUMAR Y.B.
