DRV591: Detailed Lead Dimension

Renan Santos Adriano

Mastermind 25155 points

Part Number: DRV591

Hi Team,

My Customer is creating a 3D model for this device. He wanted to have a detailed lead dimension of DRV591. He already knows that the land pattern is present at the device datasheet unfortunately, he insisted he wants the detailed dimension since their tools are generating the Land patterns for different densities.

Looking forward to your help.

Regards,

-Renan

over 6 years ago

0 Andy Liu (BMS) over 6 years ago

TI__Guru 52115 points

Hi Renan,

I see that there are already quite a few details about the land pattern in the DRV591 datasheet. Check Page 18 and 19.
What is your customer actually looking for?

Andy

0 Renan Santos Adriano over 6 years ago in reply to Andy Liu (BMS)

TI__Mastermind 25155 points

Hi Andy,

The customer is looking for a detailed lead dimension.

Regards,

-Renan

0 Matthew Miao over 6 years ago in reply to Renan Santos Adriano

TI__Expert 6720 points

Hi Renan,

Please specify which parameters are needed. Then we will try to contact the packge team for more details.

Rdgs,
Matthew

0 Renan Santos Adriano over 6 years ago in reply to Matthew Miao

TI__Mastermind 25155 points

Hi Matthew,

He wanted to have the detail lead dimension of DRV591VFP.

-Renan

0 Matthew Miao over 6 years ago in reply to Renan Santos Adriano

TI__Expert 6720 points

Hi Renan,

Lead dimension is too ambiguous. How about this way? Could you ask the customer to point out at the below figure which information is further needed?

Rdgs,

Matthew

0 Renan Santos Adriano over 6 years ago in reply to Matthew Miao

TI__Mastermind 25155 points

Hi Matthew,

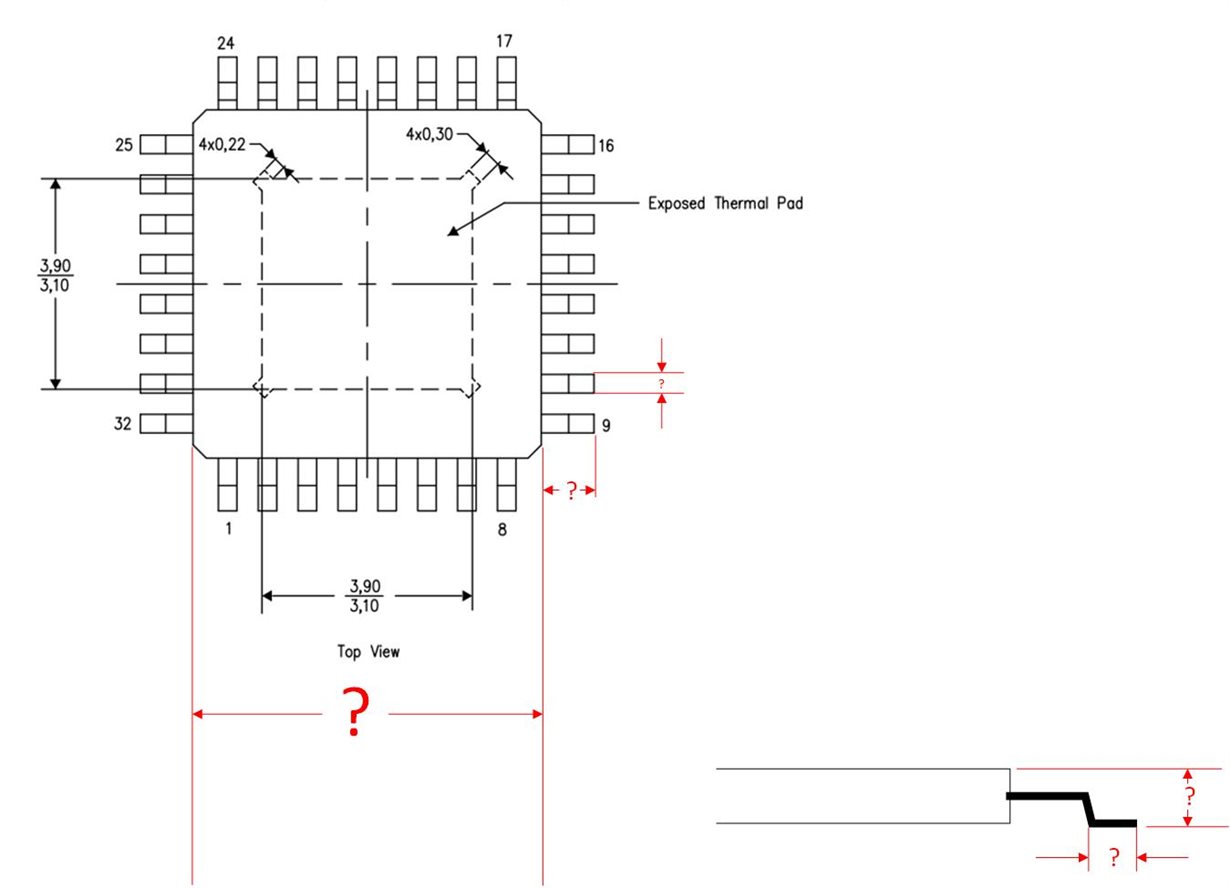

I got feedback from my customer and send below picture for reference. He needs all with red ?.

Really appreciate your help.

-Renan

0 Xiaolin Qin over 6 years ago in reply to Renan Santos Adriano

TI__Expert 6295 points

hello,

datasheet page21 you can get what you marked size which you need.

Regards

Linda
