LP8867C-Q1：Component location NT1 of LP8867Q1EVM.

Loren Chang

Prodigy 70 points

Part Number: LP8867C-Q1

Dear sir：

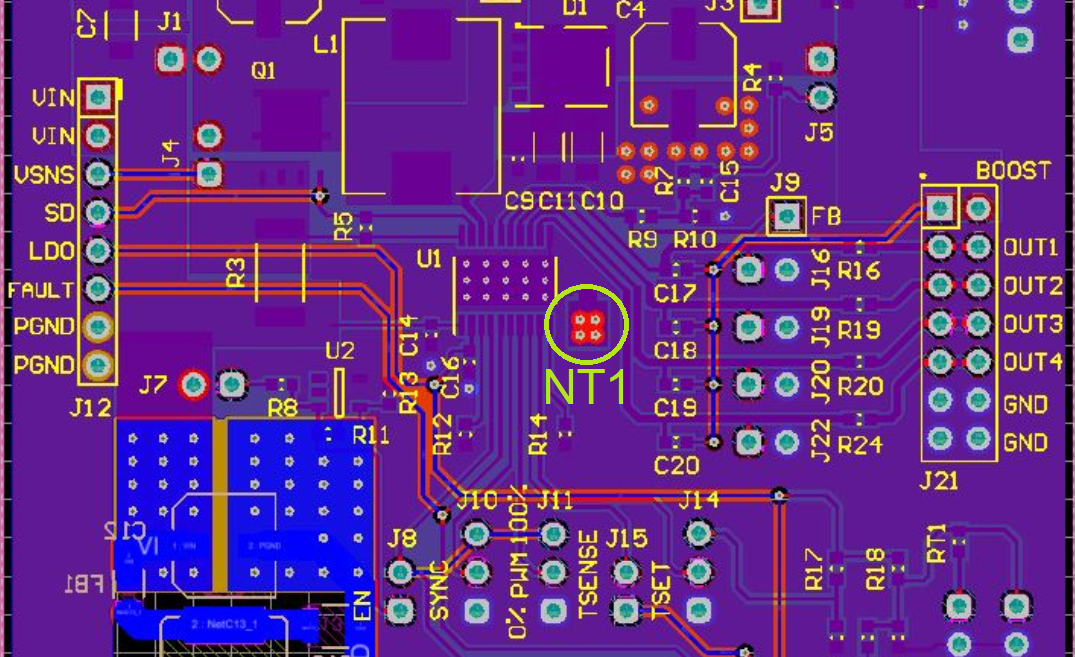

What's the component location NT1 , its specifications and brands?

張洛誠 Loren 4C部 / 課長

信箱:icm.pcblayout@icm.com.tw

電話:07-557-7691

傳真:07-557-5965

地址:813高雄市左營區大順一路91號6樓之5

公司網址: http:www.icm.com.tw

over 3 years ago

0 Frank Qiu over 3 years ago

TI__Genius 15776 points

Please reference evm's user guide you can find bom in it

0 Loren Chang over 3 years ago in reply to Frank Qiu

Prodigy 70 points

HI Frank：

There is no such original location in the BOM. Will there be relevant information there?

0 kai klaas69 over 3 years ago

Guru 140200 points

Hi Loren,

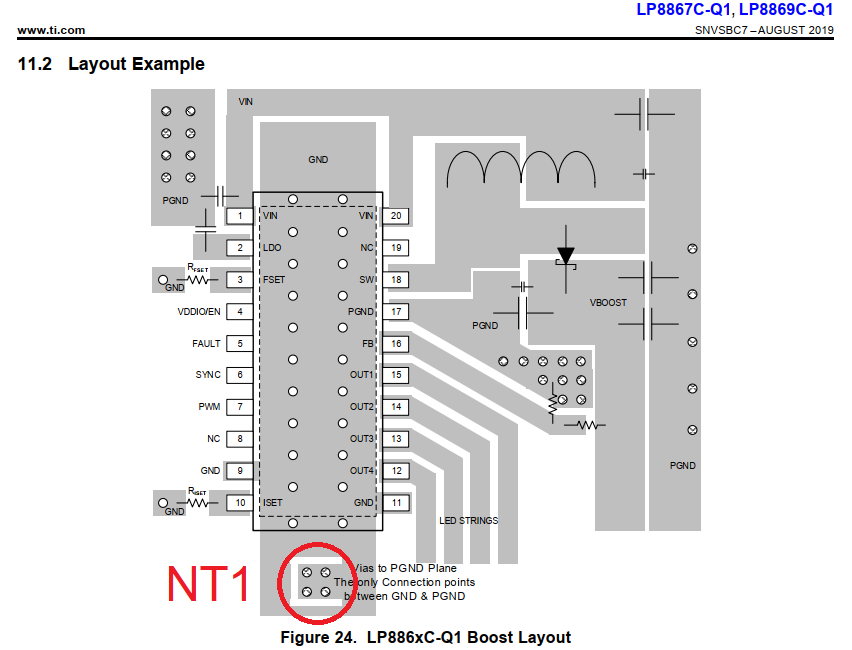

NT1 is no component to mount but the central star ground connection between GND and PGND. The EVM follows with this star ground connection the layout recommendation given in the datasheet of LP8867C-Q1:

Kai

0 Loren Chang over 3 years ago in reply to kai klaas69

Prodigy 70 points

Ok,

Thanks, kay
