TAS5631EVM-USB Input Board?

Wolfram Szentiks

Other Parts Discussed in Thread: TAS5631

Im developing a 4-channel amplifier board based on TAS5631 / 5518.

To use it together with the TI-Software I need a USB-board 2 as described in the EVM datasheet:

"This EVM, together with a TI input-USB board 2, is a complete stereo digital audio amplifier system which
includes digital input (S/PDIF), analog inputs, interface to PC and DAP features like digital volume control,
input and output mixers, automute, tone controls, loudness, EQ filters and dynamic range compression
(DRC). There are configuration options for power stage failure protection."

Ive searched a whole day, but couldnt find any informations about this board.

So, is it available as single item or could anyone post some informations or schematic sheets about it, please?

Thanks a lot,

Wolfram

over 15 years ago

0 Don Dapkus over 15 years ago

TI__Guru**** 189401 points

Hi, Wolfram,

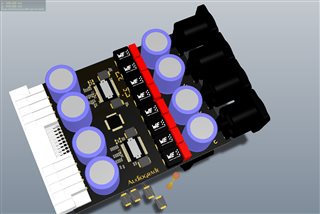

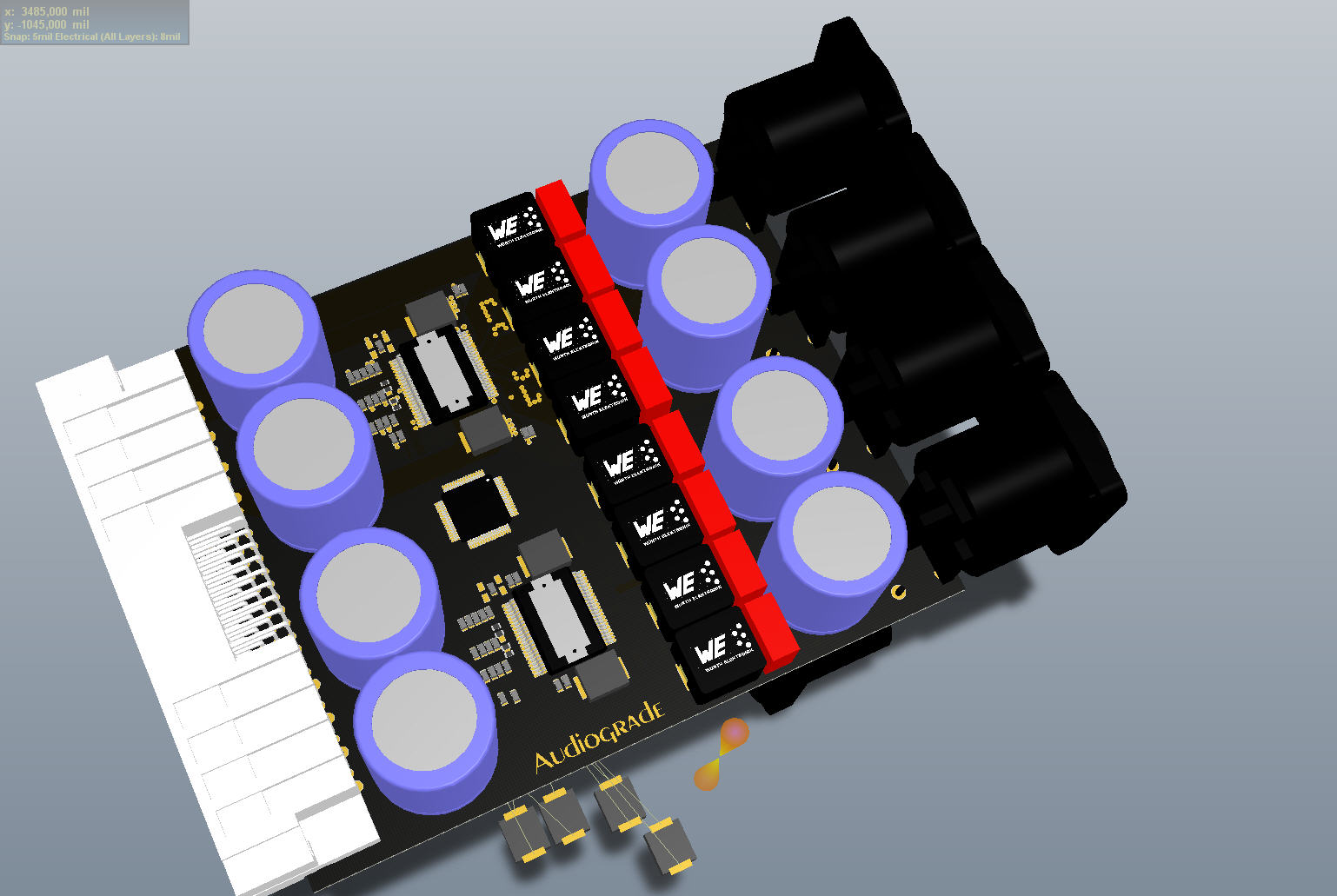

I like your rendering!

We are in the process of releasing the documentation for that board on the web, but in the meanwhile, here is the users guide for it.

-d2

(SLEU094) Input-USB Board 2 User's Guide (2 00).pdf

0 Wolfram Szentiks over 15 years ago in reply to Don Dapkus

Prodigy 70 points

Hi Don,

wow, thanks a lot, thats what Im looking for!

Could I order one of these boards for my prototype tests?

My board is made with the new Altium Designer and Ive spent a lot of time

to optimize the layout. Its really compact (100 x 124mm) and perfectly symmetry, so

Im curious about my measurements ..

Thanks and best regards from Germany,

Wolfram

0 Don Dapkus over 15 years ago in reply to Wolfram Szentiks

TI__Guru**** 189401 points

Hi, Wolfram,

This board is not set up to be orderable yet, and I am not sure exactly when that will be complete.

I suggest you contact your local sales office and ask them for one.

-d2

0 Wolfram Szentiks over 15 years ago in reply to Don Dapkus

Prodigy 70 points

Hi Don,

hm, no good news. But it will be delivered in combination with the TAS5631EVM,

so its a "ready" product, or?

And here in Germany no one will help me to order it, so I hoped that I could order it

directly...

If not, the Gerber files would help me to produce a single board.

"For gerber (layout) and parts list (MS Exel format), please see PurePath Digital™ CDROM."

Thanks for any help,

Wolfram

0 Wolfram Szentiks over 15 years ago in reply to Wolfram Szentiks

Prodigy 70 points

Hi,

any news about the Gerber files?

Thanks and regards,

Wolfram

0 Christian DUFAZA over 15 years ago in reply to Wolfram Szentiks

Prodigy 110 points

Hi Wolfram,

yours questions about "Input-USB Board" are very interesting and i plan to purchase this board too.

did you find any way to get it ?

Thanks and regards,

Christian

0 Wolfram Szentiks over 15 years ago in reply to Christian DUFAZA

Prodigy 70 points

Hi Christian,

at the moment no one answers me?! This is a little bit untypical for the most excellent

TI-Support..

There are two ways to get an USB-Board:

a) I get the Gerber files from TI and let produce 2 or more PCBs for me an for anyone who is interested on it..

b) I draw my own USB Board and I will offer my odd ones for other guys ...

Next week my AmpBoard is ready routed, so I had to come to a decision...

Best regards,

Wolfram

0 Christian DUFAZA over 15 years ago in reply to Wolfram Szentiks

Prodigy 110 points

Hi Wolfram,

thanks for you quick response ... maybe i can interface in your decision and join our efforts

i am interested by Gerbers files, by "more" PCBs, included old ones ... just tell me your status and how i can participate

do you know a way to communicate directly out of this forum

regards, christian

0 Wolfram Szentiks over 15 years ago in reply to Christian DUFAZA

Prodigy 70 points

Hi Christian,

perhaps the TI guys will send me the files?!

You can contact me directly via Email:

W.Szentiks (at) audiograde.de

Best regards,

Wolfram

0 Christian DUFAZA over 15 years ago in reply to Wolfram Szentiks

Prodigy 110 points

Hi Wolfram,

i think i have a solution, apparently "Input USB Board" is included in package TAS5631DKD2EVM

see Section 2.2 "Unpacking the EVM" at http://focus.ti.com/lit/ug/slou274/slou274.pdf

also http://focus.ti.com/lit/ml/slal207/slal207.pdf

$399 price is not so fine for just an "Input USB Board" but i have the full set now !

i ordered it on TI eStore, maybe i can give you some feedback later on ...

regards, christian

0 Don Dapkus over 15 years ago in reply to Christian DUFAZA

TI__Guru**** 189401 points

Hi, Wolfram,

Sorry for the delay in getting back with you. I was hoping we could formally release this, and I could point you to the Product Folder, but we are still working on that...

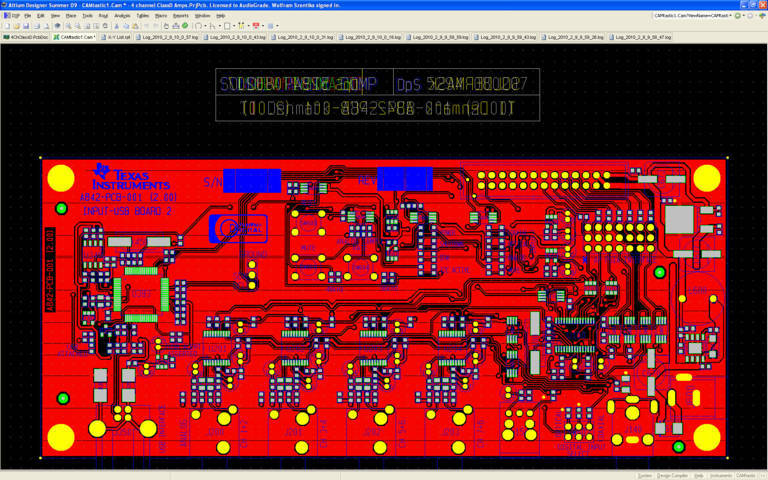

Here is a preliminary copy of the Gerber files for the USB Input Board. Please check them closely to make sure they will work for you.

-d2

USB_Input_Board.ZIP

0 Wolfram Szentiks over 15 years ago in reply to Don Dapkus

Prodigy 70 points

Good morning Don!

Thanks a lot for this good news!

The files are ok:

In one week I will order some PCBs, so if any other user needs a PCB he can contact me.

The price for the PCB is depending on the quantity that I will order. I think it will be around 25-35Euro + p&p.

Best regards,

Wolfram

0 Don Dapkus over 15 years ago in reply to Wolfram Szentiks

TI__Guru**** 189401 points

Wolfram,

Excellent!

BTW, if you add someone as a "friend" (click on their name to pull up their profile), once they accept, you can go to your Profile, and on the Friends tab, you can start a private conversation.

-d2

0 Ravaz12109 over 15 years ago in reply to Don Dapkus

Prodigy 10 points

Hi Wolfram,

nice job... From the rendering I don't see any heatsink, do you plan to put one? If yes are you willing to share which one, I'm doing a similar board and I still didn't decide for the heatsink. The one used by the EVM seems to be a custom maybe product.

Best regards,

Ravaz
