Part Number: INA326
I am trying to get the output current to configure 10uA/Volt input. So far this design works, until I try to go higher than 2V. It seems to be having some convergence issues. I believe it has to do with INA326. I wanted to see if someone had more insight on the subject. Maybe how I need to set some Analysis Parameters? Any information can be helpful.
Thanks for your post. I can help. It looks like you are referring to TIPD107: http://www.ti.com/lit/ug/slau507/slau507.pdf
This design is for 0-5V in, 0-5µA out but we can try to tweak this for your requirements.
-Tamara Alani Learn more about IAs here.
We are glad that we were able to resolve this issue, and will now proceed to close this thread.
If you have further questions related to this thread, you may click "Ask a related question" below. The newly created question will be automatically linked to this question.
In reply to Tamara M Alani:

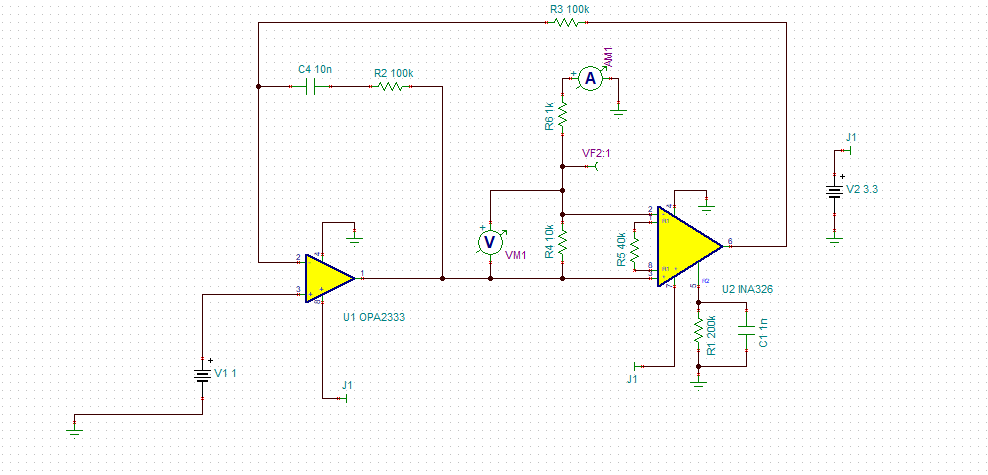

You are correct, I am referring to TIPD107. My expected input range is from 0V-3V. Which I want to be able to output 0-30uA. I was able to design is as such to give me 10uA per volt input, but after 2V input, TINA TI seems to give me convergence errors. It doesnt specify completely, but it says Operation point not found. Any help will be appreciated.
In reply to Miguel Partida:
Your circuit looks right to me. I did make two changes to my attachment below:
Take a look.
Thank you so much Tamara, one quick question. The change from OPA2333 to OPA333, is that just to make the simulation work? Theoretically isn't OPA2333 just two OPA333 on the same chip? Or would using the OPA2333 for applied purposes actually vary that differently from OPA333?
That's right, Miguel. The OPA2333 is just 2 OPA333 in one package.
Since you are only utilizing one OPA333, though, I switched it out to the correct package.
Thanks Tamara, not sure why my design didn't work for me, but the one you sent worked well.
