DRV8301 - SPI and high temperature question

Pao Wu

Intellectual 920 points

Other Parts Discussed in Thread: DRV8301

Hi,

I have project need to work on 85degC. I have some question.

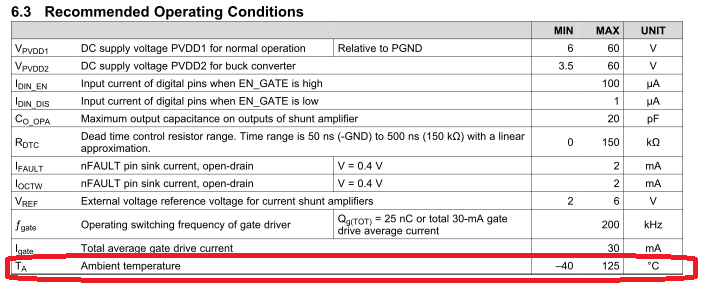

Recommended operating temp = -40~+125. But...

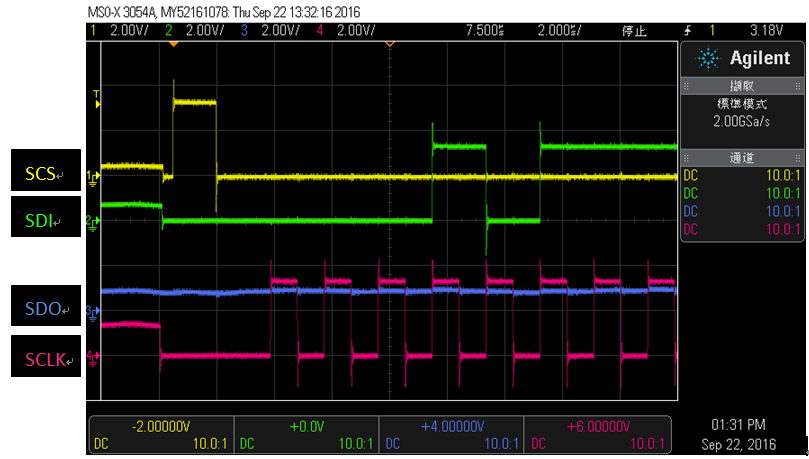

When Ambient temperature = 25degC : The waveform is good.

When Ambient temperature = 85degC : The SDI(IC SDO) is bad. It can't feedback any signal and can't start up.

If we are change chamber temperature =79 degC. It will restore.

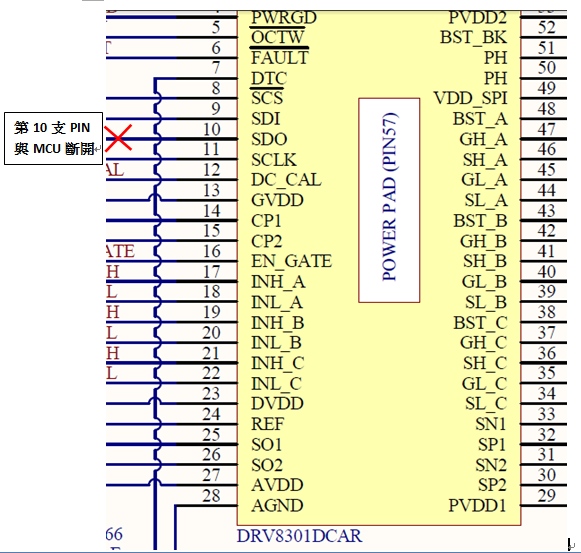

If we are cut pin10(DRV8301). When 85degC. same result.

over 7 years ago

0 Luis Riveros over 7 years ago

TI__Expert 4435 points

Hello Pao Wu,

Our experts have been notified and should reply soon. Thank you

0 Pao Wu over 7 years ago in reply to Luis Riveros

Intellectual 920 points

Hi,

I need you help. thanks.

Do you have any suggest ??

It can't work run over 80degC.

0 Rick Duncan over 7 years ago in reply to Pao Wu

TI__Guru** 114905 points

Hi Pao,

What are the states of the nOCTW and nFAULT signals?

0 Pao Wu over 7 years ago in reply to Rick Duncan

Intellectual 920 points

Hi Mr.Duncan,

FYI. Please help to check this issue. thanks.

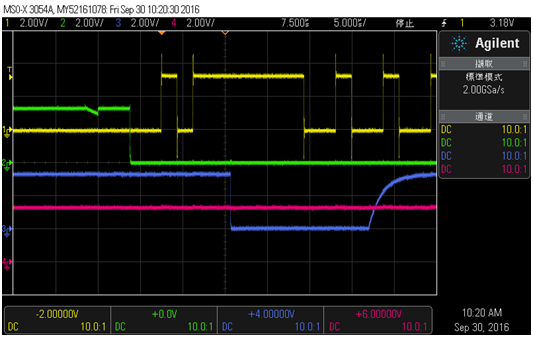

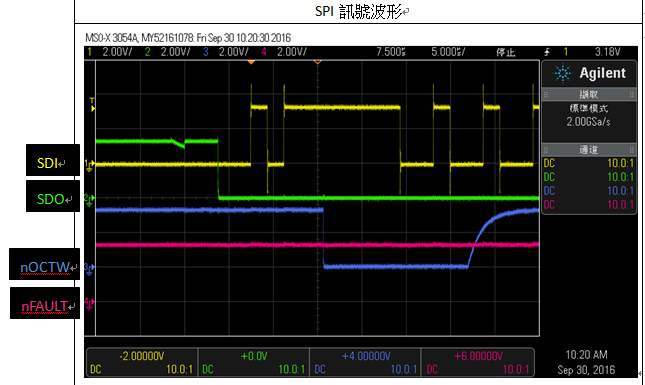

@25degC :

@85degC

0 Rick Duncan over 7 years ago in reply to Pao Wu

TI__Guru** 114905 points

Hi Pao,

We will investigate further and reply soon.
Please ask the customer to confirm VDD_SPI and PVDD1 voltages are correct during this event.

0 Pao Wu over 7 years ago in reply to Rick Duncan

Intellectual 920 points

Hi,

Sorry for late.

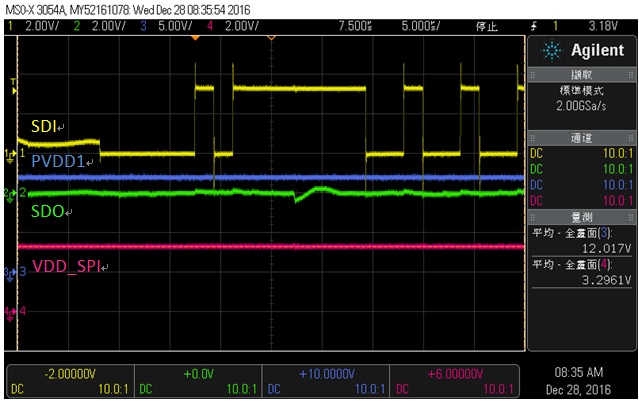

DRV8301 25degC vs 85degC，PVDD1 and VDD_SPI signal waveform :

When 25degC :

When 85degC

Result : It haven't different.

DRV8301 : 25degC vs 85degC，nOCTW and nFAULT signal waveform

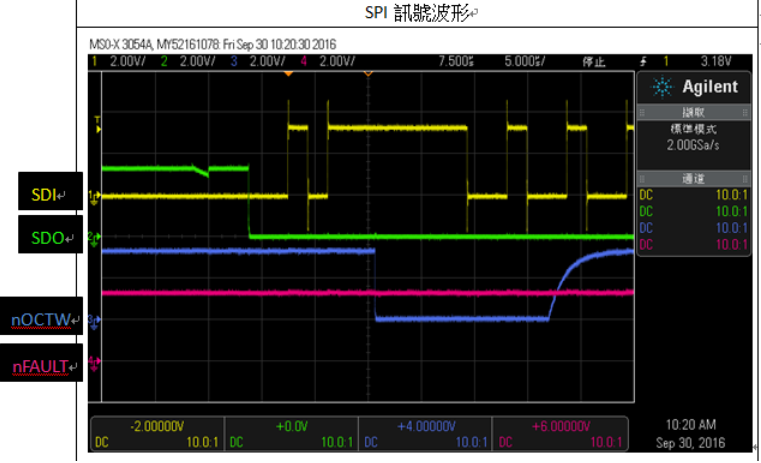

When 25degC

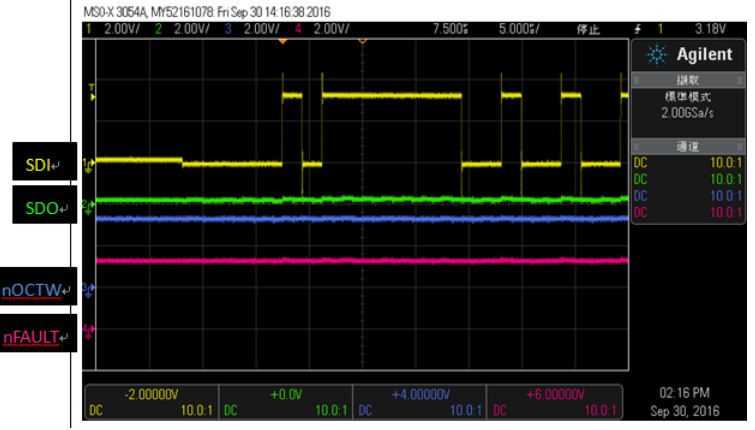

When 85degC

Do you have any test waveform could share to us when 85degC or higher??

Thank you for your great support.

0 Pao Wu over 7 years ago in reply to Rick Duncan

Intellectual 920 points

Hi Rick,
I has measure VDD_SPI and PVD voltage waveform, Please help to check this issue.
Thanks.

0 PYTsai over 7 years ago in reply to Pao Wu

TI__Genius 9325 points

Hi Rick,

Can you help have a look at this, customer push us very hard.

PY Tsai

Analog FAE

0 Phil Beard over 7 years ago in reply to PYTsai

TI__Expert 4650 points

Hi Pao,

In your testing above, have you been able to read the SPI registers at room temperature after the device comes out of the 85degC test?
In your room temperature test it looks like nOCTW is pulsed low. Are you able to read the SPI registers and determine what fault is being reported by this pin?
In your 85degC test, what is the voltage measured on nSCS? Is this being pulled low correctly at high temp?

0 Pao Wu over 7 years ago in reply to Phil Beard

Intellectual 920 points

Hi Phil,

Yes, If temperature drop lower 80 degC, It will recovery and can read the SPI registers.

Do you have any hgiher 85degC temperature test waveform, could share to us??

Is this device can working during -40~125degC, right??

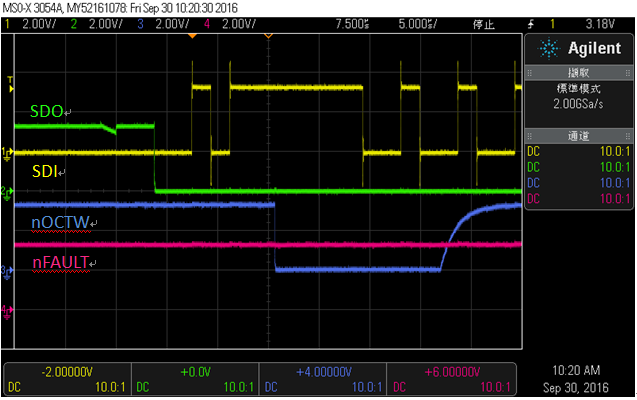

25degC

85 degC

0 Phil Beard over 7 years ago in reply to Pao Wu

TI__Expert 4650 points

Hi Pao,

The Recommended Operating Conditions for this device are between -40 and 125degC. However, if the internal temperature of the device die ever exceeds 150degC, the device will shutdown.

Are you able to confirm the fault being reported by the nOCTW pin? If you read the STATUS Registers after the DRV8301 is removed from the Hot Temp test, are any of the FAULT bits set?
