PMP10949: Looking for a isolated series resonant converter design for 24VDC to 125AC/1MHz

Sham

Part Number: PMP10949

Guys,

Is there any single chip solution to develop 120VAC (1MHz) from 24VDC?

I am looking to develop an isolated series converter design with MIC2168

I am looking to develop the below circuit
• Vin=24VDC
• Vout=120VAC, 1MHz
• Max power out at 100% duty = 7.5W (load resistance 100 ohm)

Min power out at 1% - 0.3W

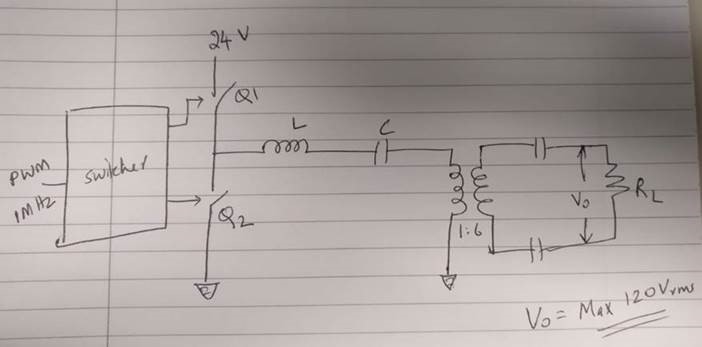

Sample schematic is below.

over 5 years ago

0 Sheng-yang Yu1 over 5 years ago

TI__Expert 3640 points

Hi Shameer,

MIC2168 is a non-TI part therefore we are not able to support this thread.

Regards,
Sheng-Yang Yu

0 Sham over 5 years ago in reply to Sheng-yang Yu1

Prodigy 90 points

Sorry for the confusion. I am looking for an alternative to MIC2168 from TI

0 JohnFullilove over 5 years ago in reply to Sham

TI__Expert 5120 points

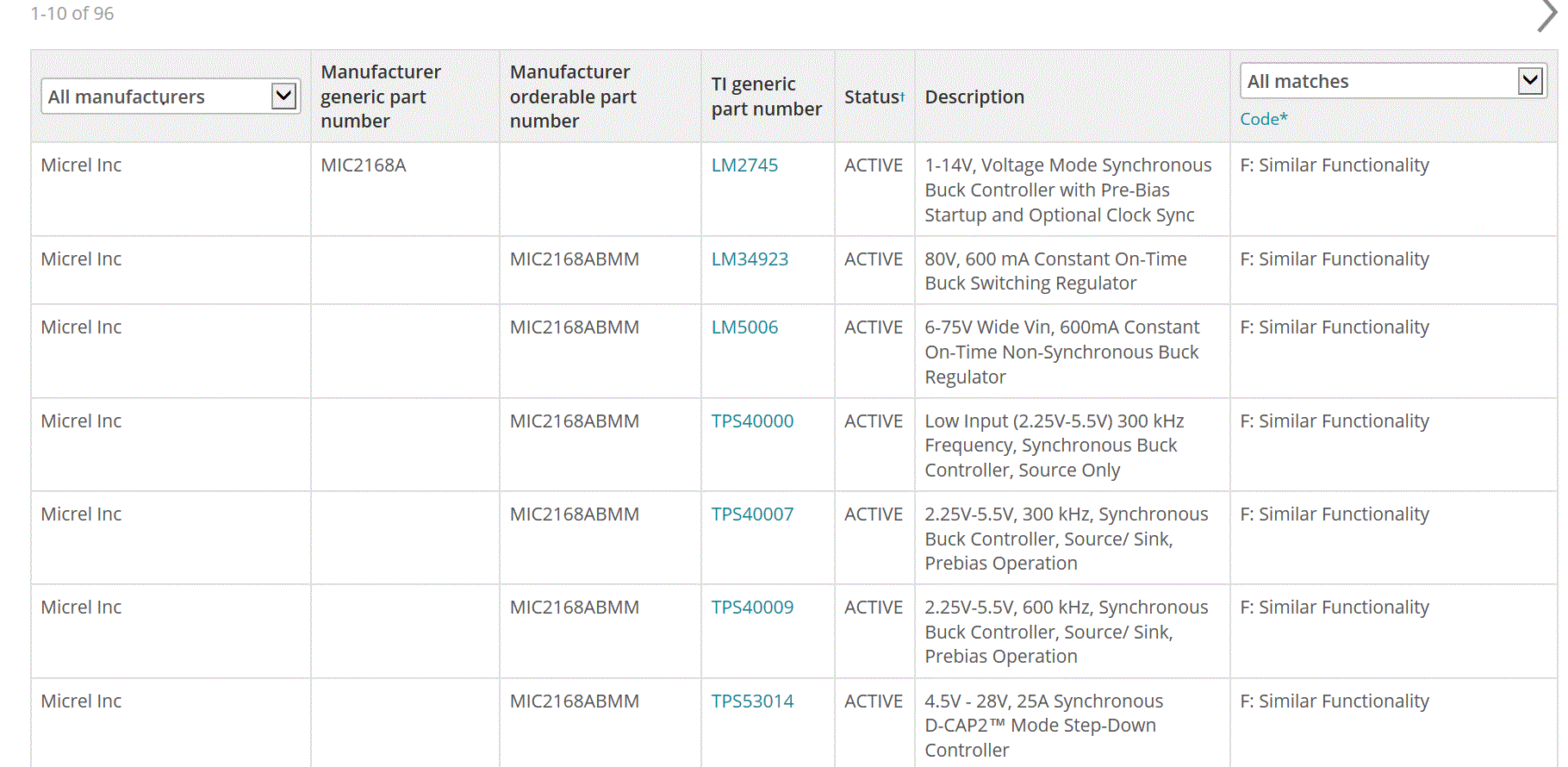

Hello Shameer, per our TI cross reference, I was able to identify some potential TI devices that you may be able to use as an alternative to the MIC2168. Please see below.

0 JohnFullilove over 5 years ago in reply to JohnFullilove

TI__Expert 5120 points

0 Sham over 5 years ago in reply to JohnFullilove

Prodigy 90 points

Hello John,

Thanks for the list. I looked at it. I am not seeing any app not for these ICs which says I can use it as half bridge controller
