TAS2563: Amplifer - Audio forum - Audio

Audio forum

State TI Thinks Resolved
Locked Locked
Replies 8 replies
Answers 4 answers
Subscribers 30 subscribers
Views 349 views
Users 0 members are here

Support feedback

Options

Priyanka Kanale

Prodigy 20 points

Part Number: TAS2563

Tool/software:

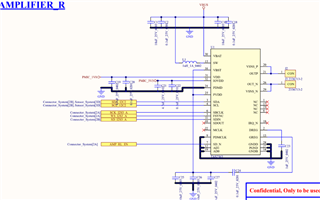

Our company specializes in AR & VR glasses. We have used the TAS2563 Amplifier in our latest AR glasses design, and I have attached the design for your reference. We would be grateful if you could verify the design and let us know if any modifications are required. Your expertise in this area would be invaluable to us.

7 months ago

0 Ore Ogundana 7 months ago

TI__Genius 10305 points

Hey Priyanka,

Here is my comment on this schematic:

pull SDA and SCL to the IOVDD of the system. below is an example from this App report:

Regards,

Ore.

0 Priyanka Kanale 6 months ago in reply to Ore Ogundana

Prodigy 20 points

1. In the TAS2563 amplifier reference schematic, a Schottky diode is connected between VBAT and VBST. What is its purpose? Kindly confirm whether we should include this in our design.

https://ibb.co/Ng9trYC7

2. If the PDMCLK pin is not in use, what should we do?

0 Ore Ogundana 6 months ago in reply to Priyanka Kanale

TI__Genius 10305 points

Hey Priyanka,

The diode use is explained in the pdf doc on the product page that talks about how to use external pvdd supply to the IC. Check page 3. It's an optional diode but it would help to prevent reverse current if pvdd comes on before vbat.

Pdmck and pdmd pins can be left floating if not in use.

Regards,

Ore.

0 Priyanka Kanale 6 months ago in reply to Ore Ogundana

Prodigy 20 points

Hi Ore,

Thanks for sharing the details.

Under what circumstances would the MCLK pin be used? Kindly confirm.

0 Priyanka Kanale 6 months ago in reply to Priyanka Kanale

Prodigy 20 points

Hello Ore

We didn't find the reference for what you suggested so, kindly confirm whether its is better to place this diode in schematics?

0 Ore Ogundana 6 months ago in reply to Priyanka Kanale

TI__Genius 10305 points

Hey Priyanka,

This would be if the device is operating in master mode with respect to another device that could share that MCK with the IC providing an MCK. So, if there's a tas2563 master and tas2563 slave in one system, the master device would provide one MCK that would be shared.

Look up this pdf for tas2563.

Regards,

Ore.

0 Priyanka Kanale 6 months ago in reply to Ore Ogundana

Prodigy 20 points

Hi Ore,

Hope you are ding well.

Regarding the PDMCKL pin, it is connected to ground instead of being left NC. Will this cause any issues? Kindly confirm.

0 Ore Ogundana 5 months ago in reply to Priyanka Kanale

TI__Genius 10305 points

It should not cause any issues if there's no PDMD input to the device. Both could be connected to GND.
