PCM5310: BCLK and LRCK

toshi-e2e

Other Parts Discussed in Thread: PCM5310

Hi all,

When there are glitches or steps at the rising edge or falling edge on BCLK or LRCK,
how much will it allowed variation of the time and voltage of the glitch?

Regards,
Toshi

over 9 years ago

0 toshi-e2e over 9 years ago

Genius 4850 points

Hi all,
Is there the schmitt circuit on the input of BCLK/LRCLK?
If yes,
What voltage is the Vth/Vtl?
What is the minimum pulse duration?

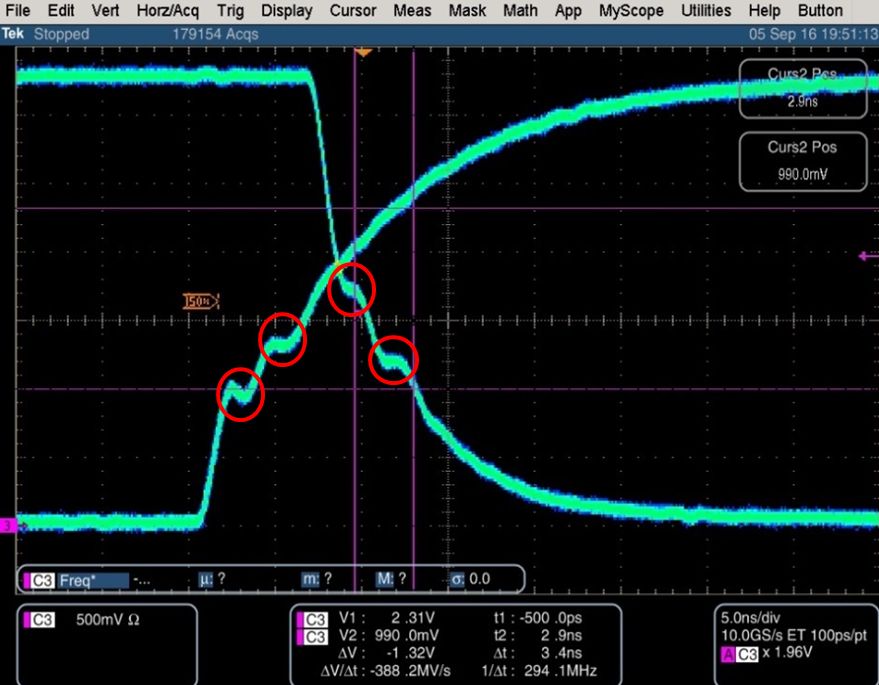

Is the waveform acceptable?

Regards,
Toshi

0 Justin Bohr over 9 years ago in reply to toshi-e2e

TI__Mastermind 28020 points

Hi Toshi,

I don't have specifics on the timing specs of these lines. This waveform is most likely acceptable, and probably only as bad when the probe is used to measure the signal, adding capacitance to the trace that the part must drive. Is this with the PCM5310 in master mode?

Justin

0 toshi-e2e over 9 years ago in reply to Justin Bohr

Genius 4850 points

Hi, Justin-san,
thanks for your reply.
PCM5310 is operated in slave mode.

Thanks and regards,
Toshi
