LMK03806: Output clock does not lock fail.

Seung-il BAEK

Prodigy 10 points

Part Number: LMK03806
Other Parts Discussed in Thread: LMK04806

Hellow

I designed LMK03806 board.

and using TICS Pro generate register.

problem does not locked clock.

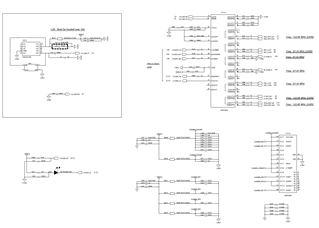

schematic is below

input frequency : 30.72MHz TCXO and Vp-p is 3.3V

so i reduce input clock Vp-p 1.9V

i don't know why clock does not locking.

please check the schematic and register setting.

220808-Speed duo 3.5G.tcs

Thank you.

over 1 year ago

0 vicente flores prado over 1 year ago

TI__Genius 12841 points

I'll look more into this tomorrow.

Regards,

Vicente

0 vicente flores prado over 1 year ago in reply to vicente flores prado

TI__Genius 12841 points

Hi Seung,
I noticed there are some issues with the TICSpro profile for this device. I also was having trouble using the configuration file you provided so I replicated myself.

220808-Speed duo 3.5G (CanLock).tcs
Another solution that worked for me was using using LMK04806 part profile which is a spin on LMK03806, only difference being that LMK04806 has an extra PLL. So what I did was I disabled all the options for the second PLL and I was able to generate a 61.44Mhz output and lock without an issue. I was able to program the LMK03806EVM using the LMK04806 part profile on TICSpro. Attached you will find the configuration file I used for LMK04806 where only one PLL is used.

CustomerTest.tcs

Regards,

Vicente
