LMK01010：PAD mounted

Please Help me.

I need information of pad dimensions.

I want to know size of pad dimensions.

http://www.tij.co.jp/product/jp/LMK01010/quality

Best regards.

Ryuji

Are you asking for the dimension size of the exposed metal pad on the package for each of the 48 pins? Or the ground DAP (die attach pad), or all. Or is it recommended footprint?

I notice that right now the footprint info for the LMK01010 on our datasheet is showing "RHS" package is actually in correct... the pads are square, not rounded. I will check for correction.

73,
Timothy

Hi, Timothy

Thank you for your reply.

He has  three questions  about LMK01010 .

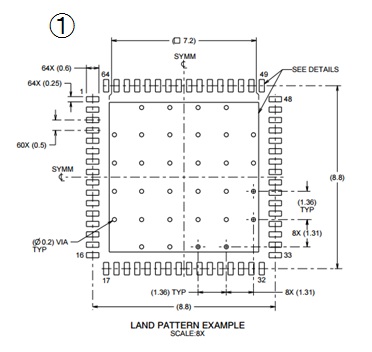

1.Do you know size of the land pattern example ?

2.Do you know size of the solder mask details ?

3.Do you know size of the solderpaste  example?

We would like to know like below for LMK01010.

This picture is LMK0482x.

Best Regards.

Nori

Ok thanks, I understand. I will post an update on progress for such info soon.

73,
Timothy

Hi, Timothy.

Thank you for your reply.

We will wait for your anser .

Best Regars.

Nori.

Hi, Timothy.

Thank you for your valuable infoｒmation.

I will immediately answer to our customer.

Best, Regars.

Nori.

This shouldn't impact the customer at all, but we updated the DAP size from 5.1 +/- 0.05 to 5.1 +/- 0.1.

73,
Timothy
