LMX2487E-EVM: TICS Pro PLL GUI

Shoko

Intellectual 745 points

Part Number: LMX2487E-EVM
Other Parts Discussed in Thread: LMX2487E,

Hello,

I'm going to study LMX2487E using LMX2487E-EVM and TICS Pro.

(I have downloaded TICS Pro of latest version from TI website. )

But, it does not write Resistor value of ONLY "RF Divider R value" of PLL mode.

Command of Only "RF Divider R value" is not come up in the command prompt of PLL mode.

It can write Resistor on "RF Divider R value" of User Control and Raw resistors mode.

Please let me know how to solve the problem.

Please advise.

Shoko

over 3 years ago

0 Noel Fung over 3 years ago

TI__Guru* 81550 points

Hi Sakaguchi-san,

Right, this is a bug, I will fix it and let you know once this is done.

0 Shoko over 3 years ago in reply to Noel Fung

Intellectual 745 points

Hi Noel san,

Thank you for response. I thought so...

I'm looking forward to your reply!

Shoko

0 Noel Fung over 3 years ago in reply to Shoko

TI__Guru* 81550 points

Hi Sakaguchi-san,

Please try this.

1. Download the following zip file in your PC.

1803.LMX2487E.zip

2. Run TICS Pro, in the menu bar, click Select Device

3. Click Import User Device

4. Select the zip file

To use the file:

1. Click Select Device

2. Click User Devices

3. Select LMX2487E

0 Shoko over 3 years ago in reply to Noel Fung

Intellectual 745 points

Hi Noel san,

Thank you for quick response!

I downloaded and imported the zip file to TICS Pro.

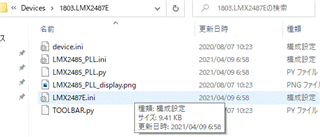

But the error is occurred as the following image when I select User device.

(Actually, there is not "1803.LMX2487E.ini" file in the directory... )

Please let me know what should I do?

Thanks, Shoko

+1 Noel Fung over 3 years ago in reply to Shoko

TI__Guru* 81550 points

Hi Sakaguchi-san,

The zip file name should be LMX2487E.zip, remove "1803." in the file name. E2E added this number to the file.

0 Shoko over 3 years ago in reply to Noel Fung

Intellectual 745 points

Hi Noel san,

Thank you for your reply.

This problem was resolved.

Thanks, Shoko
