TVP70025i sync timing

Clear As Mud

Other Parts Discussed in Thread: TVP70025I

Hi,

I'm a newbie to video... I'm trying to wrap my head around TVP70025i sync timing. Examining the datasheet, it seems to imply that the discrete sync signals:

HSYNC <- acts like a line valid signal

VSYNC <- acts like a frame valid signal

Is this correct?

over 14 years ago

0 Larry Taylor over 14 years ago

TI__Genius 16810 points

Correct, HSYNC occurs once per line "n" pixels prior to start of active video. VSYNC occurs once per field "n" lines prior to start of the first active line. "n" varies depending on the video or graphics format. With interlaced formats (480i, 1080i) a complete frame is comprised of two interlaced fields, with each field having its own VSYNC.

0 Clear As Mud over 14 years ago in reply to Larry Taylor

Prodigy 20 points

Hi Larry,

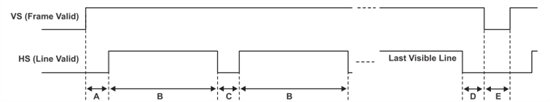

Thank you for the response. Just to make sure I understand correctly. Is this diagram an accurate representation?

-Mud
