ADC12DJ5200RFEVM: Change from external to onboard clock

ttd

Dear Technical Support Team,

I'd like to change from external to onboard clock for ADC12DJ5200RFEVM.

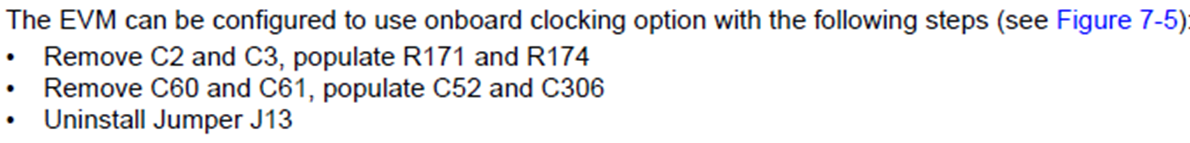

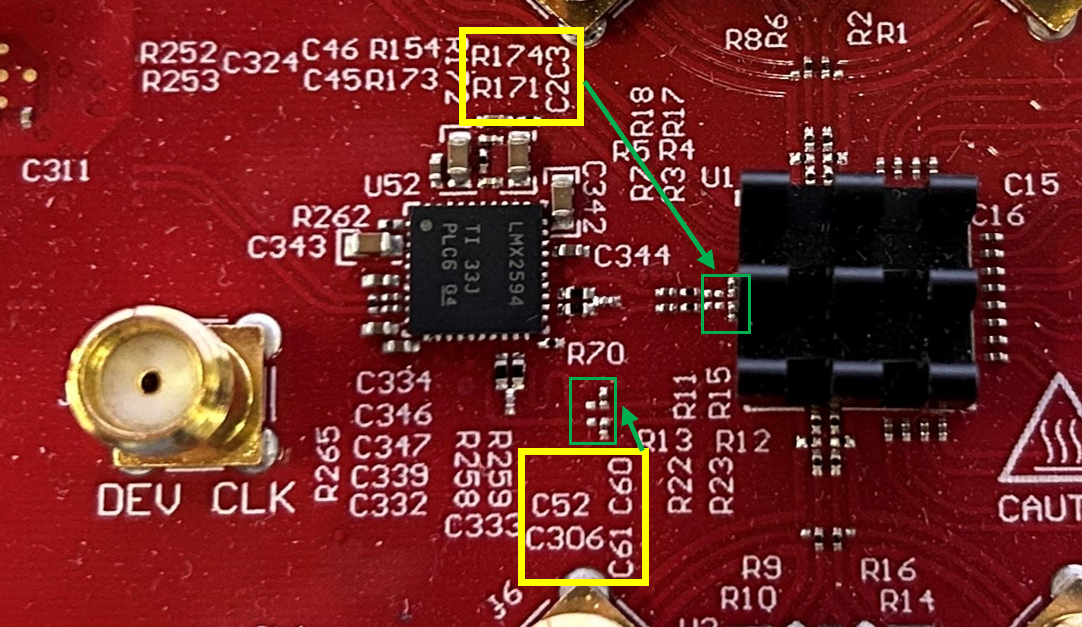

Regarding C2, C3, R171, and R174, they are marked on the silk screen. Are these the locations indicated by the green boxes?

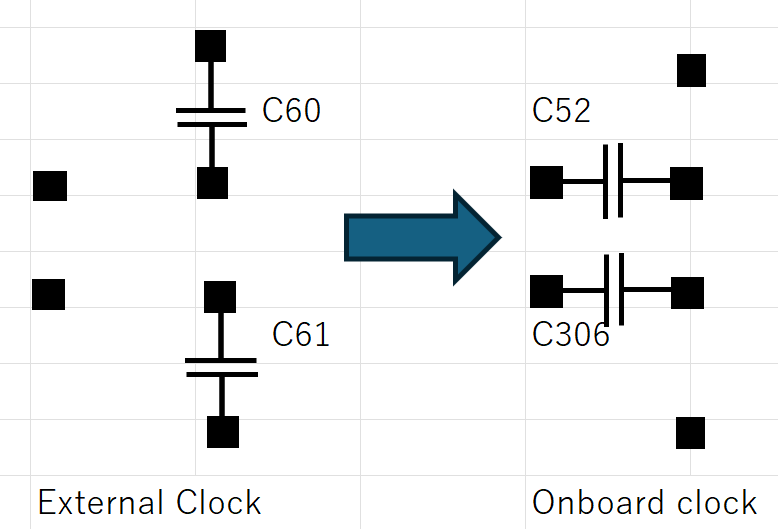

Are C60, C61, C52, and C306 also the locations indicated by the green boxes? Also, is my interpretation of the diagram correct?

Best Regards,

ttd

0 Rob Reeder 3 months ago

Hi TTD,

Yes, this is correct. You can also view the assembly file pdf in the design file zipped download to make sure you have the right location REFDES.

Regards,

Rob

0 ttd 3 months ago in reply to Rob Reeder

Hi Rob,

Thank you for your answer.

How about size for R171,R174 and C52,C306.

Bom list says these are 0201(inch). is it correct?

Best Regards,

ttd

0 Rob Reeder 3 months ago in reply to ttd

Hi TTD,

Yes, 0201 size is correct. However, a skilled solder technician or engineer can use 0402 size components as well to perform these modifications.

Regards,

Rob
