Hi,

I'm using a TSW54J60EVM and a TSW14J56EVM to evaluate the ADS54J60 and the LMH6401. Using High-Speed Data Converter Pro v4.50 with the default firmware and configuration files, I get the following configuration parameters :

JESD IP Core_CS = 2

JESD IP Core_N = 14

JESD IP Core_Ntotal = 16

Does it mean the board is in 14-bit mode with 2 control bits?

Thanks,

Patrice

over 7 years ago

0 jim s over 7 years ago

TI__Guru* 91947 points

JESD parameters.pptxPatrice,

By any chance, did you select an ADS54J40 file instead of ADS54J60 file in HSDC Pro? When I select "ADS54J60_LMF_8224" in the GUI, I get parameters reflecting a 16 bit device as shown in attached file. Yours look likes a 14 bit part was selected.

Regards,

Jim

0 Patrice Plante over 7 years ago in reply to jim s

Intellectual 470 points

Hi Jim,

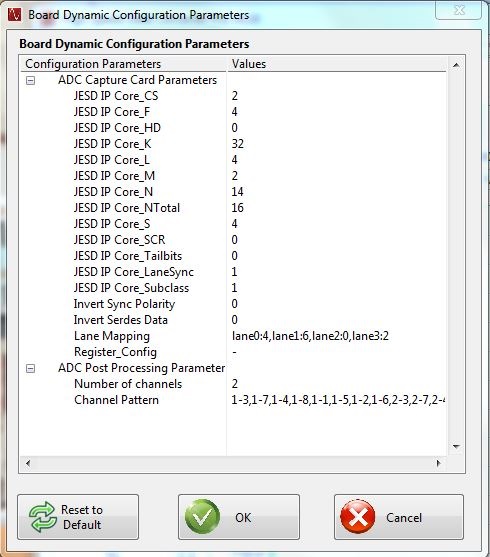

We are using the "ADS54J60_LMF_8224" configuration file in the GUI. See image below.

Thanks,

Patrice

0 jim s over 7 years ago in reply to Patrice Plante

TI__Guru* 91947 points

Patrice,

I noticed you are using an older version of HSDC Pro and the ini file may have had a problem. Try downloading the latest version (4.7) from the web and repeat this test.

Regards,

Jim

0 Patrice Plante over 7 years ago in reply to jim s

Intellectual 470 points

Jim,

We have upgraded to 4.7 and the Board Dynamic Configuration Parameters panel shows that the eval board is now in 16-bit mode! We are investigating the changes between 4.1 and 4.7 that could explain why the board is now working into 16-bit mode.

Regards,

Patrice
