ADC10D1500RB: Hardware error occured: WvBoardEnum call returned 'false'

user6091466

Part Number: ADC10D1500RB

Hello, TI specialists.

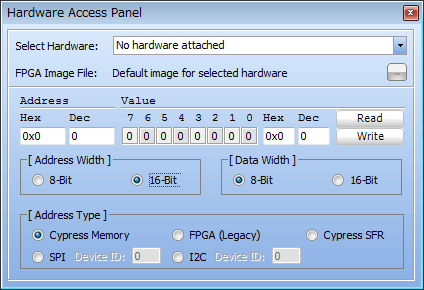

When we connect the reference board to the Wave Vsion 5.0.6.465, hardware error occures.

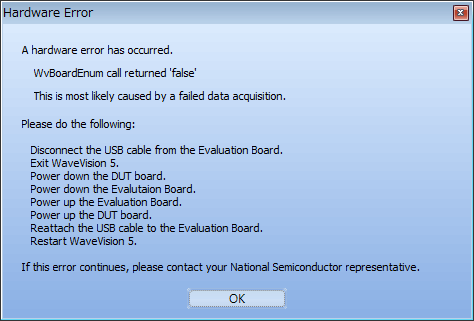

It says "WvBoardEnum call returned 'false' ".

We have have tried on win7 and winXP (win XP is in the Virtual Box), however ,same probrem is occured.
In the device manager, the board seems connected successfully.
We use power supply that came with the board and power indication LED (LD10) is lit up.
Is the board broken? Or is there any jumper settings we missed?

over 5 years ago

0 dBrock over 5 years ago

TI__Genius 12780 points

Hello,

We are taking a deeper look into your question, and will be back with you soon.

Best Regards,

Dan

0 David Chaparro over 5 years ago

TI__Genius 14761 points

Hello,

Can you check the power supply and make sure that it is rated for 12 V and at least 1.5 A to 2 A? Sometimes if there is not enough current being supplied the computer will connect to the board, but WaveVision will not recognize it.

Best Regards,

David

0 user6091466 over 5 years ago in reply to David Chaparro

Prodigy 100 points

Hello,

I appriciate your support.

Yes, the power supply is rated for 12V and 3.0A.

When the board is switched on, input voltage on J12 connector is 12.18V and the current flowing into the board is ~1.2A.
Here is addittional information,
GND(TP10) to 3V3IO(J6) : 3.345V
GND(TP10) to3V3USI1(J13) : 3.418V
GND(TP10) to5V0USI1(J13) : 4.93V

Best regards,
Hiroaki Yano

0 David Chaparro over 5 years ago

TI__Genius 14761 points

Hello,

Seeing as the power being supplied is efficient the next thing I can think of is that it may be a driver issue on the computer. Here is a link for the WaveVision driver installation guide. Also, I would suggest trying to add a jumper on J155 and try to see if it will connect to WaveVision.

Best Regards,

David

0 user6091466 over 5 years ago in reply to David Chaparro

Prodigy 100 points

Hello,

Thanks for your cooperation.

Do you mean the driver installation guide of here?

I uninstalled my WaveVision5 and driver, then re-install them following the guide but same error message appeared.

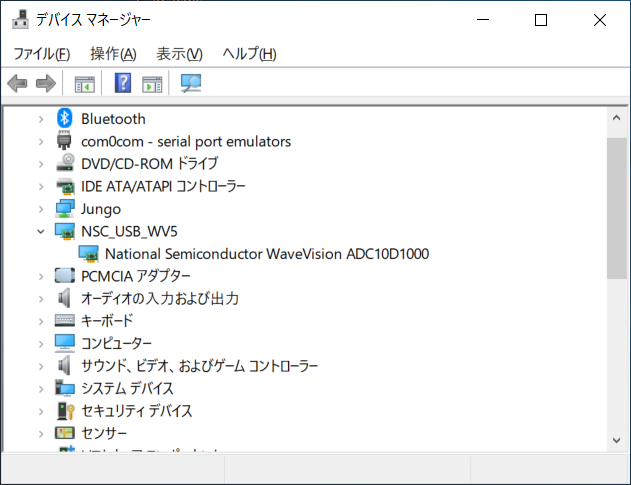

In the device manager on WinXP(VirtualBox), I confirmed that it recognizes the board under the NSC_USB_WV5 class as mentioned in the guide.

I also add a jumper on J155, but, nothing changed.
I tried remove both J155 and J156. There is same error.

Looking forward to your reply.

Best Regards,
Hiroaki Yano

0 Neeraj Gill over 5 years ago in reply to user6091466

TI__Mastermind 20541 points

Hi Hiroaki,

Do you have access to windows10 PC? If yes please try the attached instruction and let us know if you were able to connect to the board.

Regards,

Neeraj Disable Driver Signing Enforcement Windows 8 10 2019.pdf

0 user6091466 over 5 years ago in reply to Neeraj Gill

Prodigy 100 points

Hello Neeraj,

Thanks for your advice.

I connected my board and installed the driver on my windows10 PC following your instruction.
The board is certainly recognized as mentioned in the manual, however the device name is not same.
(My board is ADC10D1500)

And then I runned WaveVision5 on windows10, it shows same error message "Hardware error occured: WvBoardEnum call returned 'false'".

I'm looking forward to your reply.

Best Regards,
Hiroaki Yano

0 Neeraj Gill over 5 years ago in reply to user6091466

TI__Mastermind 20541 points

Hi Hiroaki,

Sorry for the trouble. May be it is a board issue then. I would recommend your return the back and get a new board.

Regards,

Neeraj
