DAC clock is not set to 8GHz.

Louis Han15

Genius 4680 points

Part Number: DAC38RF86EVM

Hello

I using the DAC38RF8x GUI.

DAC clock is not set to 8GHz.(Invalid PLL Frequecy)

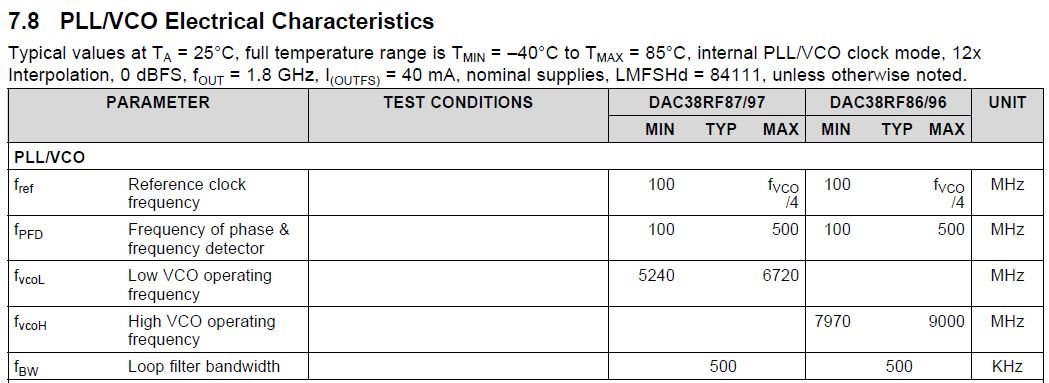

The data sheet states that 8Ghz is possible, but why can not it be set?

Regards.

over 5 years ago

0 Ebenezer Dwobeng over 5 years ago

TI__Genius 9695 points

Hello,

See this thread: e2e.ti.com/.../723102

Thanks,
Eben.

0 Louis Han15 over 5 years ago in reply to Ebenezer Dwobeng

Genius 4680 points

Hi Eben

How do I set up 8Ghz?
If Ref Feq is set to 116, 8Ghz can not be set.

Regards.

0 Ebenezer Dwobeng over 5 years ago in reply to Louis Han15

TI__Genius 9695 points

Hi,

In your case, just change the reference clock in GUI from 125MHz to 135MHz so that the GUI will not throw an error. Only change the reference clock in GUI but keep the actual physical clock frequency you provide to the device the same (provide 500MHz to SMA J4).

Thanks,
Eben.
