ADS7953: reference and output structure

Part Number: ADS7953

Hi team,

When selecting ADS7953, have below queries:

1) VREF reference is provided externally. According to the specification, the full range range of analog input voltage can be VREF or 2 * VREF. How to choose VREF or 2 * VREF

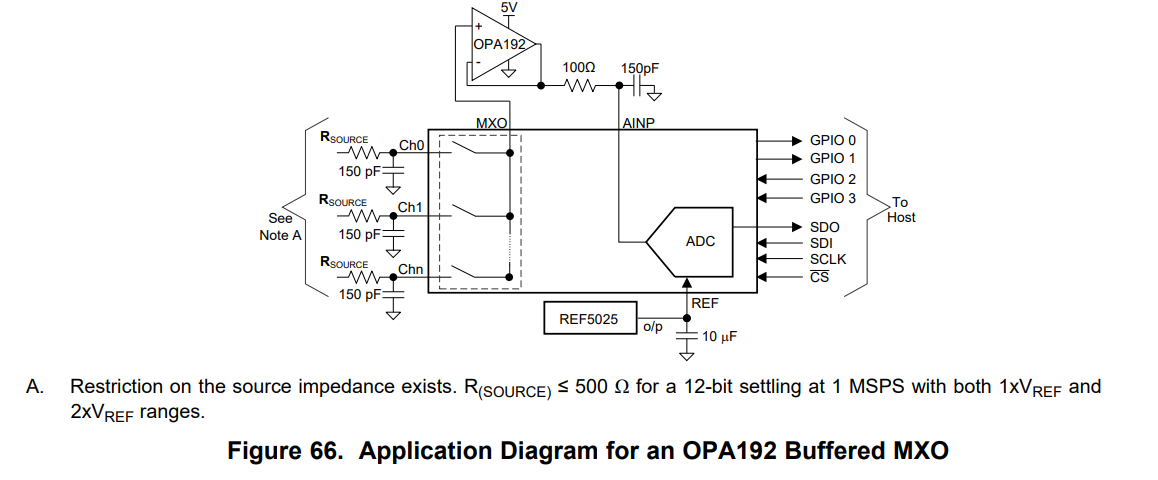

2) Mxo output signal can be directly connected to AINP pin, or through primary follower and RC filter. How to select these connection modes?

Best Regards

  • Hello,

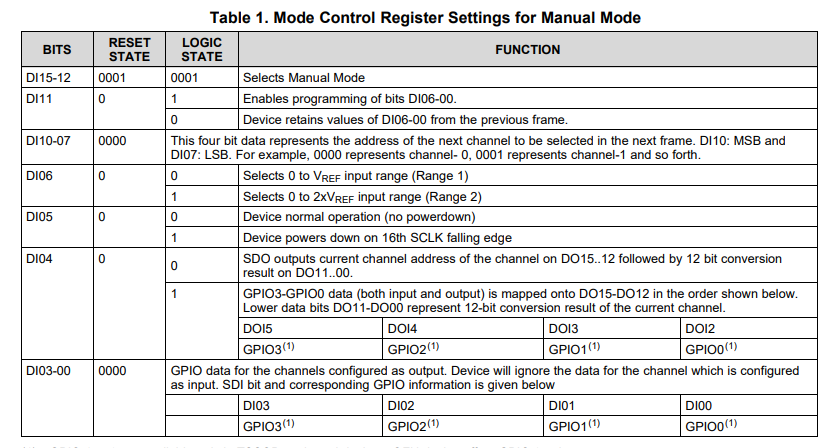

    1. The input range is selected through the Control Register settings. below is an example using Manual Mode. DI6 needs to be set high to select 2*VREF
