Hi,

I managed to successfully interfaced, AFE4300 EVM to arduino by removing the Mbb3 board, and my code worked fine. Then i translated all that to a pcb, with Atmel chip and AFE4300, but for some reason i cannot communicate with AFE4300 chip..

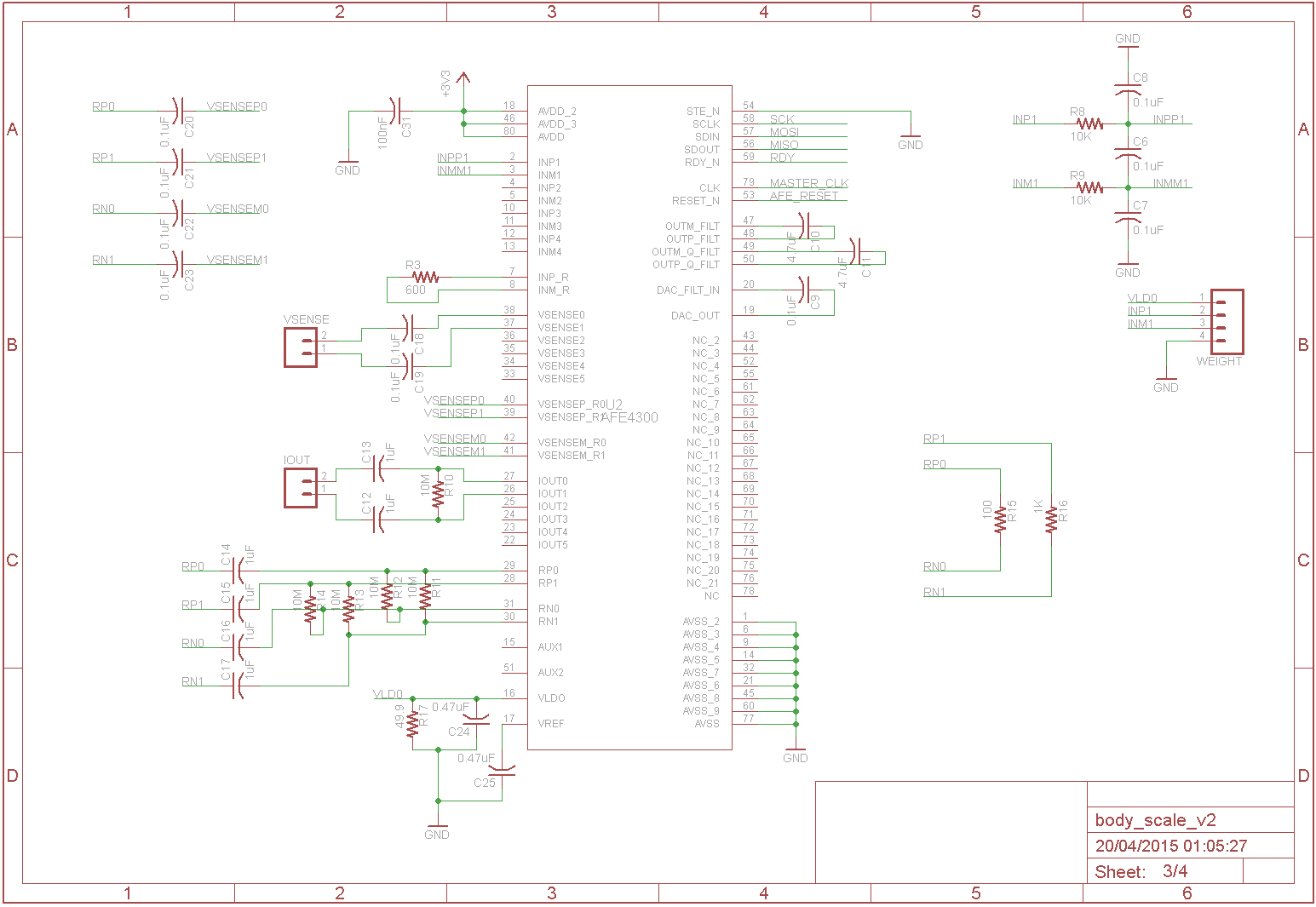

for reference i am attaching my schematic with this email.

over 11 years ago

0 Amy Schnoor over 11 years ago

TI__Mastermind 18285 points

Malik,

We have received your post and hope to have a response back to you soon.

0 Amy Schnoor over 11 years ago in reply to Amy Schnoor

TI__Mastermind 18285 points

Malik,

Have you tried looking at the SPI lines on the working board and compare that to the board you having the communication problem on?

0 malik adeel over 11 years ago in reply to Amy Schnoor

Prodigy 140 points

yes,

I have and am getting almost similar signal waveforms on scope... except miso pin.. it constantly seems to be moving up and down. like its floating.

any reasons for that ?

0 Amy Schnoor over 11 years ago in reply to malik adeel

TI__Mastermind 18285 points

There could be many reasons, but nothing to do with the AFE. Have you verified connectivity on the layout? Sanity check all of your connections.
