DLPC6540: manual warp command(0x34~0x39) doesn't work on software version 4.4.0

xinmin wu

Part Number: DLPC6540

Hi,

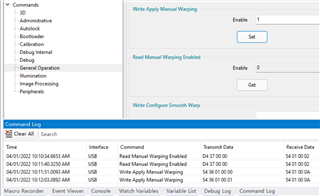

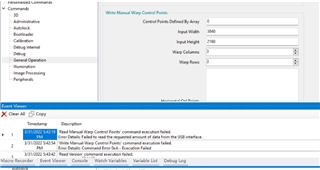

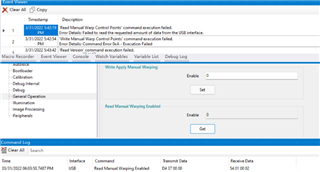

This day I test DLPC6540 on software version "dlpc6540_lpcw_v4.4.0", and I found that the manual warp commands (0x34~0x39) doesn't work use with Composer control 15.1.0.37.

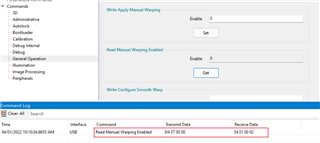

The "DLPC6540_Software_v4.4.0_Release_Notes.pdf" note that, the command 0x37 change to use 0x36, but the Composer control 15.1.0.37 with DLPC654x display controller still send the 0x37 on "Read Manual

Warping Enabled" button "Get". It is the Composer control 15.1.0.37 need to be upadte ?

Please help me and waiting for your respond.

Thank you !

over 3 years ago

0 Austin Snyder over 3 years ago

TI__Genius 12785 points

Hello User,

Welcome to the E2E forum and thank you for your interest in DLP technology!

Thank you for bringing this to our attention. Please allow us to investigate this warping command and respond to you within the next seven days.

Regards,

Austin

0 Akhil Guntumadugu over 3 years ago

TI__Expert 3825 points

Hi User,

You need to generate the command layer form the Tools menu in control program with the appropriate cfg file corresponding to v4.4.0 for the changes mentioned to be reflected

Also Please ensure the product selected in Control Program is DLPC654x controller.

Regards,

Akhil

0 xinmin wu over 3 years ago in reply to Akhil Guntumadugu

Prodigy 30 points

Yes, I sure the product selected in Control Program is DLPC654x controller. I generate the command layer but it did not resolve my issue.

0 Akhil Guntumadugu over 3 years ago in reply to xinmin wu

TI__Expert 3825 points

Hello user,

Could you please share the cfg file you have selected for generating the command layer. for us to anlayze.

Regards,

Akhil

0 xinmin wu over 3 years ago in reply to Akhil Guntumadugu

Prodigy 30 points

Here is the cfg file:

dlpc654x_commands.cfg

0 John McKnight over 3 years ago in reply to xinmin wu

TI__Expert 7035 points

Hello Xinmin,

Thank you and we will be sure to further look into this matter.

Regards,

John

0 Akhil Guntumadugu over 3 years ago in reply to xinmin wu

TI__Expert 3825 points

Hi Xinmin

After inspecting the attached cfg file. it is corresponding to version v3.3.0. Please use the latest compatible cfg file corresponding to version v4.4.0

Regards,

Akhil

0 xinmin wu over 3 years ago in reply to Akhil Guntumadugu

Prodigy 30 points

Hi Akhil

The question is where I can download the the latest compatible cfg file corresponding to version v4.4.0 ?

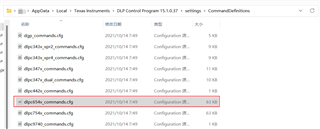

The cfg file I share to you is in the Composer control 15.1.0.37 installed path:

The worst is, I send the i2c commands(0x34~0x39) by mcu system, the projector display warping does not take effect。But I send these same i2c commands by mcu to DLPC6540 V4.3.1, it is work and the projector display warping take effect.

0 John McKnight over 3 years ago in reply to xinmin wu

TI__Expert 7035 points

Hello Xinmin,

Thank you for this information. Please allow us some time to decide on how to resolve.

Regards,

John

0 Mayank Khandelwal over 3 years ago in reply to John McKnight

TI__Genius 9971 points

Hello Xinmin,

Can you share your email ID? We will reach out to you offline.

Regards,

Mayank

0 xinmin wu over 3 years ago in reply to Mayank Khandelwal

Prodigy 30 points

Hi Mayank,

My email ID is: wxm@rgb-display.com

0 John McKnight over 3 years ago in reply to xinmin wu

TI__Expert 7035 points

Hello Xinmin,

Thank you for your help. We will reach out to you for further conversations.

Regards,

John
