DLPC7540EVM: Mechanical DWG for the Front-end Board

Renan Santos Adriano

Part Number: DLPC7540EVM

Hello Team,

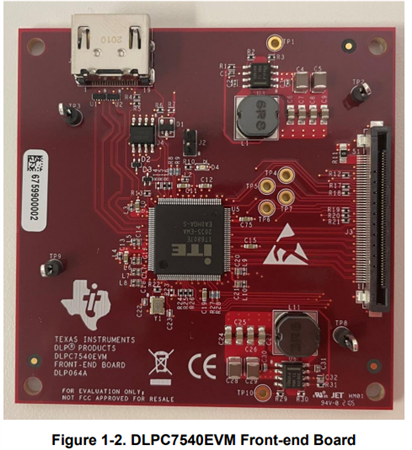

My customer is looking for the STL document for DLPC7540EVM Front-end Board(the picture in the attachment).

I found the STL document is for the formatter board of DLPC7540EVM in this e2e link (https://e2e.ti.com/support/dlp-products-group/dlp/f/dlp-products-forum/1094121/dlpc7540evm-design-file) . Hoping to have similar file for the Front-end Board.

Regards,

Renan

over 1 year ago

0 SHIVAKUMAR R over 1 year ago

TI__Expert 3020 points

Hi Renan,

Thank you for posting your query on E2E forums. I have assigned a member of our team to provide feedback and timeline.

Thanks,
Shivakumar

0 made4engineering over 1 year ago in reply to SHIVAKUMAR R

TI__Mastermind 27390 points

Hi Renan, I don't think this is already generated. I'll see what we can do about getting it

0 made4engineering over 1 year ago in reply to made4engineering

TI__Mastermind 27390 points

Here is the generated stl. Let us know if there are any problems

FrontEndBoard.stl

0 Zhiyu Deng over 1 year ago in reply to made4engineering

Prodigy 40 points

Hi made4engineering,

I am the customer Renan mentioned. Thanks for your effort. The design is quite good. However, it seems that the scale is wrong. Its length is about 3 meters, which is different from the real item. Could you please doublecheck the scale of it? Thanks for your effort.

Zhiyu

+1 made4engineering over 1 year ago in reply to Zhiyu Deng

TI__Mastermind 27390 points

I believe the scale is in inches. Convert accordingly on your end.
