DLPC6540: I need some information about DLPC6540.

zhixuan zhou

Part Number: DLPC6540

Hello, I would like to find information on color coordinate adjustment (CCA), hue saturation gain (HSG), color space conversion (CSC), dynamic black (DB), and keystone correction for the DLP6540 series. Could you please let me know where I can find this information? The software guide provides a general overview without specific implementation details.

over 2 years ago

0 Alexander Chan over 2 years ago

TI__Genius 9680 points

Hello Zhixuan,

Welcome back to the E2E forums and we hope to assist you with your questions.

Please give us some time to look into this question and try to find the information you are looking for.

Regards,

Alex Chan

0 Maxine Cabrasawan over 2 years ago

TI__Expert 3905 points

Hello Zhixuan,

From the DLPC6540 Programmer's Guide, color coordinate adjustment (CCA) can be enabled using opcode 40h, byte 2. Dynamic Black (DB) can be enabled with the same opcode 40h and byte 5. Color Space Conversion (CSC) uses opcode 22h, bytes 29-30. Image HSG commands can be found at opcode 49h, see Table 19-101. Keystone correction can be found with opcode 3Eh, byte 4. This register configures all edge blending commands.

Best,

Maxine

0 zhixuan zhou over 2 years ago in reply to Maxine Cabrasawan

Prodigy 40 points

HI，Maxine

Thank you for your response.I would like to know the specific usage or examples as I am unsure how to apply it with just a few opcode .

Best,

Zhou

0 Maxine Cabrasawan over 2 years ago in reply to zhixuan zhou

TI__Expert 3905 points

Hello Zhou,

The DLP LightCrafter Display GUI is a more user-friendly interface to send I2C commands; some of the commands are available there, such as CCA and keystone control.

However, if you wish to send the other commands, you will need to follow the SW Programmer's Guide Chapter 16 - Command Protocol for full details on implementing an external control to send commands. This is the protocol used by any external controller to control the DLPC6540 controller using any of the supported commands listed in the Programmer's Guide.

Best,

Maxine

0 zhixuan zhou over 2 years ago in reply to Maxine Cabrasawan

Prodigy 40 points

Hello Maxine,

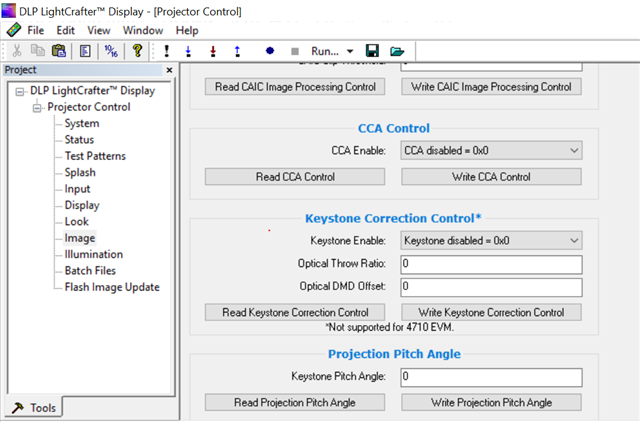

Yes, I know what you mean.I still wish there was a detailed explanation, such as the picture below.

Thank you very much for your help.

Best,

Zhou

0 Maxine Cabrasawan over 2 years ago in reply to zhixuan zhou

TI__Expert 3905 points

Hello Zhou,

I am glad I could be of service. Unfortunately, the information I listed above is the only resource we have for these topics. Let me know if you have any other questions. I will now close this thread.

Best,

Maxine
