DLPC4430: To edit project file for DDP4421

Hidenori Katagiri
Prodigy 225 points

Part Number: DLPC4430
Other Parts Discussed in Thread: DLP650LE

Tool/software:

Hi, TI.

This is a question for DDP4421 which is a little bit old controller but its spec is simmiler to DLPC4430.
I tried to edit DDP4421's project file with my DLP composer but it appears a warrning message and some issues.

The warrning message is [This release of DLP Composer (TM) may not be compatible with the current configuration map.]

The DLP composer versions I tried are 13.13 and 13.11.
By seeing SequenceSummary.txt file, the project file seems to have been editted by version 13.9.0.4557.
So, I would like to get try the version 13.9.
Where can I get the old version?
If possible, it would be helpful for me if you could send it.

Best Regard,

Hide

  • 0
    TI__Genius 11565 points

    Hello Hidenori-san,

    Which DMD are you using for the DDP4421 project?

    Regards,

    Lori

  • 0 in reply to Lori Wang
    Prodigy 225 points

    Hello Lori,

    Thank you for your reply.

    The DMD I'm using is DLP650LE (0.65 inch WXGA 2xLVDS).

    Let me know if you need anything else.

    Best Regards,
    Hide.

  • 0 in reply to Hidenori Katagiri
    Prodigy 225 points

    Hello Lori,

    I will descrilbe the issue I'm stucking.
    What I want is to change duty of segment in Light Control 7(3Seg) sequence as bellow.

    Red 175 -> 160 degrees
    Blue 56 -> 53 degrees
    Green 129 -> 147 degrees

    I have changed it just editing Duty Cycle Settings in Hybrid Configuration tab.


    Then, after I have tried to excute build, BSB Error appears.

    The detailed error messages are bellow.

    Sequence Set Definition
    Starting a build...
    Validating inputs...Finished.
    Running the Bit Sequence Builder engine...Finished.

    Build failed. See the Bit Sequence Builder log output for details.


    Bit Sequence Builder
    ============================================================================
    Group# 1, rate# 0, Creating Seq Data...
    ============================================================================

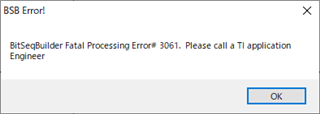

    BitSeqBuilder Fatal Processing Error# 3061. Please call a TI application Engineer

    ERROR occurred in processing block# 23

    Also, attached to this reply, please find the full log of Bit Sequence Builder.
    I look forward to your reply.

    There are no looks available for the group: Bright
There are no looks available for the group: Light Control 7
There are no looks available for the group: Light Control 7 (3Seg)

  BEGIN SEQ SELECTION PROCESS...
  ============================================================================
  Group# 0, CW rate# 2
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_14bp_1531

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_19bp_2052

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 0, CW rate# 1
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_15bp_1635

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_19bp_2052

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 0, CW rate# 0
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_18bp_1948

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_19bp_2052

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_11bp_1219

  ============================================================================
  Group# 1, CW rate# 2
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 1, CW rate# 1
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 1, CW rate# 0
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_11bp_1219

  ============================================================================
  Group# 2, CW rate# 2
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_8bp_868

  ============================================================================
  Group# 2, CW rate# 1
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_8bp_868

  ============================================================================
  Group# 2, CW rate# 0
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011


  BEGIN SEQ SELECTION PROCESS...
  ============================================================================
  Group# 0, CW rate# 2
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_14bp_1531

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_19bp_2052

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 0, CW rate# 1
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_15bp_1635

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_19bp_2052

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 0, CW rate# 0
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_18bp_1948

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_19bp_2052

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_11bp_1219

  ============================================================================
  Group# 1, CW rate# 2
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 1, CW rate# 1
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 1, CW rate# 0
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_11bp_1219

  ============================================================================
  Group# 2, CW rate# 2
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_8bp_868

  ============================================================================
  Group# 2, CW rate# 1
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_8bp_868

  ============================================================================
  Group# 2, CW rate# 0
  ============================================================================
  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_20bp_2156

  **Found Seq DB entry!  Seq ID = 2cc_442x_p6x_wxga_wuxga_720p_1080p_DMD_v5p1:2cc_9bp_1011

  ============================================================================
  Group# 0, rate# 0, Creating Seq Data...
  ============================================================================
    Sequence generation successful for Grp# 0, rate# 0.


  ============================================================================
  Group# 0, rate# 1, Creating Seq Data...
  ============================================================================
    Sequence generation successful for Grp# 0, rate# 1.


  ============================================================================
  Group# 0, rate# 2, Creating Seq Data...
  ============================================================================
    Sequence generation successful for Grp# 0, rate# 2.


  ============================================================================
  Group# 1, rate# 0, Creating Seq Data...
  ============================================================================
BitSeqBuilder Fatal Processing Error# 3061.  Please call a TI application Engineer

ERROR occurred in processing block# 23

    Best Regards,
    Hide

  • 0 in reply to Hidenori Katagiri
    TI__Genius 11565 points

    Hello Hide,

    Thank you for the information! I need to look into your issue and get more information about the sequence history from our team.

    Meanwhile, can you please share your Composer project as .exportedproject file to me? If you want, you can send me private message.

    Regards,

    Lori

  • 0 in reply to Lori Wang
    TI__Genius 11565 points

    Hello Hide,

    I'll go ahead close this forum because we have discussed in the private message.

    Please let us know if you have further question.

    Regards,

    Lori
