DLPDLCR3010EVM-G2: Lightcrafter vsync output

Julie Estivie

Hi,

I have a DLPDLCR3010EVM-G2 lightcrafter and I would like to know if it is possible to capture the vsync with an oscilloscope or any signal that would be triggered each time a frame is outputed by the light crafter?

Kind regards,

Julie

over 7 years ago

0 Navneet Singh over 7 years ago

TI__Expert 4610 points

Hello Julie,

You can get the schematic of this EVM - Display board and main board here:

You can see the signals which you want to probe like Vsync or others.

Let us know if you need any help.

Thanks,

Navneet

0 Navneet Singh over 7 years ago in reply to Navneet Singh

TI__Expert 4610 points

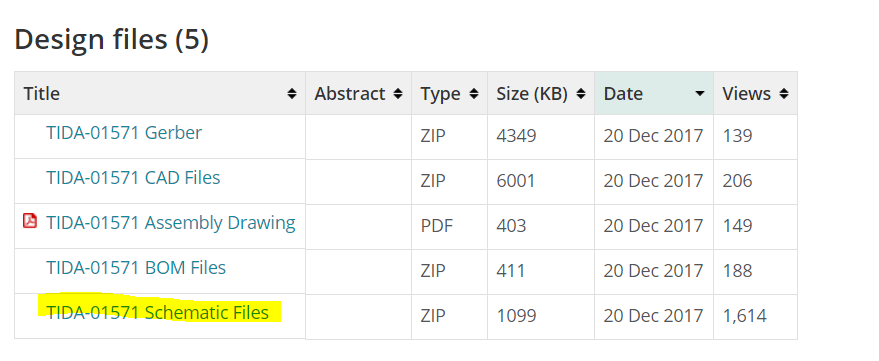

I missed the link in the above post. Here it is : www.ti.com/.../tida-01571

Thanks,
Nvaneet
