Pull down register for SLV_CTRL_PRST(V25)

Uryyy

Expert 1890 points

Part Number: DLPC900

Which is correct register's value? "4.7kΩ" in DLPLCR6500EVM schematic or "10kΩ" in DLPC900 datasheet?

0 ykc over 7 years ago

Hi Uryyy,

10k. Please look at schematics carefully. It also uses 10K.

-ykc

0 Uryyy over 7 years ago in reply to ykc

Expert 1890 points

Thank you ykc. I understood 10k is correct.

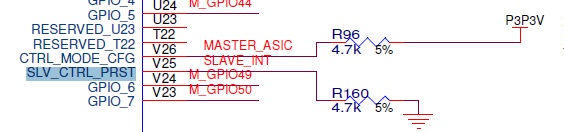

I confused the below schematic in version 2513756 revD.

0 ykc over 7 years ago in reply to Uryyy
