DLP3010EVM-LC: Write Flash Start Command

Hiroyasu Tazawa1

Part Number: DLP3010EVM-LC
Other Parts Discussed in Thread: DLPC3470, DLPC3478, DLPDLC-GUI

Hi,

Let me talk about DLP3010EVM-LC.

The following commands are executed when write a 1 or 8 bit image to flash with TI's tool.
The first 64 bytes look like header data, followed by image data.

EX)
Write Flash Start：
E1 　　　　　　　　[command]
50 41 54 4E 48 00 ... [64byte]
00 00 34 00 00 00 ... [data]

What is this 64byte ?
I see section 3.7.6 of DLPC3470 and DLPC3478 Software Programmer's Guide.

But I can not find this description.

Best Regards
Hiroyasu

over 4 years ago

0 Hirak Biswas over 4 years ago

TI__Genius 10925 points

Hi Hiroyasu,

Kindly wait for sometime and someone from our team will look into this shortly.
Thanks & Regards,
Hirak.

0 Azad over 4 years ago

TI__Expert 5485 points

Hi Hiroyasu,

Can you explain when these commands are executed? What action in the GUI led to these commands being executed?

Regards
Azad

0 Hiroyasu Tazawa1 over 4 years ago in reply to Azad

Guru 12350 points

Dear Azad

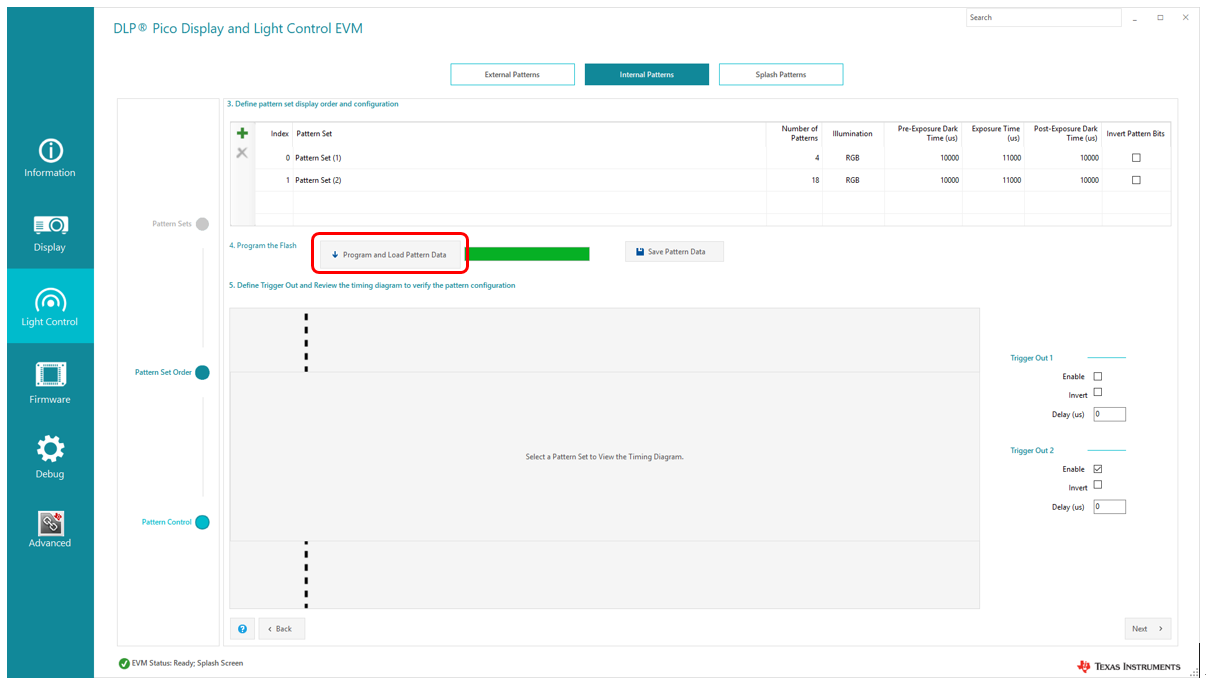

It is executed when We click "Program & Load Pattern Data".

Best Regards
Hiroyasu

0 Azad over 4 years ago in reply to Hiroyasu Tazawa1

TI__Expert 5485 points

Hi Hiroyasu,

Thanks for the clarification.

As you mentioned the first few bytes consists of the pattern block header and the pattern set header.

We are developing sample code which will allow users to generate their own pattern data without using the DLPDLC-GUI. This sample code will explain the structure of the pattern data block and how to generate it. This will be released on ti.com in a few weeks. Request you to please wait for this release.

Thank you for your patience.

Regards
Azad

0 Hiroyasu Tazawa1 over 4 years ago in reply to Azad

Guru 12350 points

Dear Azad

Thank you for your reply.
I understood. Could you tell me after you complete ?
and We want more discription of this command.

Thank you !

Best Regards
Hiroyasu

0 Hiroyasu Tazawa1 over 4 years ago in reply to Hiroyasu Tazawa1

Guru 12350 points

Dear Azad

We want description for detail of header before you complete if you are possible.

Best Regards
Hiroyasu
