DLPLCR6500EVM: Standby frozen - Controller /DMD Incompatible

Giorgio Maltese

Part Number: DLPLCR6500EVM

Hi everyone,

we just bought a DLPLCR6500EVM from DigiKey but we cannot make it work.

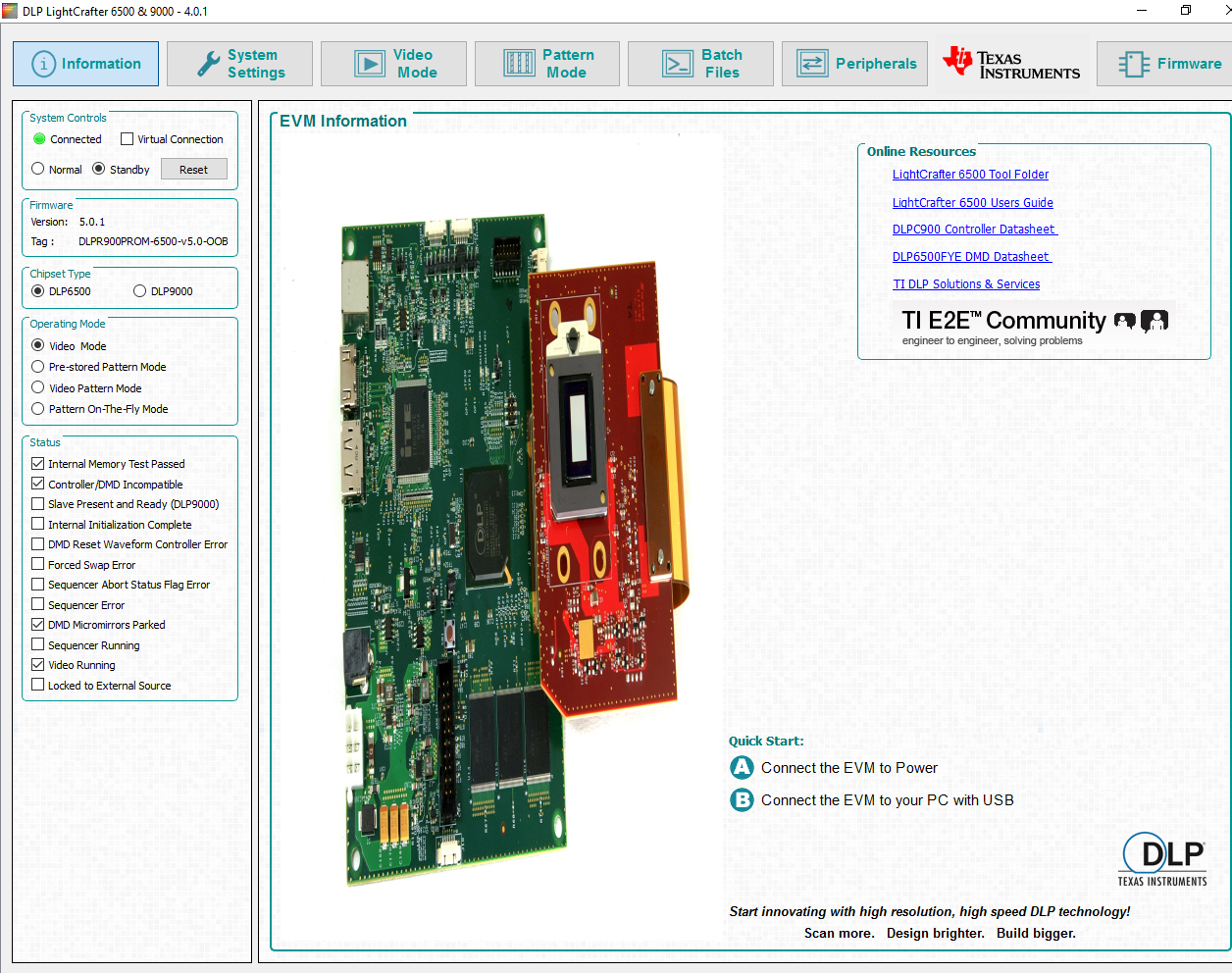

As you can see in the following picture, the board is in standby mode and cannot be switched to normal mode. Besides, the status error 'Controller /DMD Incompatible' is raised:

Following similar threads, we tried to:

- Test different USB cables

- Re-upload the firmware following these instructions (both with and without jumpers J3 and J11)

Any ideas on how to proceed?

Cheers,

Giorgio

over 4 years ago

0 Bhatta over 4 years ago

TI__Intellectual 1080 points

Hi Giorgio,

There is a debug print mechanism using UART. Could you please connect the rx of the UART receiver to tx pin (J6 pin no 2 on the board) and GND (pin 6) and send me the debug log. Baud rate to be set at 115200.

I am doubting the communication with the DMD failing which I can confirm with the log.

Thanks

Sachin

0 Giorgio Maltese over 4 years ago in reply to Bhatta

Prodigy 95 points

Hi Sachin,

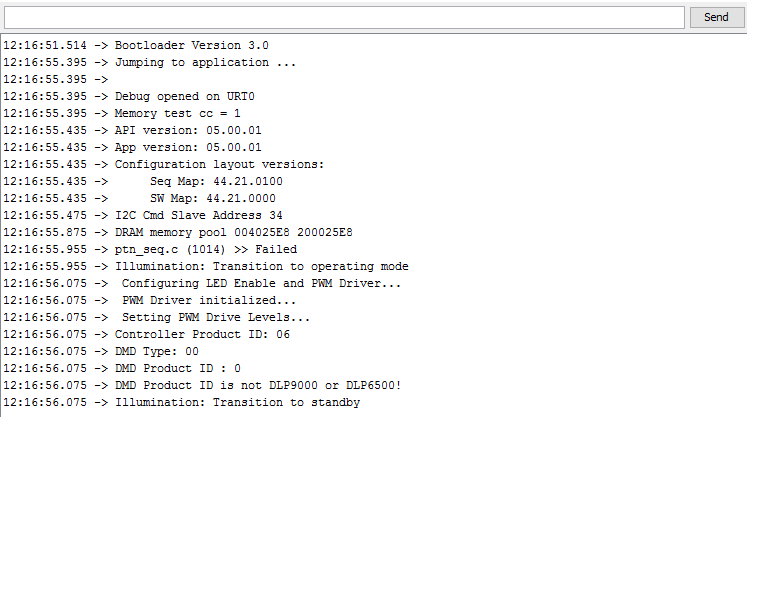

thanks for your quick reply. Here is the debug log:

Giorgio

0 Bhatta over 4 years ago in reply to Giorgio Maltese

TI__Intellectual 1080 points

Hi Giorgio,

Thank you for the debug log. As I can in the log, there is no communication error with the DMD.

One thing you can verify is to re-flash the firmware with the latest released version. If you get the same issue, I suggest you to return it to Digikey and get another one. The ID is fused into the DMD and it should provide the product ID which is confirmed in the software.

Thanks

Sachin

0 Bhatta over 4 years ago in reply to Bhatta

TI__Intellectual 1080 points

Hi Giorgio,

Any update regarding this?

Were you running the OOB application and getting the issue?

Thanks

Sachin

0 Giorgio Maltese over 4 years ago in reply to Bhatta

Prodigy 95 points

Hi Sachin,

we returned it to DigiKey and ordered a new one.

Thanks for your support and have a nice weekend,

Giorgio

0 Giorgio Maltese over 4 years ago in reply to Giorgio Maltese

Prodigy 95 points

Hi Sachin,

we have additional sensitive inquiries. Would it be possible to continue the conversation offline via email?

Cheers,

Giorgio

0 Bhatta over 4 years ago in reply to Giorgio Maltese

TI__Intellectual 1080 points

Giorgio,

Sure, Let us connect and we can start a conversation. I have sent a friend request

Thanks

Sachin
