SN65DSI83: Land pattern of SN65DSI83

Hi,

The packaging and land pattern are "as-is"  in the data sheet.

Thanks,

Zach

Hello,

user1502489 said:

What is the pad size of the package?

25 mm² 5 x 5

user1502489 said:

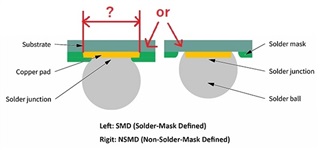

Also, what Pad type is it, SMD or NSMD?

NSMD is PREFERRED configuration but can be either see following for more info:

https://www.ti.com/lit/ml/mpbgak9/mpbgak9.pdf?ts=1666626839569&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FSN65DSI83

Thanks,

Zach

Hi,

Everything I have access to is here:

https://www.ti.com/lit/ml/mpbgak9/mpbgak9.pdf?ts=1666626839569&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FSN65DSI83

Thanks,
Zach

Hi,

In conjunction with the datasheet that I have shared.

Please review Section 2 of this application note: https://www.ti.com/lit/an/spraa99c/spraa99c.pdf to clarify the data sheet.

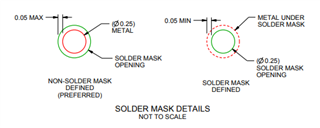

From Section 2 of the application note you will see the table below:

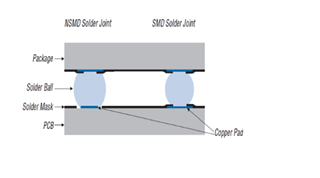

Additionally, this image will help clarify how the DSI83 package will mount onto the PCB.

Thanks,

Zach
