TCA9548A: I2C Switch application with different voltage

Ishwar Sharma

Part Number: TCA9548A

Hi Arya

I am just asking if I connect VCC with 3.3V then can we use Downstream ports (Slave I2C Ports) with 5V device (Pulled up with 5V) and 3.3V devices (Pulled up with 3.3V)

Upstream (Master I2C Port) port is connected with 3.3V device (Pulled up with 3.3V).

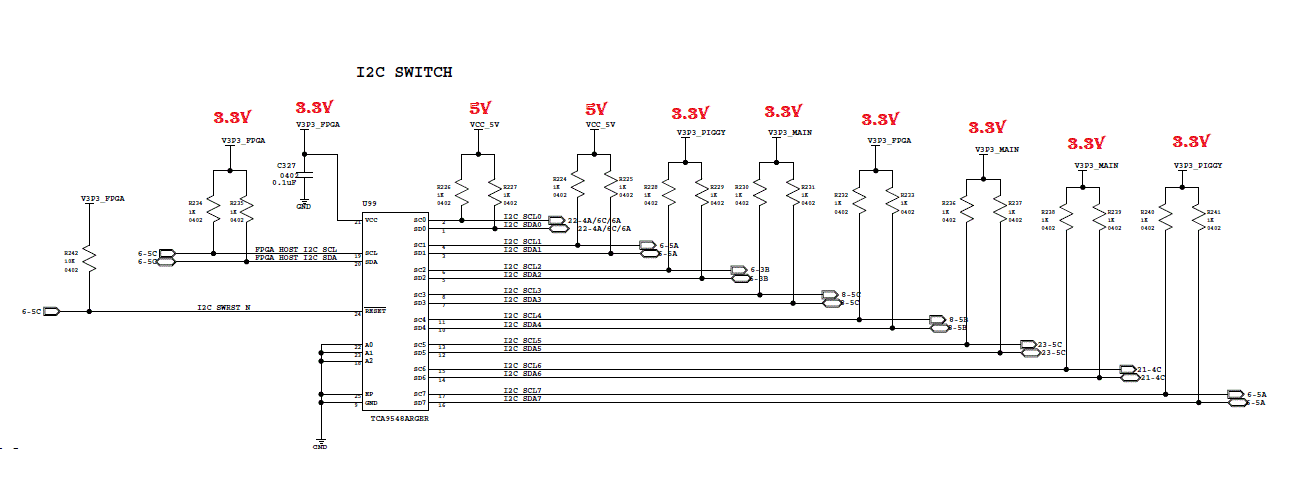

Pls see below sch image for reference.

Best regards

2 months ago

0 Arya Hussein 2 months ago

TI__Expert 5360 points

Hi Ishwar,

It's likely to work, but you still need to ensure you aren't exceeding voltage limits. Based on the schematic provided the voltage limit does not seem to be within spec.

Thank you,

Arya

0 Ishwar Sharma 2 months ago in reply to Arya Hussein

Prodigy 180 points

Hi Arya,

Thanks for update..

Can you pls confirm which voltage limit is not within spec according to your below statement

" Based on the schematic provided the voltage limit does not seem to be within spec."

Best regards

0 Arya Hussein 2 months ago in reply to Ishwar Sharma

TI__Expert 5360 points

Hi Ishwar,

My mistake I meant to put "is within specification"

Thank you,

Arya
