TPD4S012: Pin 1 identifier shape/dimension

Katsuhiko Kaizawa

Intellectual 2045 points

Part Number: TPD4S012

Hello support team,

My customer needs to know the dimension of pin 1 of the TPD4S012DRYR.

The datasheet mentioned “Pin 1 Identifier, Pin shape will be modified per device”, but there is no detailed information for actual shape/dimension of the pin 1.

Could you please give me those information?

Best regards,

Kaizawa

over 6 years ago

0 Cameron Phillips over 6 years ago

TI__Genius 12410 points

Kaizawa-san,

The next page shows the landing pattern that the customer should have for the layout. The pad should be the same even though pin 1 is not exactly a rectangle.

Regards,
Cameron

0 Katsuhiko Kaizawa over 6 years ago in reply to Cameron Phillips

TI__Intellectual 2045 points

Cameron-san,

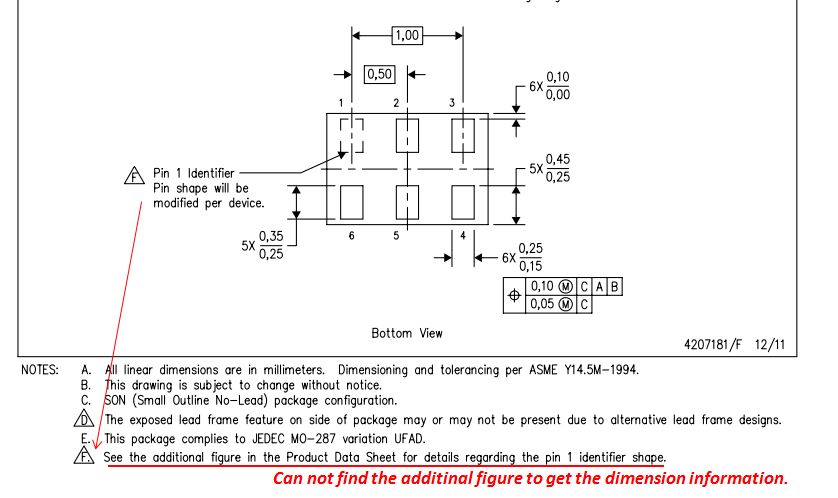

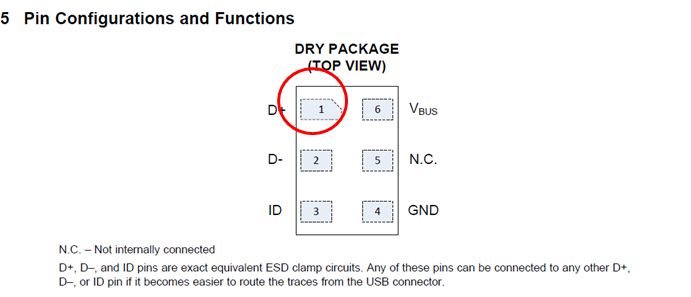

Thank you for the answer. I understood that the pin 1 is not a rectancgle but its X-Y demension is same as the other pins. Also, the figure in the pin configurations at page 3 of the datasheet is only image.

Best regards,
Kaizawa

0 Cameron Phillips over 6 years ago in reply to Katsuhiko Kaizawa

TI__Genius 12410 points

Kaizawa-san,

I meant the page after the one that you took a picture of.

The footprint is the same even though pin 1 is differently shaped.

Regards,

Cameron
