Hello,

I have board with DS90CR486 x 2 on it connect to FPGA .

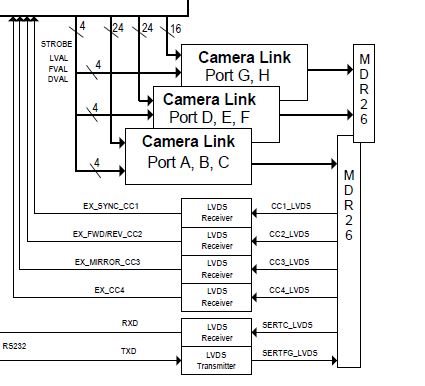

I want to connect to it camera link camera with full Full Configuration Camera Link as following :

can I connect it to the DS90CR486 board ? if yes how it can be done ?

Thanks,

Shai

HW team leader- Orbotech

over 6 years ago

0 Ikechukwu Anyiam over 6 years ago

TI__Mastermind 35130 points

Hi Shai,

You can reference this app note for proper connections for the pixel mapping: www.ti.com/.../snla014a.pdf

LVAL=HSYNC
FVAL=VSYNC
DVAL = enable

Please also ensure that the parallel-IO voltage requirements and the pixel clock frequencies are compatible.

Regards,
I.K.

0 Shai Shmuel over 6 years ago in reply to Ikechukwu Anyiam

Prodigy 40 points

Hello ,

First thanks for your answer but I do not think I understand it .

this mean I can connect full spec camera link with 12 LVDSs that each 4 converted to 24bit to 2 DS90CR486 ?

if yes what I am doing with the 4 left LVDS (each DS90CR486 has 8 LVDS convert to 48 bit ) ?

please advise,

Thanks,

Shai

0 Ikechukwu Anyiam over 6 years ago in reply to Shai Shmuel

TI__Mastermind 35130 points

Hi Shai,

I am not familiar with camera link but if you are looking to deserialize 12 LVDS lanes to 96 bits, then 2 DS90CR486's can do this, but you will need to check if the LVDS interfaces are compatible (voltage swing, skew, etc.).

Any unused LVDS deserializer inputs can be left open (floating) because the internal failsafe will pull the input to a valid state.

You can also reference this app note for design guidelines: www.ti.com/.../snla167.pdf

Regards,
I.K.
