PCA9306-Q1: Schematic Review

Jared Becker

Part Number: PCA9306-Q1
Other Parts Discussed in Thread: PCA9306, USB2ANY

Hi Team,

I am trying to interface a USB2ANY device to an IC that has 1.8V logic. The USB2ANY device has 3.3V logic. Therefore, I am using the PCA9306 to translate between the two devices.

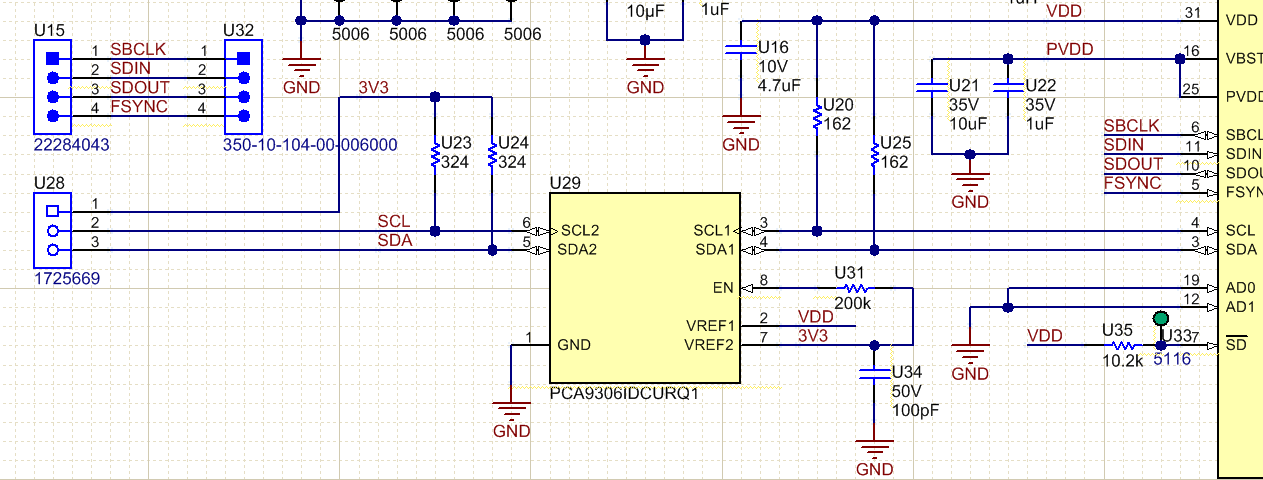

Can you please review the schematic below? VDD is 1.8V

Thank you!

Jared

over 4 years ago

0 BOBBY over 4 years ago

TI__Mastermind 49110 points

Hey Jared,

Pin 7 and pin 8 of the device are not properly connected for the level translation configuration of the device. Pin 7 and 8 should be shorted together and the 200k resistor should come between Vref2 and the 3.3V rail.

Thanks,

-Bobby

0 Jared Becker over 4 years ago in reply to BOBBY

TI__Genius 11495 points

Hi Bobby,

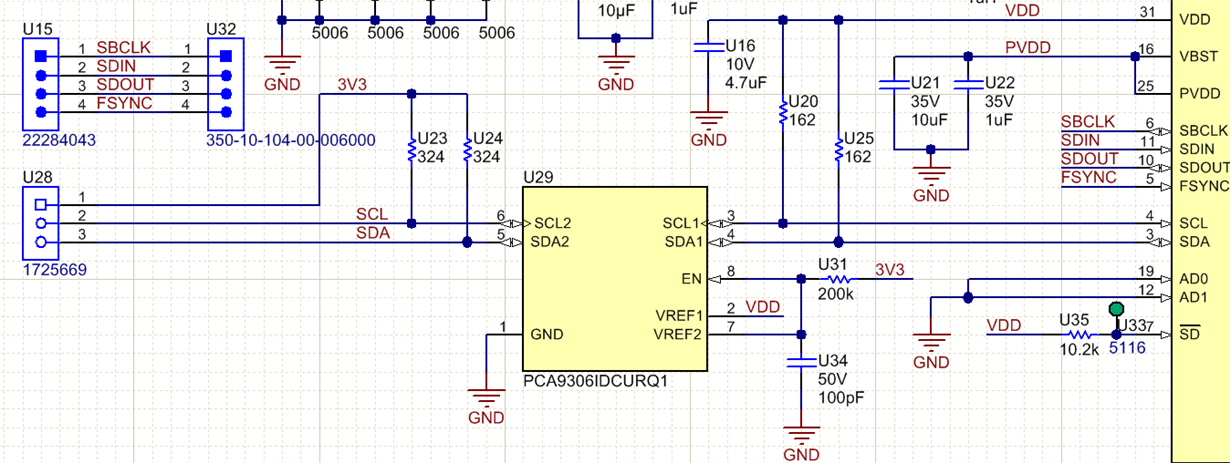

Great catch! Please see revised schematic below. If there are any additional changes, please let me know. Thanks!

-Jared

0 BOBBY over 4 years ago in reply to Jared Becker

TI__Mastermind 49110 points

Hey Jared,

New schematic looks good. I don't see any issues.

-Bobby
