USB-CTM-MINIDK-EVM: The behavior of device reset after power up

Yusuke Mukuno

Expert 7395 points

Part Number: USB-CTM-MINIDK-EVM

hi Expert,

My customer have a issue of device reset after power up with USB-CTM-MINIDK-EVM.

Could you please refer the attached video.

Question1

Could you please let me know the reason of this behavior?

This video is taken when the following connection.

- Connect Galaxy S8

- Connect PD charger

- Connect HDMI display

Also, It was occurred with PD charger only.

Question2

Customer think, they should update firmware. Is it correct?

If yes, could you please give me know the latest firmware?

Question3

If firmware is available, Can the customer modify this software as reference for their production?

Question4

What is USB Type-C Enabler Board descripted in the USB Type-C Mini Dock Quick-Start Guide? TUSB1064EVM?

Thanks

Muk

over 4 years ago

0 Brian Zhou over 4 years ago

TI__Guru** 104375 points

for question 1, what behavior you saw is not right?

0 Yusuke Mukuno over 4 years ago in reply to Brian Zhou

TI__Expert 7395 points

Hi Zhou-san,

After power up and turning on the startup LED, the EVM is reset immediately.

Thnaks

Muk

0 Brian Zhou over 4 years ago in reply to Yusuke Mukuno

TI__Guru** 104375 points

pls look at below link for reply from Lee and see if help

e2e.ti.com/.../725128

0 Yusuke Mukuno over 4 years ago in reply to Brian Zhou

TI__Expert 7395 points

Hi Brian-san,

Thank you for your answer.

From your informed E2E---------------------

Hi Andras, could you try the project file attached? You can re-flash the the SPI ROM on TIDA-01234 instead of live register update using this project file configuration.

------------------------------------------

Where is the project file attached?

This session is idea for Question1 and Question2.

Could you please also support the following questions?

Question3

If firmware is available, Can the customer modify this software as reference for their production?

Question4

What is USB Type-C Enabler Board descripted in the USB Type-C Mini Dock Quick-Start Guide? TUSB1064EVM?

Thanks

Muk

0 Yusuke Mukuno over 4 years ago in reply to Yusuke Mukuno

TI__Expert 7395 points

Hi Brian-san,

Could you please help this questions?

Muk

0 Adam Mc Gaffin over 4 years ago in reply to Yusuke Mukuno

TI__Mastermind 27495 points

Hello Mukuno-san,

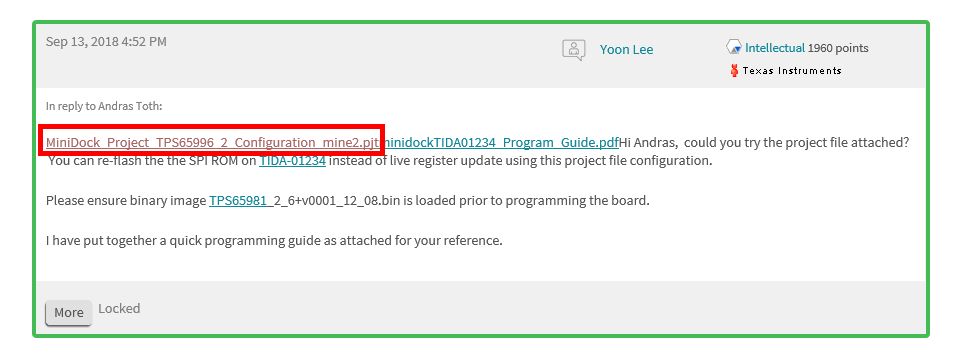

The highlighted red box is what to click for the project file associated with the other E2E thread.

Question 1

Its difficult to identify exactly why this is happening.

Question 2

Updating the firmware could be a potential reason. Use the following link to download the latest configuration tool, and then load the project into the tool using the option "Import setting from project" https://www.ti.com/tool/TPS6598X-CONFIG

Question 3

Yes, using the configuration tool, the customer can use the existing project as a reference point and then adjust it according to their needs.

Question 4

Yes, that refers to the following board http://www.ti.com/lit/ug/sllu255/sllu255.pdf
