DS90UB948-Q1EVM: How to measure the CML output through 947-948

Part Number: DS90UB948-Q1EVM

Hi Team,

I would like to measure the CML output and here has an 947 and an 948 EVM at hand. (connect external PCLK = 150MHz and use single pixel mode and dual link and coax cable)

I set 0x56[3]=1 and 0x57=0x02. Questions is showing as below.

1. Do I connect a 49.9ohm in R48 and R49?

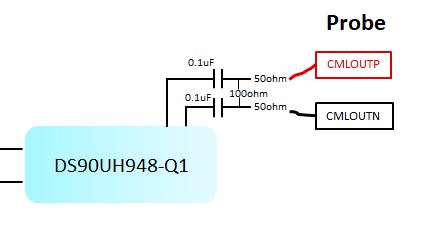

2. Do I use 100-Ω termination resistor between pins for channel monitoring?

3. Do I need to check which pin configuration?
