SN65DSI84-Q1: How to configure I84 by DSI tuner?

Ansel Song

Part Number: SN65DSI84-Q1
Other Parts Discussed in Thread: DSI-TUNER

Hi team,

My customer is using a display board which has MIPI DSI to LVDS bridge (SN65DSI84) to give LVDS display. They need to bring up a dual channel LVDS display (COG-CHSDT002-01).

We have configured panel inputs as shown below and DSI inputs according to the datasheet to generate the CSR values. But the display is not working.

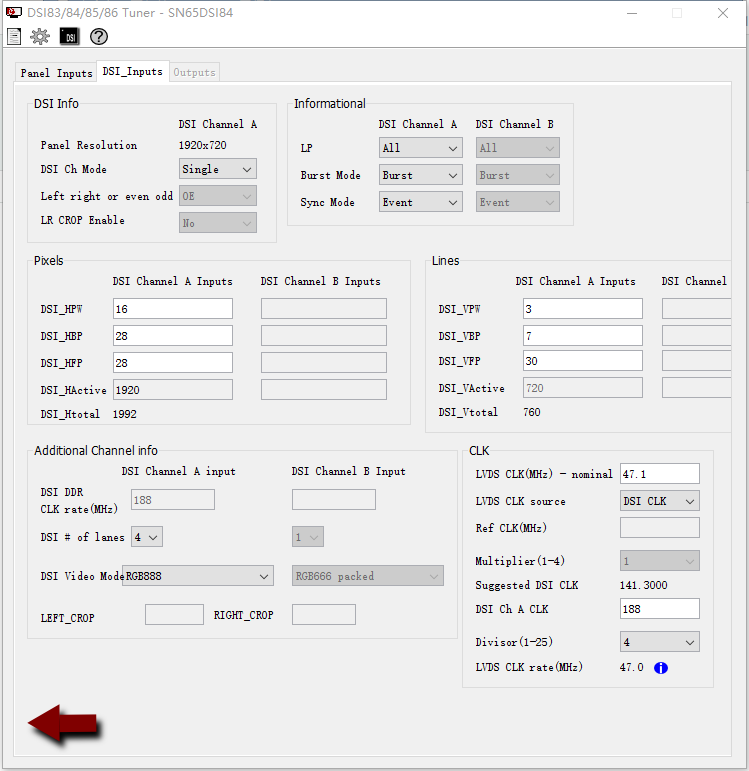

The DSI tuner configurations as the below for your reference.

Could you help to check the configurations? Thank you.

In addition, customer feedback that the DSI input is configured as below, and it works, but it is very confused for me.

Best regards,

Yu Song

over 3 years ago

0 Ikechukwu Anyiam over 3 years ago

TI__Mastermind 35130 points

Hi Yu,

Please reference this FAQ: https://e2e.ti.com/support/interface/f/138/t/918890

Regards,

I.K.

0 Ansel Song over 3 years ago in reply to Ikechukwu Anyiam

TI__Expert 3890 points

Hi I.K,

Actually, I have read this FAQ before, and I also follow your guidance.

However, customer feedback cannot be displayed according to this configuration. The specific configuration is shown in the question. And change DSI Ch A CLK to 188, Divisor to 4 to display normally. Calculate according to the guide: 47.1*24*2/(2*4) = 282.6 instead of 188.

Best regards,

0 Ikechukwu Anyiam over 3 years ago in reply to Ansel Song

TI__Mastermind 35130 points

Hi Ansel,

The configuration you have with DSI ChA CLK set to 282.6 MHz is correct. However, the customer needs to ensure that the output from their DSI source matches what is put in DSI_Inputs in the DSI-Tuner (HPW, HBP, HFP, VPW, VBP, VFP, HActive, VActive, clk frequency, etc.).

Regards,

I.K.

0 Ansel Song over 3 years ago in reply to Ikechukwu Anyiam

TI__Expert 3890 points

Hi I.K.,

You can refer to the below table for display parameters including PCLK and blanking. It is completely set according to the data in the table, as shown in the first picture. Please help to check what issue for setting, thank you.

Best regards,

0 Ikechukwu Anyiam over 3 years ago in reply to Ansel Song

TI__Mastermind 35130 points

Hi Yu,

Check the DSI source output settings, not the LVDS settings. I.e. check #2 and #4 on this FAQ: https://e2e.ti.com/support/interface/f/138/t/852871

Regards,

I.K.

0 Ansel Song over 3 years ago in reply to Ikechukwu Anyiam

TI__Expert 3890 points

Hi I.K,

The DSI related configuration has been confirmed.

In addition, in addition to the registers automatically configured by DSI-tuner, do we need to manually change other registers?

Customer feedback is now displayed, but the display will be ghosted as shown below. Then change register 0x1A=0x03 to 0x1A=0x43. show normaly.

Best regards,

0 Ikechukwu Anyiam over 3 years ago in reply to Ansel Song

TI__Mastermind 35130 points

Yu,

Please refer to the register descriptions. This means they either mixed up CHA and CHB routing or the even/odd mapping from the DSI source is swapped.

Regards,

I.K.
