DP83867IRPAP-EVM: PHY configuration via USB-2-MDIO SW Tool

Hi Itoh,

What microcontroller is the customer using? Is it one of the MSP430 launchpads or a different device?

Regards,

Adrian Kam

Hi,

Thanks for your reply !

We are using MSP-EXP430G2ET (MSP430 LaunchPad).

Regards,

mishima

Hi Mishima,

I want to confirm a few things. Have you gone through the document linked below? Are the connections correct? Has the microcontroller been flashed and you see the LEDs? Is the firmware the latest version?

https://www.ti.com/lit/ug/snlu197/snlu197.pdf

Regards,

Adrian Kam

Hi Adrian,

Thanks for your reply !

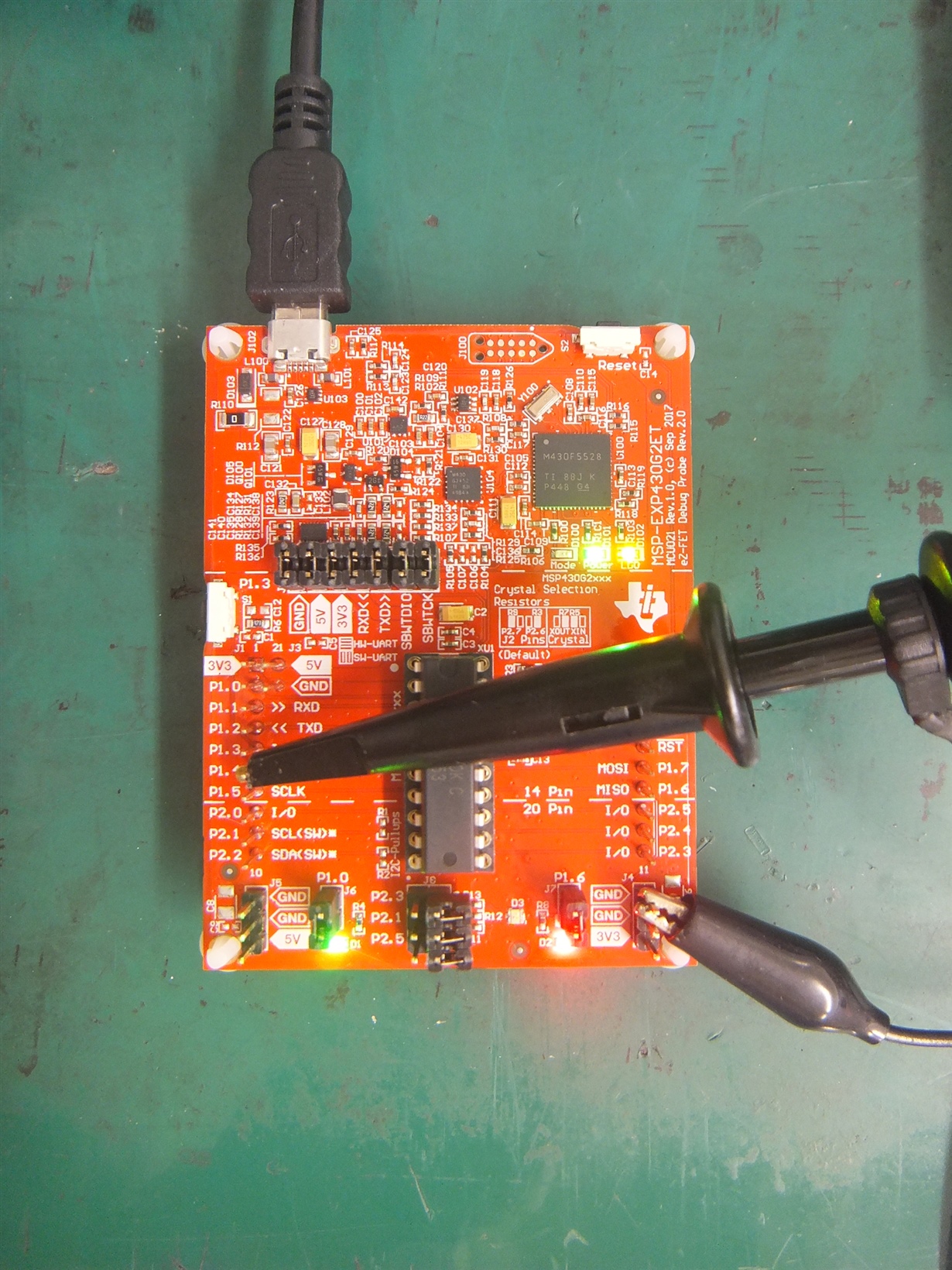

The tested configuration is shown below.
1) Connect the probe to MDC (P1.4)
2) Execute "Find PHY ID" with USB-2-MDIO tool

I couldn't get the waveform with an oscilloscope.
It's not connected to the PHY's MDC, but I think it will give a signal.

The version of MSP Flasher is v1.3.20
USB_2_MDIO_G2.hex is the 2014/12/24 version

Regards,

mishima

Hi Mishima,

Do you see more than one COM port you can connect to? There might be up to three serial COM ports that appear when you connect the USB cable. Have you tried connecting to each COM port and seeing if any of them work?

Regards,

Adrian Kam

Hi Adrian,

Thanks for your reply !

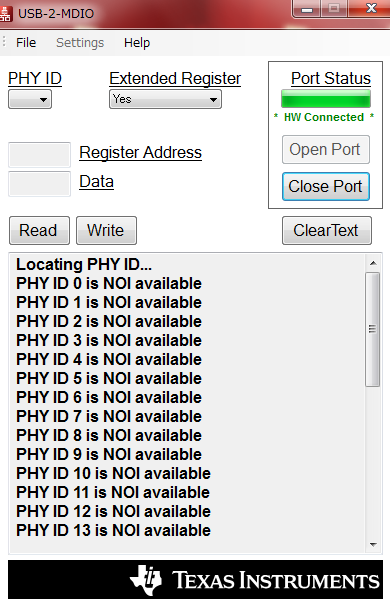

There are two COM ports as shown below.
I've tried both, but the results are the same.

Regards,

mishima

Hi Mishima,

Can you try using the Uniflash software to flash the MSP instead? Below is a link to the software:

https://www.ti.com/tool/UNIFLASH

Regards,

Adrian Kam

Hi Adrian,

Thanks for your reply !

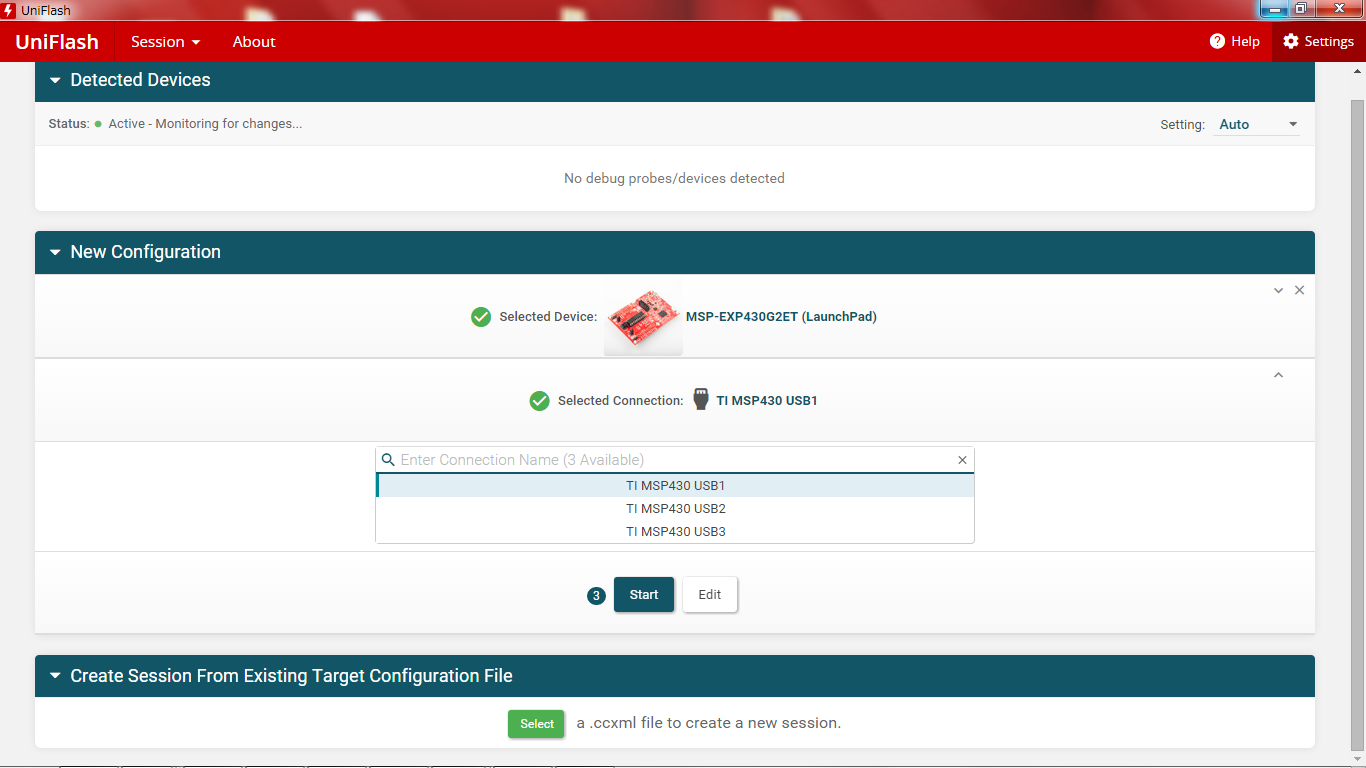

UniFlash

I think usb connection only?

Please tell me how to use UNIFLASH.

Regards,

mishima
