TMDS181: EyeScan Tool - Option setting in EyeScan tab

Guru 19775 points
Part Number: TMDS181

Hi Team,

Could you please tell us the detail of the followings parameters in the EyeScan Tool ?

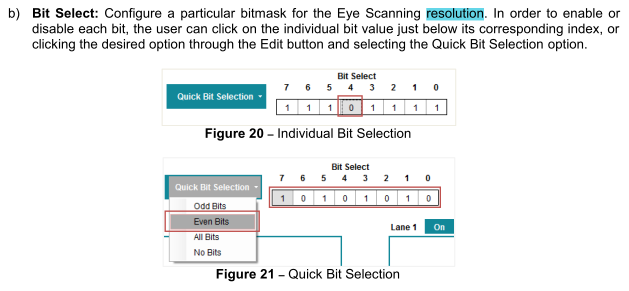

Q1). What is "Bit Select" option for EyeScan and which register is this ? This seems to affect eye quality.

Q2). What is the object of setting this bit and when do you need to change this value ?

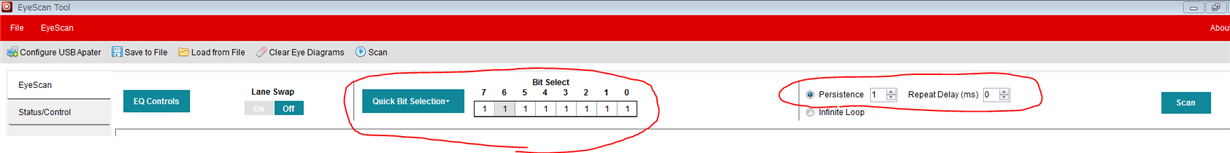

Q3). I believe persistence means, how many eyes you would like to over write in the eye scan function. Which register is this for "persistence" and "Repeat Delay" ?
